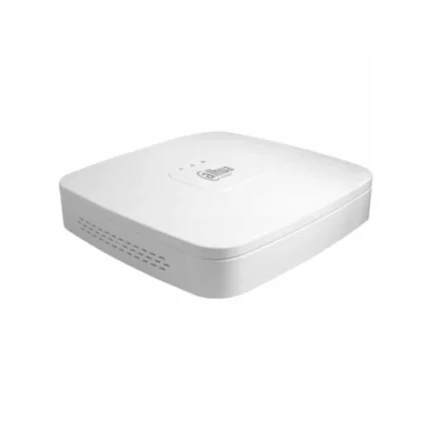

The Dahua N52B3P is a robust and high-performance 4K 16-channel 1U ePoE NVR designed for advanced surveillance solutions. This Network Video Recorder offers a versatile range of features, making it an ideal choice for security applications requiring exceptional video clarity and reliability. Perfect for its plug-and-play setup, the Dahua N52B3P ensures seamless integration into your current security system.
Quick Spec
| Video Resolution | 4K |
| Channels | 16 |
| Form Factor | 1U |
| ePoE Support | Yes |
| Storage Capacity | Up to 10TB |
Product Features
- Supports 4K resolution recording for ultimate video clarity
- 16 channel inputs with intuitive playback options
- 1U rack mountable design for efficient space usage
- Enhanced Power over Ethernet (ePoE) technology for extended range
- Supports H.265 video compression for optimized storage
Product Applications
- Office Buildings: Ensure security and monitor activities within large office environments.
- Retail Stores: Provide a comprehensive surveillance system for loss prevention and security management.
- Warehouses: Maintain a high level of security and monitor goods and personnel movements.
Supported Options
| External Storage | Dahua PFA136 |
| PoE Switch | Dahua DH-PFS4218-16ET-240 |
| Keyboard Controller | Dahua NKB1000 |
Compare to Similar Items
| Model | Differences |
| Dahua N52B5P | 20 channels, 2U form factor |
| Dahua N42B3P | 4K, 8 channels, no ePoE support |
| Dahua N41B3P | 1080p resolution, 8 channels |
Get more information
For further information about the Dahua N52B3P and its pricing, please contact us via Live Chat or at sales@router-switch.com. Check ‘Dahua N52B3P’ price and ‘N52B3P datasheet’, buy ‘Dahua N52B3P ePoE NVR’ with the best price and fast shipping. Free Live Chat is supported.
Dahua N52B3P Specification
N52B3P Specifications |
|
| Brand | Dahua |
| Model | N52B3P |
| Video Resolution | 4K |
| Channels | 16 |
| Form Factor | 1U |
| ePoE | Yes |
| Max Incoming Bandwidth | 320 Mbps |
| Max Outgoing Bandwidth | 256 Mbps |
| Decoding Capacity | 2 channels of 4K, 16 channels of 1080p |
| Compression | H.265+/H.265/H.264+/H.264 |
| Audio Input/Output | 1/1 |
| Alarm Input/Output | 4/2 |
| Interfaces | 1 HDMI, 1 VGA |
| Internal HDDs | 2 SATA III ports, up to 10 TB capacity for each HDD |
| USB Ports | 2 (1 USB 2.0, 1 USB 3.0) |
| Ethernet Ports | 1 (Gigabit) |
| Power Supply | DC12V/4A |
| Power Consumption | <= 12.4W (without HDD) |
| Operating Temperature | -10��C to +55��C (+14��F to +131��F) |
| Dimensions (W x D x H) | 375mm �� 281.5mm �� 56mm (14.76″ x 11.09″ x 2.20″) |
| Net Weight | 2.85 kg (6.28 lb) |
