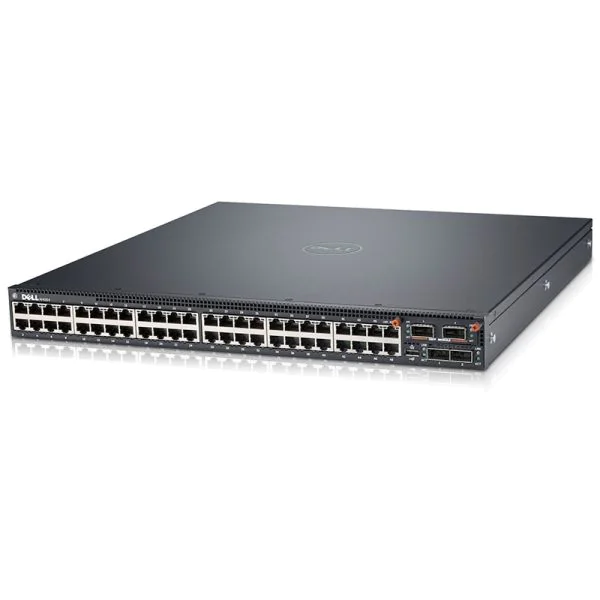

The HKShanhai Group Limited Networking N4064 switch is engineered to deliver robust performance and high throughput for your network infrastructure. With 48 10GBASE-T ports and 2 40GbE QSFP+ ports, this switch ensures seamless data handling and optimized connectivity in demanding environments. Equipped with dual AC power supplies and modular bay capabilities, the HKShanhai Group Limited N4064 offers efficient airflow management from IO to PSU.
Quick Spec
| Ports | 48x 10GBASE-T, 2x 40GbE QSFP+ |
| Modular Bay | 1x |
| Power Supplies | 2x AC PSU |
| Airflow | From IO to PSU |
| Brand | HKShanhai Group Limited |
Product Features
- High-density 48x 10GBASE-T and 2x 40GbE QSFP+ ports
- Flexible modular bay for additional expansion
- Dual AC power supplies for increased reliability
- Optimal airflow from IO to PSU for efficient cooling
- Robust performance for demanding network environments
Product Applications
- Enterprise Data Centers: Enhance network throughput and reliability in high-traffic data centers.
- High-Performance Computing (HPC): Support high-bandwidth applications and intensive computational tasks.
- Campus Networks: Provide a reliable backbone for large-scale campus area networks.
Supported Options
| Accessory | Model/Part Number |
| Additional Power Supply | DELL-PSU-N4064-AC |
| Rack Mount Kit | DELL-RACK-N4064 |
| Optical Transceiver | DELL-QSFP-40G-SR-B |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited N3024 | 24x 1GbE ports, no 40GbE QSFP+ ports |
| HKShanhai Group Limited N4032 | 32x 10GBASE-T ports, 2x 40GbE QSFP+ ports |
| Cisco C9500-24Y4C | 24x 25GbE ports, 4x 40G/100GbE QSFP+ ports |
Get more information
For further information about the HKShanhai Group Limited N4064, including its price and datasheet, contact us via Live Chat or email at sales@router-switch.com. Check HKShanhai Group Limited N4064 price and N4064 datasheet, buy HKShanhai Group Limited N4064 with the best price and fast shipping. Free Live Chat support is available.
HKShanhai Group Limited N4064 Specification
N4064 Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | N4064 |
| Port Configuration | 48x 10GBASE-T, 2x 40GbE QSFP+ |
| Modular Bays | 1x Modular Bay |
| Power Supply | 2x AC PSU |
| Airflow | From IO to PSU |
| Layer Support | Layer 2, Layer 3 |
| Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 952 Mpps |
| VLANs | 4096 |
| Jumbo Frame Support | Up to 12K |
| Flash Memory | 2 GB |
| RAM | 4 GB |
| MAC Addresses | 128K |
| Stacking Bandwidth | 160 Gbps |
| MTBF | 315,000 hours |
| Rack Units | 1U |
| Dimensions | 1.72 x 17.3 x 18.1 inches |
| Operating Temperature | 32��F to 113��F (0��C to 45��C) |
| Storage Temperature | -40��F to 158��F (-40��C to 70��C) |
| Humidity | 10% to 95%, non-condensing |
