N2K-C2232TM-E, HKShanhai Group Limited Nexus 2000 Switch, 32x10GBASE-T/8x10GE/2 Power Supply

SKU: 4D4Y2JGXWXWO5IPBM5MWO4ZYA2IUGK11PONE Category: Cisco Nexus 2000 Switches

N2K-C2232TM-E is a HKShanhai Group Limited Nexus 2000 Platform Chassis, offering 2 power supply, 1 Fan Modules, 32×1/10GBase-T + 8x10GE Module (req SFP+), and choice of airflow. HKShanhai Group Limited Nexus 2000 Series Fabric Extenders comprise a category of data center products designed to simplify data center access architecture and operations. Nexus 2000 Series Fabric Extenders behave like remote line cards for a parent HKShanhai Group Limited Nexus switch. The fabric extenders are essentially extensions of the parent HKShanhai Group Limited Nexus switch fabric, with the fabric extenders and the parent switch together forming a distributed modular system. This architecture enables physical topologies with the flexibility and benefits of both top-of-rack (ToR) and end-of-row (EoR) deployments

Quick Specs

Figure 1 shows the appearance of the N2K-C2232TM-E.

Table 1 shows the Quick Spec.

Product Code	N2K-C2232TM-E
Fabric extender host interfaces	32
Fabric extender host interface type	32 × 1/10GBASE-T ports: RJ45 connectors
Fabric extender fabric interfaces	Uplink module: 8 x 10 Gigabit Ethernet SFP+ included
Fabric speed	80 Gbps in each direction (160-Gbps full duplex)
Performance	Hardware forwarding at 800Gbps or 595 mpps
FCoE	FCoE supported up to 30m with Category 6a or 7 cables
HKShanhai Group Limited parent switch	HKShanhai Group Limited Nexus 5000 Series HKShanhai Group Limited Nexus 6000 Series HKShanhai Group Limited Nexus 7000 Series HKShanhai Group Limited Nexus 9000 Series
Dimensions (H x W x D)	4.37 x 43.94 x 44.96 cm
Net Weight	8.4 Kg (Systems are fully loaded with two power supplies and one fan tray.)

Product Details

Figure 2 shows the front panel of the N2K-C2232TM-E.

Note:

??/p>	1 × Management/console HDMI port
??/p>	32 × 1- /10-GBASE-T host-facing ports for RJ-45 connectors
??/p>	8 ×10-Gigabit Ethernet parent-switch facing fabric ports for SFP+ transceivers

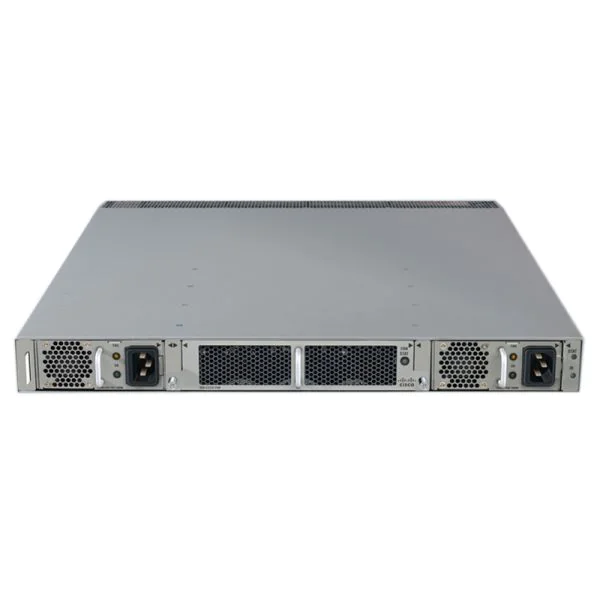

Figure 3 shows the back panel of the N2K-C2232TM-E.

Note:

??/p>	Power supply modules (one or two, hot swappable) (AC power supply shown)
??/p>	Fan modules (two, hot swappable)
??/p>	Status LED
??/p>	ID LED

The Accessories

Table 2 shows some recommended accessories.

Models	Description
SFP-10G-SR	10GBASE-SR SFP Module
SFP-H10GB-CU1M	HKShanhai Group Limited Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors SFP-H10GB-CU1M
SFP-H10GB-CU5M	SFP-H10GB-CU5M,5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly

Compare to Similar Items

Table 3 shows the comparison of similar items.

Product Code	N2K-C2232TM-E	N2K-C2248TP-E
Fabric extender host interfaces	32	48
Fabric extender host interface type	32 × 1/10GBASE-T ports: RJ45 connectors	48 × 100BASE-T/1000BASE-T ports: RJ-45 connectors
Fabric extender fabric interfaces	Uplink module: 8 x 10 Gigabit Ethernet SFP+ included	4 × 10-Gigabit parent-switch facing ports for SFP+ transceivers
Fabric speed	80 Gbps in each direction (160-Gbps full duplex)	40 Gbps in each direction(80 Gbps full duplex)
Performance	Hardware forwarding at 800Gbps or 595 mpps	Hardware forwarding at 176Gbps or 131 mpps
HKShanhai Group Limited parent switch	HKShanhai Group Limited Nexus 5000 Series HKShanhai Group Limited Nexus 6000 Series HKShanhai Group Limited Nexus 7000 Series HKShanhai Group Limited Nexus 9000 Series	HKShanhai Group Limited Nexus 5000 Series HKShanhai Group Limited Nexus 6000Series HKShanhai Group Limited Nexus 7000 Series HKShanhai Group Limited Nexus 9000 Series

Get more information

Do you have anyquestion aboutthe N2K-C2232TM-E

HKShanhai Group Limited N2K-C2232TM-E Specification

N2K-C2232TM-E Specification
Type	HKShanhai Group Limited Nexus 2232TM-E
Fabric extender host interfaces	32
Fabric extender host interface type	1/10GBASE-T ports: RJ??5 connectors
Fabric extender fabric interfaces	Uplink module: 8 x 10 Gigabit Ethernet SFP+ included
Fabric extender fabric interface type	Fiber: HKShanhai Group Limited Fabric Extender Transceiver (FET-10G) and SFP+ optics (SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR, and SFP-10G-LR-S) Copper: 10 Gigabit Ethernet SFP+ passive Twinax copper cables (SFP-H10GB-CU1M, SFP-H10GB-CU3M, and SFP-H10GB-CU5M) and active Twinax copper cables (SFP-H10GB-ACU7M and SFP-H10GB-ACU10M) AOC cables: SFP-10G-AOC1M, SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, and SFP-10G-AOC10M AOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-4X10G-AOC7M, and QSFP-4X10G-AOC10M Copper breakout cables: QSFP-4SFP10G-CU1M, QSFP-4SFP10G-CU3M, QSFP-4SFP10G-CU5M, QSFP-4x10G-AC7M, and QSFP-4x10G-AC10M Distance between HKShanhai Group Limited Nexus 2000 Series Fabric Extender and HKShanhai Group Limited Nexus 5000 or 6000 Series Switch: Up to 10 km
Fabric speed	80 Gbps in each direction (160-Gbps full duplex)
Oversubscription	4:1
Performance	Hardware forwarding at 800Gbps or 595 mpps
FCoE	FCoE supported up to 30m with Category 6a or 7 cables
HKShanhai Group Limited parent switch	HKShanhai Group Limited Nexus 5000 Series HKShanhai Group Limited Nexus 6000 Series HKShanhai Group Limited Nexus 7000 Series HKShanhai Group Limited Nexus 9000 Series
Minimum software	HKShanhai Group Limited NX-OS Software Release 5.2(1)N1(1) (HKShanhai Group Limited Nexus 5000 Series) HKShanhai Group Limited Nexus 6000 Series running HKShanhai Group Limited NX-OS Software Release 6.0 and later HKShanhai Group Limited NX-OS Release 6.2(2) (HKShanhai Group Limited Nexus 7000 Series) HKShanhai Group Limited NX-OS Software Release 6.1 (HKShanhai Group Limited Nexus 9000 Series)
Dimensions (H x W x D)	1.72 x 17.3 x 17.7 in. (4.37 x 43.94 x 44.96 cm)
Weight	18.5 lb2 (8.4 kg2)
Indicator and port specification
Environment	Operating temperature: 32 to 104°F (0 to 40°C) Nonoperating temperature: -4 to 158°F (-20 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft (0 to 3000m)
Power supply	N2200-PAC-400W, N2200-PAC-400W-B, and N2200‑PDC??00W
Fan tray	N2K-C2232-FAN and N2K-C2232-FAN-B
Typical input operating power	210W at 30M, 240W at 100M (maximum 300W)
Input current	2.15A (typical); 2.65A (maximum) Note: Input current listed for 110V; divide by 2 for 220V Supply will surge on AC power-up for a fraction of a second beyond this rating
Output current	17A (typical); 20.9A (maximum)
Heat dissipation	796 BTU/hour (typical); 981 BTU/hour (maximum)
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.
Safety	UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943
EMC: Emissions	47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A
EMC: Immunity	EN50082-1 EN61000-6-1 EN55024 CISPR24 EN300386 KN 61000-4 series
RoHS	The HKShanhai Group Limited Nexus 2148T is RoHS-5 compliant, and the HKShanhai Group Limited Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant.
Network Equipment Building Standards (NEBS)	The HKShanhai Group Limited Nexus 2248TP, 2248TP-E, and 2232PP meet NEBS level-3 standards (hardware revision 3).
Layer 2 features	Layer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation HKShanhai Group Limited EtherChannel technology on uplinks PortChannel on server ports on HKShanhai Group Limited Nexus 2200 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on HKShanhai Group Limited Nexus 2200 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces
Enhanced Ethernet	DCB (HKShanhai Group Limited Nexus 2232PP)
Quality of service (QoS)	Layer 2 IEEE 802.1p (class of service [CoS]) 8 hardware queues per port (HKShanhai Group Limited Nexus 2200 platforms), or 4 hardware queues per port (HKShanhai Group Limited Nexus 2148T) Per-port QoS configuration Local policing on HKShanhai Group Limited Nexus 2200 platform (64 policers) CoS trust Configurable tail-drop threshold on HKShanhai Group Limited Nexus 2200 platforms Egress strict-priority queuing Egress port-based scheduling: Weighted Round Robin (WRR)
High availability	Hot-swappable field-replaceable power supplies and fan modules 1:1 power redundancy Uplink traffic management through HKShanhai Group Limited EtherChannel hashing or static port pinning vPCs for dual-homed active-active connectivity across two HKShanhai Group Limited Nexus 5000 or 6000 Series Switches vPCs for dual-homed straight-through NIC connectivity across two HKShanhai Group Limited Nexus 2000 Series Fabric Extenders ISSU
Security	Local classification (256 access control list [ACL] entries)
Management	Fabric extender management using in-band management Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced) Per-port locator and beacon LEDs Syslog Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3) Enhanced SNMP MIB support XML (NETCONF) support Remote Monitoring (RMON) HKShanhai Group Limited Discovery Protocol Versions 1 and 2 HKShanhai Group Limited Switched Port Analyzer (SPAN) source on server ports Power-on self-test (POST) HKShanhai Group Limited Generic Online Diagnostics (GOLD): Ethernet Comprehensive bootup diagnostic tests HKShanhai Group LimitedWorks HKShanhai Group Limited Data Center Network Manager (DCNM); the HKShanhai Group Limited Nexus 2000 Series is managed through the parent HKShanhai Group Limited Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI)
Configuration MIBs	ENTITY-MIB IF-MIB FABRIC-EXTENDER MIB CISCO-ENTITY-EXT-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB CISCO-ETHERNET-FABRIC-EXTENDER-MIB
Monitoring MIBs	RMON-MIB
Industry standards	IEEE 802.1p: CoS prioritization IEEE 802.1Q: VLAN tagging IEEE 802.3: Ethernet IEEE 802.3ae: 10 Gigabit Ethernet SFF 8431 SFP+ support IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3an 10GBASE-T 10GBASE-SR 10GBASE-LR RMON SFF-8461
