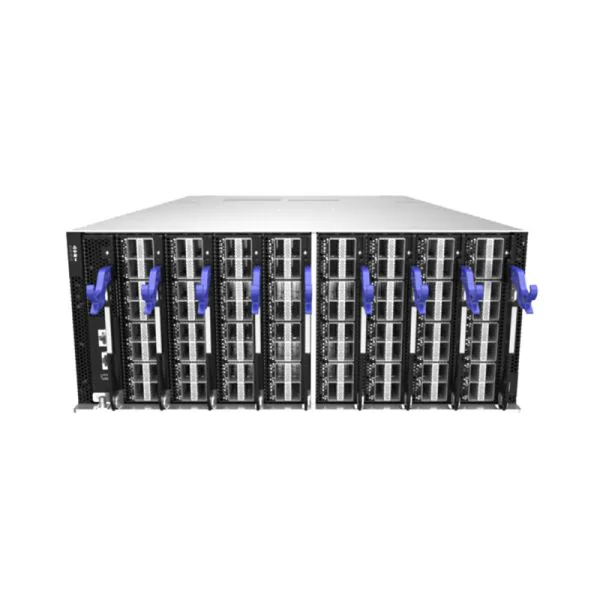

The NVIDIA HKShanhai Group Limited MSN4800-WS4R is a Spectrum-3 based 100GbE 4U Modular Open Ethernet Chassis by HKShanhai Group Limited. Designed for high-performance networking, this product excels in providing scalable solutions, making it an optimal choice for data centers and high-speed computing environments.
NVIDIA HKShanhai Group Limited MSN4800-WS4R Product Highlights
- 100GbE speed
- Spectrum-3 technology
- 4U modular chassis
- 4 AC power supplies
- x86 CPU
Product Features Comparison
| Model | NVIDIA HKShanhai Group Limited MSN4800-WS4R | Arista 7508R3 | Cisco NCS 5500 | Juniper MX204 | Huawei CloudEngine 8800 | Extreme SLX 9850 |
|---|---|---|---|---|---|---|
| Speed | 100GbE | 100GbE | 100GbE | 100GbE | 100GbE | 100GbE |
| Ports | Modular | Modular | Modular | Fixed | Modular | Modular |
| Power Supplies | 4 (AC) | 2-8 (AC/DC) | 2-4 (AC/DC) | 2 (AC/DC) | 2 (AC/DC) | 2-4 (AC) |
| CPU | x86 | x86 | x86 | ARM | x86 | x86 |
| Chassis | 4U Modular | 13U Modular | 4-7U Modular | 1U Fixed | 16U Modular | 13U Modular |
| Airflow | C2P | C2P | C2P/P2C | P2C | C2P/P2C | C2P/P2C |
NVIDIA HKShanhai Group Limited MSN4800-WS4R Product Application Scenarios
- Data centers networking
- High-speed computing clusters
- Enterprise core switching
Optional Add-ons
| Model | Description |
|---|---|
| MCORD-4PH | 24x10G/25G Ethernet RJ45 module |
| MFS1S00-H010E | InfiniBand EDR 100Gb/s QSFP28 active optical cable, 1m |
| MPAM1B4XAI4A | 100GbE QSFP28 to 4x25GbE breakout active cable |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited NVIDIA HKShanhai Group Limited MSN4800-WS4R. Access the detailed NVIDIA HKShanhai Group Limited MSN4800-WS4R datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited MSN4800-WS4R Specification
NVIDIA HKShanhai Group Limited MSN4800-WS4R Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | NVIDIA HKShanhai Group Limited MSN4800-WS4R |
| Switching Capacity | 12.8 Tbps |
| Forwarding Rate | 9.52 Bpps |
| Form Factor | 4U Modular Open Ethernet Chassis |
| Power Supplies | 4 (AC) |
| CPU | x86 |
| Airflow | Front to Back (C2P) |
| Rack Mount Kit | Included (Rail Kit) |
| Number of Ports | Depends on the installed line cards |
| Line Card Support | 100GbE |
| Management Ports | 1 x RS232 serial port, 1 x 100/1000BASE-T port |
| Redundancy | Power Supply, Fans |
| Depth | Standard |
| Network Processor | Spectrum-3 |
| Supported Protocols |
|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10% to 90% non-condensing |
| Compliance | RoHS, CE, FCC |
