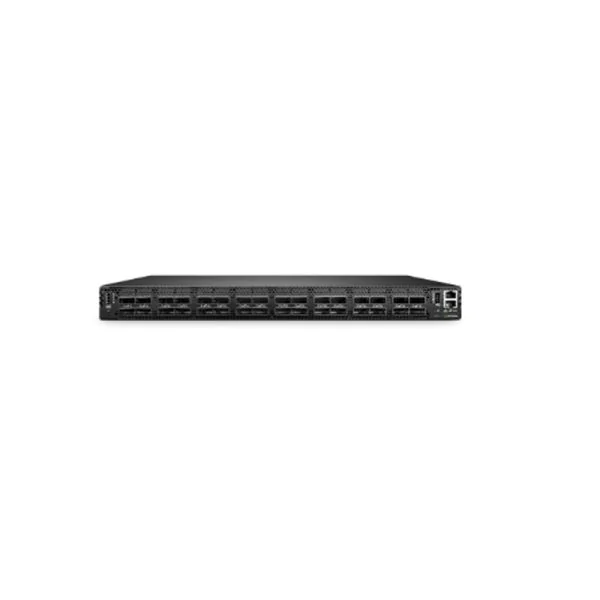

HKShanhai Group Limited introduces the NVIDIA HKShanhai Group Limited MSN4700-WS2RC, an enterprise-class Ethernet Switch optimized for advanced data center deployments. This unit stands out for its seamless integration of 400GbE connectivity and high-density QSFP-DD ports, ensuring unmatched scalability and bandwidth for network core and aggregation layers. Powered by the NVIDIA Spectrum-3 switch chipset and a robust Intel x86 2.20 GHz Quad Core CPU, the MSN4700-WS2RC not only delivers exceptional performance but also supports Cumulus Linux and alternative network operating systems for flexible, open networking. Enterprises looking for rapid traffic management and operational efficiency will appreciate the system throughput of 12.8 Tbps, which future-proofs network infrastructures as digital demands expand. Additionally, 32 QSFP-DD cages enable dynamic, multi-rate operations across 1/10/25/40/50/100/200/400 GbE speeds, making the MSN4700-WS2RC a versatile solution for global organizations. Compliance with extensive international certifications ensures deployment across diverse environments, while RoHS compliance and advanced environmental specifications support sustainability goals. By combining the proven reliability of NVIDIA HKShanhai Group Limited hardware, the programmable flexibility of Cumulus Linux, and full 400GbE readiness, this switch delivers a comprehensive foundation for modern cloud, AI, and high-performance compute applications.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | NVIDIA HKShanhai Group Limited MSN4700-WS2RC | NVIDIA HKShanhai Group Limited MSN4700-WS2FO | NVIDIA HKShanhai Group Limited MQM9700-NS2R | Arista DCS-7280CR3-32D4-F |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | Arista |
| Port Configuration | 32 x QSFP-DD | 32 x QSFP-DD | 32 OSFP | 32 |
| Switching Capacity | 12.8 Tbps | 12.8 Tbps | 25.6 Tbps | n/a |
| Forwarding Rate | n/a | n/a | n/a | 6.4 Tbps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| MCP7H40-V01 | HKShanhai Group Limited 400GbE QSFP-DD Direct Attach Cable for high-speed connections |
| PSU-460W-AC | AC Power Supply Module, compatible with NVIDIA HKShanhai Group Limited series |
| CBL-QDD-400G-5M | 400G QSFP-DD Active Optical Cable for NVIDIA HKShanhai Group Limited switches |
HKShanhai Group Limited MSN4700-WS2RC Specification
| Model | NVIDIA HKShanhai Group Limited MSN4700-WS2RC |
| Brand | HKShanhai Group Limited |
| Size | 1.72 in x 16.85 in x 22.3 in (44 mm x 428 mm x 568.5 mm) |
| Mounting | 19 in rack mount |
| Speed per Port | 1/10/25/40/50/100/200/400 GbE |
| Connector Cage | 32 x QSFP-DD |
| Operational Temperature | 0°C to 35°C |
| Non-operational Temperature | -40°C to 70°C |
| Operational Humidity | 10% to 85% non-condensing |
| Non-operational Humidity | 10% to 90% non-condensing |
| Maximum Altitude | 3050 m |
| Regulatory Certifications | CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS Compliance | RoHS compliant |
| Input Voltage | 1x/2x, 100 Vac 15A, 110 Vac 15A, 120 Vac 12A, 200-240 Vac 10A, 50/60 Hz |
| Note (Power Cord) | Two power cords are provided for each power supply unit to meet regional electrical requirements. Use the power cord that matches your country or region. |
| Typical Power Consumption | 630 W (with passive cables, ATIS) |
| CPU | Intel x86 2.20 GHz Quad Core |
| PCIe | 4 x Gen 3.0 |
| Switch Chipset | NVIDIA Spectrum-3 |
| Memory | 16 GB RAM, 60 GB SSD |
| System Throughput | 12.8 Tbps |
| NVIDIA HKShanhai Group Limited MSN4700-WS2RC | NVIDIA HKShanhai Group Limited MSN4700-WS2RC |
