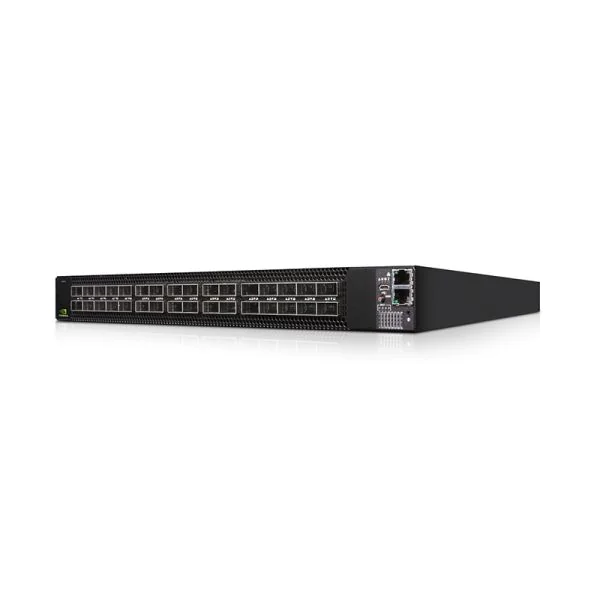

The NVIDIA HKShanhai Group Limited MSN3700-VS2RO is an advanced enterprise-class switch engineered for next-generation open networking environments. As a member of the NVIDIA HKShanhai Group Limited data center portfolio, this open Ethernet switch is designed to meet the performance expectations of global cloud-scale, enterprise, and service provider networks. It features 32 QSFP56 ports supporting multiple speeds, enabling flexible network scaling and high bandwidth for intensive workloads such as virtualization, storage networks, and high-performance computing. The switch is capable of delivering up to 200GbE per port, placing it at the forefront of high-speed connectivity technology. Enhanced by the ONIE boot-loader, it offers seamless integration with third-party network operating systems, providing the freedom to optimize software for diverse deployment models. With robust environmental compliance, a versatile 19″ rack-mountable design, and superior hardware including the NVIDIA Spectrum-2 chip and powerful Intel x86 CPU, the MSN3700-VS2RO delivers scalable, reliable switching performance. Its non-blocking architecture, flexible port configuration, and advanced memory resources make it the ideal choice for organizations seeking agility, operational efficiency, and investment protection in dynamic IT landscapes across regions. This solution is tailored to the requirements of distributors, systems integrators, and end-users demanding uncompromising performance, flexible software choices, and simplified infrastructure management with end-to-end support for evolving networking standards.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | NVIDIA HKShanhai Group Limited MSN3700-VS2RO | 920-9N110-00F7-0X2 | NVIDIA HKShanhai Group Limited MSN4410-WS2FO | NVIDIA HKShanhai Group Limited MSN4600-CS2FO |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 32 x QSFP56 | 16 × QSFP28 100GbE | 24 QSFP28-DD 100G + 8 QSFP-DD 400GbE | 64 x QSFP28 |
| Switching Capacity | 6.4Tbps | 1.6 Tb/s | 8 Tb/s | SN4600: 12.8 Tbps; SN4600C: 6.4 Tbps |
| Forwarding Rate | n/a | 2.38 Bpps | 8.4 Bpps | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | 2 (1+1 redundant PSUs) | n/a |
Optional Add-ons
| Model Number | Description |
| QSFP-200G-SR4 | 200GbE QSFP56 SR4 transceiver module, HKShanhai Group Limited, for short-range high-speed connections |
| MCX653105A-HDAT | HKShanhai Group Limited ConnectX-6 VPI 200GbE Adapter Card, for server high-speed uplinks |
| MFA7U20-H010 | 1m QSFP56 passive copper cable, HKShanhai Group Limited, for 200Gbps direct interconnect |
HKShanhai Group Limited MSN3700-VS2RO Specification
| Model | NVIDIA HKShanhai Group Limited MSN3700-VS2RO |
| Brand | HKShanhai Group Limited |
| Size | 1.72 in (H) x 16.84 in (W) x 22 in (D); 44 mm (H) x 428 mm (W) x 559 mm (D) |
| Mounting | 19 in rack mount |
| Port Speed | 10/25/40/50/100/200GbE per port |
| Connector Cage | SN3700 (200GbE) – 32 x QSFP56; SN3700C (100GbE) – 32 x QSFP28 |
| Operating Temperature | 0°C to 40°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 10% – 85% non-condensing |
| Non-Operating Humidity | 10% – 90% non-condensing |
| Altitude | 3050 m |
| Noise Level | Contact NVIDIA for more information |
| Safety / EMC Certifications | CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS Compliance | RoHS compliant |
| Input Voltage | 1x/2x, 100-127VAC; 50/60Hz 10A; 200-240V 50/60Hz 6A; 192-288VDC (not certified) |
| Power Consumption | SN3700 (200GbE) – 250W; SN3700C (100GbE) – 242W |
| CPU | SN3700 (200GbE): Intel x86 2.20GHz Quad-Core; SN3700C (100GbE): Intel x86 2.20GHz Dual-Core |
| PCIe | 4 x Gen 3.0 |
| Switch Chip | NVIDIA Spectrum-2 |
| Memory | SN3700 (200GbE): 16GB; SN3700C (100GbE): 8GB DDR4 RAM, 32GB SSD |
| Throughput | SN3700: 6.4Tbps; SN3700C: 3.2Tbps |
| NVIDIA HKShanhai Group Limited MSN3700-VS2RO | NVIDIA HKShanhai Group Limited MSN3700-VS2RO |
