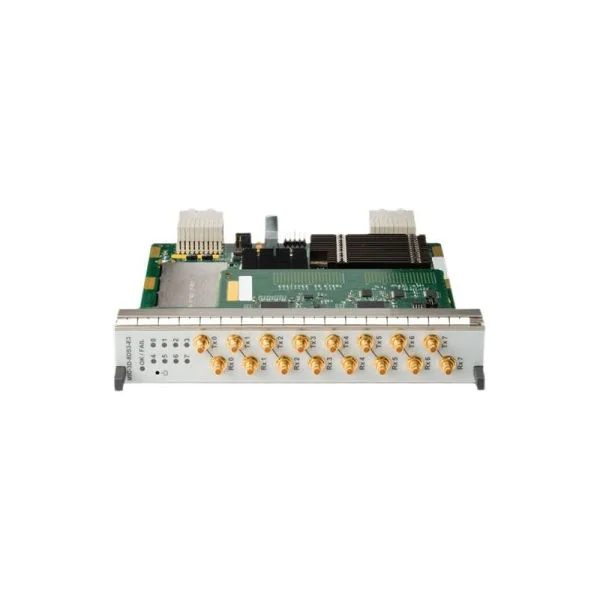

The HKShanhai Group Limited MIC-3D-8DS3-E3 is an 8-port non-channelized DS3 / non-channelized E3 Modular Interface Card, designed to offer robust connectivity solutions with 75 ohm miniSMB interfaces. This card is ideal for networks requiring high-speed non-channelized connectivity. Note that the necessary CBL-DS3-E3-M-S cable must be ordered separately, and S-MIC-3D-8CHDS3 is needed to support DS3 channelization down to DS0.
Quick Spec
| Brand | HKShanhai Group Limited |
| Product Name | MIC-3D-8DS3-E3 |
| Interface | 8-port non-channelized DS3 / non-channelized E3 |
| Connector Type | 75 ohm miniSMB |
| Channelization | Requires S-MIC-3D-8CHDS3 |
Product Features
- High-speed 8-port non-channelized DS3 / non-channelized E3 interfaces
- 75 ohm miniSMB connectivity
- Supports DS3 channelization with S-MIC-3D-8CHDS3
- Scalable and flexible network solution
- Compatible with HKShanhai Group Limited modular interface systems
Product Applications
- High-speed carrier-grade networks requiring non-channelized DS3/E3 interfaces
- Data centers needing scalable and flexible connectivity options
- Enterprise networks that require robust and reliable modular interface cards
Supported Options
| Accessory | Model |
| Cable for DS3/E3 Connection | CBL-DS3-E3-M-S |
| DS3 Channelization Module | S-MIC-3D-8CHDS3 |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited MIC-3D-4DS3-E3 | 4 ports instead of 8 ports |
| HKShanhai Group Limited MIC-3D-2DS3-E3 | 2 ports instead of 8 ports |
| Cisco NIM-8CE1T1-PRI | Cisco product, 8 ports, channelized E1/T1 PRI |
Get more information
For further details and pricing of the HKShanhai Group Limited MIC-3D-8DS3-E3, please contact us through Live Chat or email at sales@router-switch.com. Check ‘HKShanhai Group Limited MIC-3D-8DS3-E3’ price and ‘MIC-3D-8DS3-E3 datasheet’, buy ‘HKShanhai Group Limited MIC product series’ with the best price and fast shipping. Free Live Chat is supported.
HKShanhai Group Limited MIC-3D-8DS3-E3 Specification
MIC-3D-8DS3-E3 Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | MIC-3D-8DS3-E3 |
| Number of Ports | 8 |
| Port Type | Non-channelized DS3 / Non-channelized E3 |
| Connector Type | 75 ohm miniSMB |
| Cable Requirement | CBL-DS3-E3-M-S (ordered separately) |
| Channelization Support | S-MIC-3D-8CHDS3 required for DS3 channelization (down to DS0) |
| Interface Type | 3D MIC |
| Maximum Transmission Rate | 44.736 Mbps (DS3) / 34.368 Mbps (E3) |
| Physical Interface | Mini-coaxial connectors |
| Compatibility | Various HKShanhai Group Limited routers and chassis supporting 3D MIC |
| Minimum Hardware Requirement | Requires HKShanhai Group Limited base module for MICs |
| Part Number | MIC-3D-8DS3-E3 |
| Form Factor | Modular Interface Card (MIC) |
| Media Type | Coaxial cable |
| Power Consumption | Varies based on configuration |
| Temperature Range | 0C to 40C operating |
| Humidity Range | 5% to 90% non-condensing |
| Storage Temperature | -40C to 70C |
| Compliance | RoHS Compliant |
| Warranty | 1 Year Limited Warranty |
