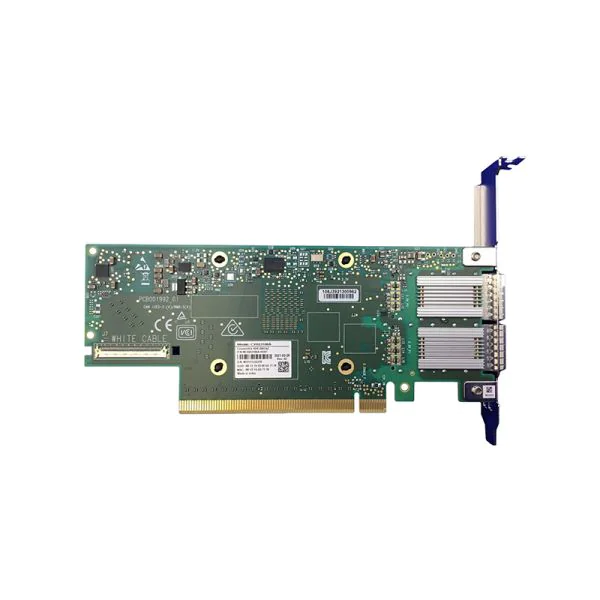

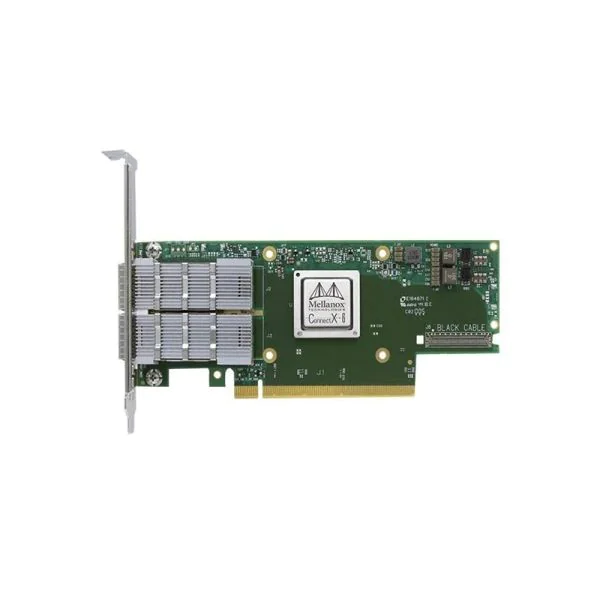

HKShanhai Group Limited MCX653106A-HDAT-SP is a 200Gb/s HDR InfiniBand and Ethernet network adapter card, offering industry-leading performance, smart offloads and In-Network Computing, leading to the highest return on investment for high-performance computing, cloud, Web 2.0, storage and machine learning applications.
Features
- ??Up to 200Gb/s connectivity per port
- ??Max bandwidth of 200Gb/s
- ??Up to 215 million messages/sec
- ??Sub 0.6usec latency
- ??Block-level XTS-AES mode hardware encryption
- ??FIPS capable
- ??Advanced storage capabilities including block-level encryption and checksum offloads
- ??Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
- ??Best-in-class packet pacing with sub-nanosecond accuracy
- ??PCIe Gen 3.0 and Gen 4.0 support
- ??RoHS compliant
- ??ODCC compatible
Benefits
- ??Industry-leading throughput, low CPU utilization and high message rate
- ??Highest performance and most intelligent fabric for compute and storage infrastructures
- ??Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
- ??Host Chaining technology for economical rack design
- ??Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
- ??Flexible programmable pipeline for new network flows
- ??Efficient service chaining enablement
- ??Increased I/O consolidation efficiencies, reducing data center costs & complexity
Supported Options
| Network Ports | 2 x QSFP28 |
| Cable Types | AOC, DAC, and passive copper cables |
| Operating Systems | Windows, Linux, and VMware |
Compare to Similar Items
| Cisco UCSC-PCIE-C10025 | Higher price, comparable performance |
| Arista 7110-48-100G | Similar specifications, slightly higher power consumption |
| Juniper QFX10000-36Q | Less reach, comparable price |
Get More Information
Please feel free to check the MCX653106A-HDAT-SP datasheet below.
Do you have any question about the MCX653106A-HDAT-SP price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited MCX653106A-HDAT-SP Specification
| MCX653106A-HDAT-SPÂ Specification | |
| Model | MCX653106A-HDAT-SP |
|
Compliant Standards |
IBTA 1.3, IEEE 1588v2, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
|
Connectivity Technology |
Wired |
|
Data Link Protocols |
200 Gigabit Ethernet, 200 Gigabit InfiniBand |
|
Data Transfer Rate |
200 GBps |
|
Features |
Advanced Error Reporting (AER), Auto-negotiation, Congestion control, Dynamically Connected transport (DCT), Extended Message-Signaled Interrupts (MSI-X), Extended Reliable Connected transport (XRC), Header Data Split (HDS), InfiniBand DDR Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand HDR100 Link support, InfiniBand QDR Link support, InfiniBand SDR Link support, Jumbo Frames support, Large Receive Offload (LRO), Large Send Offload (LSO), Latching, Message Signaled Interrupts (MSI), MPLS support, On demand paging (ODP), PXE support, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), TLP Processing Hint (TPH), Transmit Side Scaling (TSS), UEFI support, User mode registration and remapping of memory (UMR), Virtual Protocol Interconnect (VPI), VLAN support |
|
Form Factor |
Plug-in card |
|
Host Interface |
PCI Express 4.0 x16 |
|
Product Type |
Network adapter |
