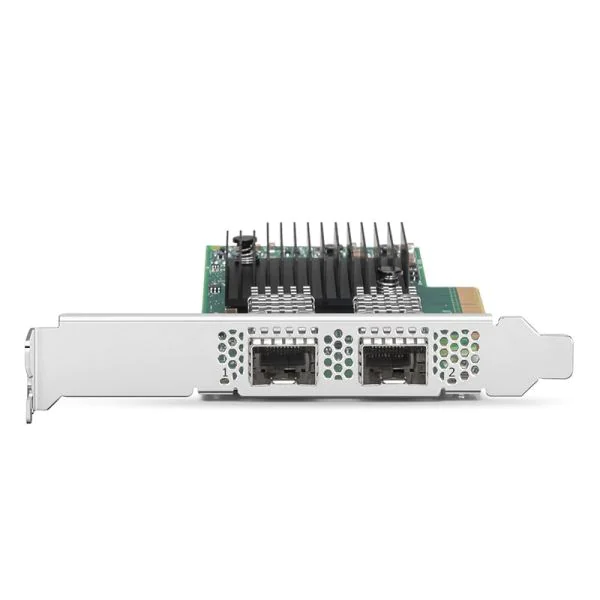

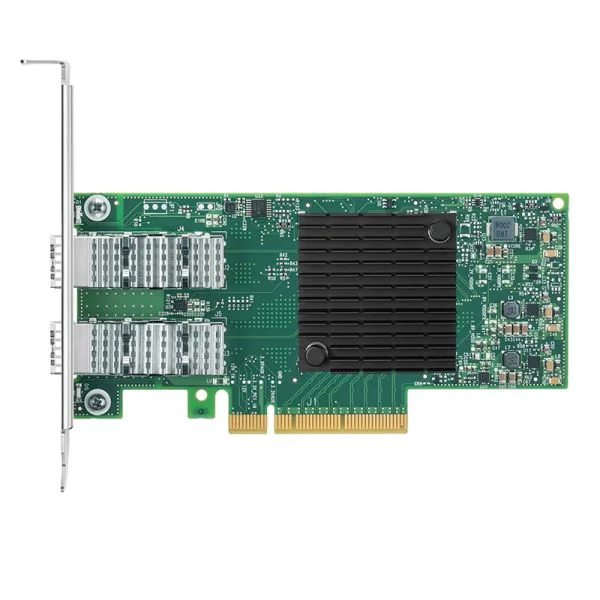

The NVIDIA HKShanhai Group Limited ConnectX-4 Lx EN MCX4121A-ACAT network interface card offers high-speed 25GbE dual-port connectivity through SFP28, utilizing PCIe3.0 x8 interface. Ideal for data centers and cloud environments, it delivers enhanced performance, reliability, and efficiency for network-intensive applications. Engineers and procurement teams benefit from its robust design and superior throughput.
MCX4121A-ACAT Product Highlights
- ??25GbE Dual-Port SFP28
- ??PCIe3.0 x8 Interface
- ??High Performance
- ??Enhanced Data Security
- ??Optimized for Cloud
Product Features Comparison
| Model | MCX4121A-ACAT | MCX5121A-ACAT | MCX4131A-BCAT | MCX515A-CCAT | MCX516A-CDAT | MCX511A-ACAT | MCX416A-BCAT |
|---|---|---|---|---|---|---|---|
| Ports | 2 x 25GbE | 2 x 100GbE | 2 x 40GbE | 1 x 100GbE | 2 x 100GbE | 1 x 25GbE | 1 x 40GbE |
| Interface | PCIe3.0 x8 | PCIe3.1 x8 | PCIe3.0 x8 | PCIe4.0 x8 | PCIe4.0 x16 | PCIe3.0 x8 | PCIe3.0 x8 |
| Speed | 25Gbps | 100Gbps | 40Gbps | 100Gbps | 100Gbps | 25Gbps | 40Gbps |
| Data Center | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Cloud Optimization | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
MCX4121A-ACAT Product Application Scenarios
- ??High-performance data centers
- ??Cloud-based applications
- ??Network-intensive environments
Optional Add-ons
| Model | Description |
|---|---|
| AOC-S25G20 | 25G SFP28 Active Optical Cable |
| MCX-CB25G-2M | 25G SFP28 Copper Cable, 2m |
| MFM1T02A-SRSP | 25G SFP28 SR Optical Transceiver |
Get More Information
Discover unbeatable prices and fast shipping for the NVIDIA HKShanhai Group Limited ConnectX-4 Lx EN MCX4121A-ACAT. Access the detailed MCX4121A-ACAT datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited MCX4121A-ACAT Specification
MCX4121A-ACAT Specifications |
|
| Brand | NVIDIA HKShanhai Group Limited |
| Model | MCX4121A-ACAT |
| Product Type | Network Interface Card (NIC) |
| Network Interface | Ethernet |
| Network Speed | 25GbE |
| Ports | Dual-Port |
| Connector Type | SFP28 |
| Bus Interface | PCIe 3.0 x8 |

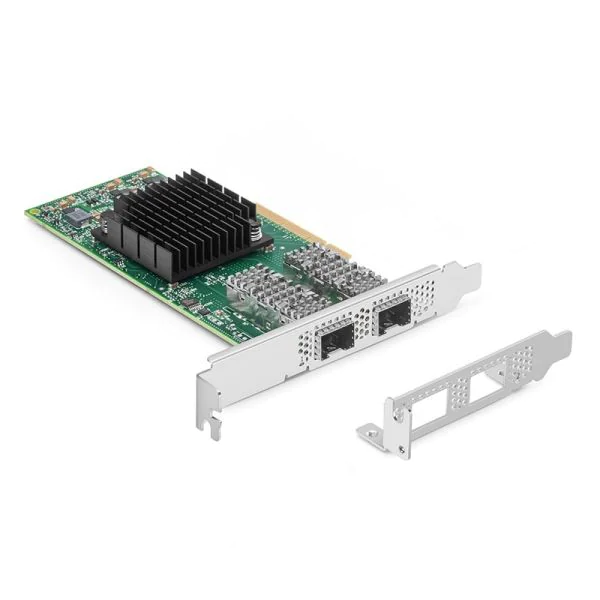

| Bracket Height | Tall Bracket |
| Form Factor | Plug-in Card |
| Standards Compliance | IEEE 802.3 |
| Data Rate | Up to 25Gbps per port |
| Compatible Operating Systems | Windows, Linux, VMware |
| Power Consumption | Maximum 8W |
| Temperature Range | 0°C to 55°C (Operating) |
| Humidity Range | 5% to 95% (Operating) |
| Dimensions | 167.7mm x 68.9mm |
| Warranty | 3 Years |
| Regulatory Approvals | FCC, CE, RoHS |
| Latency | Low Latency |
| RDMA Support | Yes |
