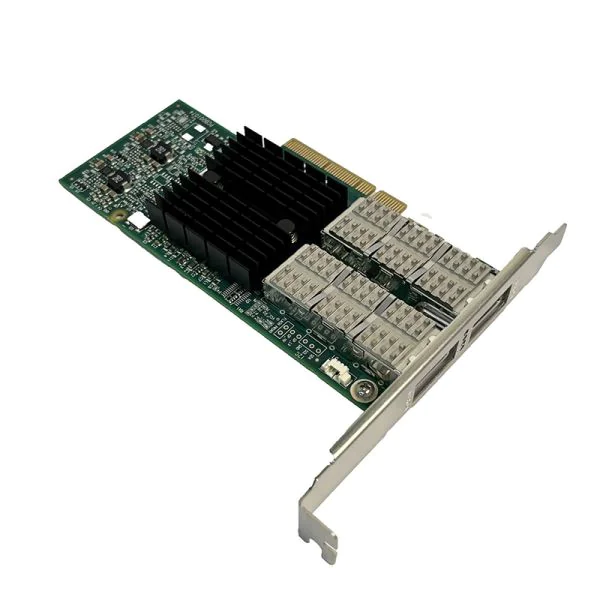

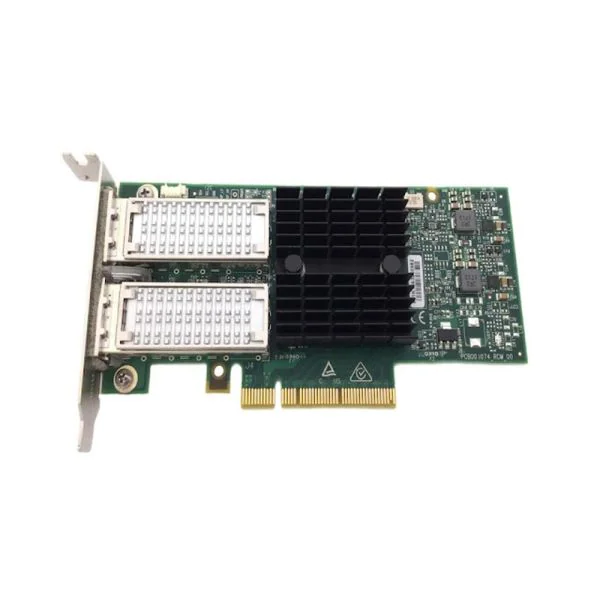

The NVIDIA HKShanhai Group Limited MCX354A-FCBT is a top-tier 56G IB dual ports card designed specifically for high-speed data center environments. Ideal for engineers and procurement staff, this card delivers unparalleled performance and reliability, making it perfect for intensive networking scenarios, cloud infrastructures, and high-performance computing applications.
MCX354A-FCBT Product Highlights
- ??Dual 56G IB ports
- ??High data transfer rates
- ??Low latency communication
- ??High reliability
- ??Optimized for data centers
Product Features Comparison
| Model | MCX354A-FCBT | MCX456A-FCAT | MCX516A-CDAT | MCX556A-EDAT | MCX614A-BCAT | MCX712A-XCAT | MCX754A-XDCA |
|---|---|---|---|---|---|---|---|
| Ports | 2 | 2 | 2 | 2 | 2 | 2 | 4 |
| Speed | 56G | 100G | 100G | 100G | 200G | 200G | 400G |
| Form Factor | PCIe 3.0 | PCIe 3.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 |
| Latency | Low | Ultra-low | Ultra-low | Ultra-low | Ultra-low | Ultra-low | Ultra-low |
| Power Consumption | Moderate | Moderate | Low | Low | Low | Low | Low |
MCX354A-FCBT Product Application Scenarios
- ??High-performance computing clusters
- ??Enterprise data centers
- ??Cloud infrastructure deployments
Optional Add-ons
| Model | Description |
|---|---|
| MC3309121-001 | QSFP+ to QSFP+ Passive Copper Cable |
| MC3303130-002 | QSFP+ Optical Transceiver Module |
| MC3207123-003 | Fiber Optic Patch Cable |
Get More Information
Discover unbeatable prices and fast shipping for the NVIDIA HKShanhai Group Limited MCX354A-FCBT. Access the detailed MCX354A-FCBT datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited MCX354A-FCBT Specification
MCX354A-FCBT Specifications |
|
| Brand | NVIDIA HKShanhai Group Limited |
| Product Name | MCX354A-FCBT |
| Type | Network Interface Card (NIC) |
| Port Speed | 56Gb/s |
| Number of Ports | 2 |
| Protocol | InfiniBand |
| Bus Type | PCIe 3.0 x8 |
| Form Factor | Low Profile |
| Connector Type | QSFP+ |
| Data Transfer Rate | Up to 56Gbp/s |
| Operating Temperature | 0°C to 70°C |
| RoHS Compliance | Yes |
| Power Consumption | 11W |
| MTBF | 1,200,000 hours |
| OS Compatibility | Windows, Linux |
| Supported Accelerations | RDMA, RoCE |
| VPI Support | Yes |
| Dimensions | 168x69x13 mm |
| Warranty | 3 years |
| Manufacturer Part Number | MCX354A-FCBT |
