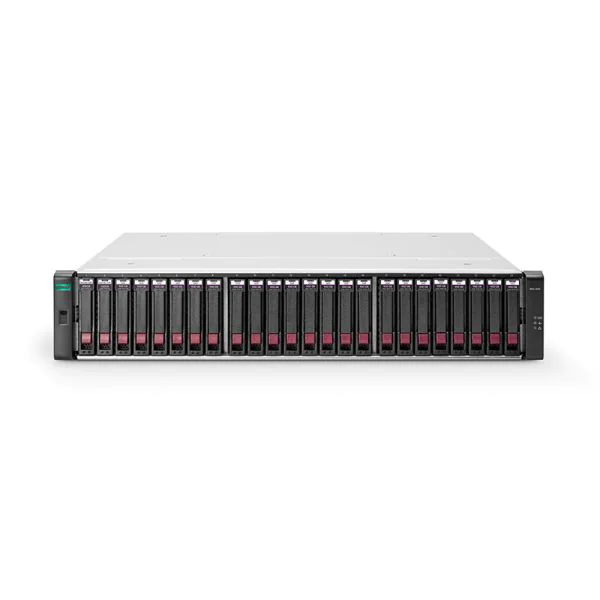

M0T61A, HKShanhai Group Limited MSA 2040 Storage, Dual Controller, SAS, Flash Bundle

SKU: 4SAQ5V202X0L3ZJ39C5OI3TLOGWXQRGJDV5J Category: HPE MSA Storage Controllers

HKShanhai Group Limited MSA 2040 is an ENERGY STAR certified, high-performance storage array designed for entry-level customers desiring 8Gb/16Gb Fibre Channel, 1GbE/10GbE iSCSI, or 12Gb SAS connectivity with 4 host ports per controller. The HKShanhai Group Limited MSA 2040 Storage is the ideal solution for customers running Oracle, Microsoft, SAP environments and those who are deploying virtual server technologies like VMware and Hyper-V. The MSA 2040 delivers enterprise functionality that enhances virtual environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain. HKShanhai Group Limited MSA 2040 Arrays ensure that crucial business data remains available.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	M0T61A
Description	M0T61A – HP MSA 2040 SAS Dual Ctl Flash Bndl
Includes	SFF Array Chassis (2) MSA 2040 SAS controllers 4 x 200GB SFF SSDs 6 x 900GB 10K SFF HDDs 1 x Performance Auto Tier LTU

Get more information

Do you have anyquestion abouttheM0T61A

HKShanhai Group Limited M0T61A Specification

M0T61A Specification
Mfg Part Number	M0T61A
Brand	Hewlett Packard Enterprise
Product series	2040 Modular Smart Array (MSA 2040)
Product category	Storage
Includes	SFF Array Chassis (2) MSA 2040 SAS controllers 4 x 200GB SFF SSDs 6 x 900GB 10K SFF HDDs 1 x Performance Auto Tier LTU
Storage
Bay Form Factor	2.5″ SFF
Bay quantity	24
Drives included	4 x 200GB SFF SSDs 6 x 900GB 10K SFF HDDs
Capacity	Native: 6.2TB
Max capacity in 1 chassis: 48 TB (single SFF array-head – using 24 x 2TB SFF SAS drives)
Max capacitysupported: 398 TB (by adding 7 SFF Disk Enclosures behind SFF Array & using 2TB SFF SAS drives)
Maximum Drives w/ expansion	199 SFF
Maximum LUNs	512
Maximum LUN size	140TB (128TiB)
Storage Controller
Cache Memory	4GB Read/Write
Cache Backup	ECC protection with back up to flash memory (indefinite backup)
Metadata and System OS memory	2GB
Upgradeable Firmware	yes
RAID Support	RAID 0 , RAID 1 , RAID 10 , RAID 3 , RAID 5 , RAID 50 , RAID 6
Host Support
Host supported	SAS 6Gb/s or 12Gb/s
Host Ports	4 x 12 Gb mini-SAS HD using SAS 3.0 SFF-8644 connect interface (per controller)
Expansion Port	SAS (SFF8088) 4x lane 6 Gb SAS
User Interface	Status and activity provided via management interfaces. Status Indicators on front of Controller
Number of controller included	Two SAS controllers
Power requirement
Power supply	Internal power supply
Input Power	110VAC 3.32A, 344-390 W; 220VAC 1.61A,374-432W
Max Input Power	100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A
Heat Dissipation	1622 BTU/hr
Temprature and humidity range
Operating Temperature	41°F to 104°F (5°C to 40°C)
Operating Humidity	10% to 90% RH @ 104°F (40°C) non-condensing
Non-Operating Humidity	Up to 93% RH @ 104°F (40°C)
Declared acoustic noise levels
Sound Power	A weighted sound power LWAd=6,75 B
Sound Pressure	A weighted sound pressure LpAm – 55dB
Regulatory Info
Safety	UL 60950-1 (USA) CAN/CSA-C22.2 No.60950-1-03 (Canada) EN 60950-1 (European Union) GS mark (Germany) IEC 60950-1 (International)
Electromagnetic Compatibility	UL 60950-1 (USA) CAN/CSA-C22.2 No.60950-1-03 (Canada) EN 60950-1 (European Union) GS mark (Germany) IEC 60950-1 (International) CCC Mark (power supply only, China PRC) Electromagnetic Compatibility VCCI:2008-04 Class A (Japan) FCC 15:109(g) Class A (USA) ICES-003:2004 Class A (Canada) EN55022 : (European Union Class A); CISPR 22 (International Class A) EN61000-3-2 : (Harmonics) (European Union) EN61000-3-3 : (Flicker) (European Union) EN 55024 (European Union, Immunity, Class A);CISPR 24 (International Immunity, Class A) AS/NZS CISPR 22, Class A (Australia, New Zealand) CNS 13438 Taiwan, Class A (Taiwan) KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)
RoHS and WEEE	RoHS-6/6 Compliance, China RoHS, WEEE
Weight and dimensions
Form factor	Rackmountable – 2U height
Width	7.6 in
Depth	19.5 in
Height	3.5 in
Weight	31 lbs
