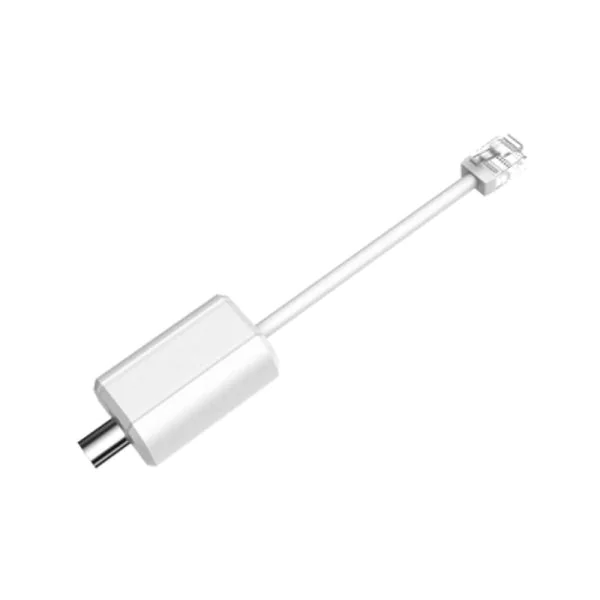

The Dahua LR1002 is a versatile and efficient EoC (Ethernet over Coax) Passive Converter. Designed by Dahua Technology, this innovative device enables the transmission of Ethernet signals over existing coaxial cables, making it an ideal solution for upgrading legacy systems to IP-based networks without the need for new cabling. Its passive nature ensures a high-quality connection while simplifying deployment.
Quick Spec
| Brand | Dahua |
| Model | LR1002 |
| Transmission Distance | Up to 400 meters |
| Port | 1 Channel BNC/F Type |
| Data Rate | 10/100Mbps |
Product Features
- No need for external power supply due to passive design.
- Supports Ethernet transmission over coaxial cable up to 400 meters.
- Plug and play, no configuration required.
- Compact and lightweight design.
- High resistance to signal interference.
Product Applications
- Upgrading an existing analog CCTV system to IP without re-cabling.
- Extending network connections in environments with existing coaxial infrastructure.
- Industrial settings where new cabling installations are challenging.
Supported Options
| Ethernet Switch | Dahua PFS3005-4ET-60 |
| Power Supply | Dahua DH-PFM321D-EN |
| Surge Protection | Dahua PFM9004 |
Compare to Similar Items
| Model | Difference |
| Dahua LR1002-1ET | Includes one Ethernet port and one coaxial port. |
| Dahua LR1002-1EC | Integrated power over coax functionality. |
| Dahua LR1001 | Shorter transmission distance, up to 100 meters only. |
Get more information
For further details about the Dahua LR1002 and to discuss pricing, please contact us through Live Chat or via email at sales@router-switch.com. Check Dahua LR1002 price and LR1002 datasheet, buy Dahua LR1002 EoC Passive Converter with the best price and fast shipping. Free Live Chat is supported.
Dahua LR1002 Specification
LR1002 Specifications |
|
| Brand | Dahua |
| Product Name | Dahua EoC Passive Converter |
| Model | LR1002 |
| Type | Passive Converter |
| Connector | BNC |
| Transmission Medium | Coaxial Cable |
| Distance | 400m for 100Mbps, 1000m for 10Mbps |
| Bandwidth | 10/100Mbps |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 0% to 95% (non-condensing) |
| Dimensions | 80mm x 30mm x 20mm |
| Input Voltage | 48V DC |
| PoE | IEEE802.3at |
| Protection Level | IP40 |
| Surge Protection | 4KV |
| Case | Metal |
| Power Consumption | 2W |
| Installation | Wall Mount |
| Warranty | 3 Years |
