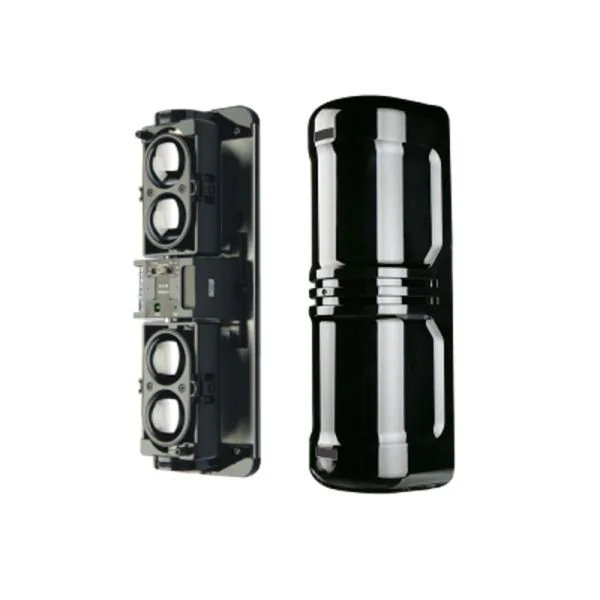

Introducing the Dahua LHP-200Q, a state-of-the-art Quad Beam Detector. This advanced security solution is designed to provide unparalleled perimeter protection with high precision and reliability. Ideal for various environments, the LHP-200Q ensures enhanced security measures by using quad beam technology to accurately detect potential intrusions.
Quick Spec
| Detection Range | 200 meters |
| Beam Frequency | 4 adjustable frequencies |
| Response Time | 50 ms to 700 ms |
| Operating Temperature | -25°C to 55°C |
| Power Consumption | 90 mA |
Product Features
- High-precision quad beam technology
- Adjustable beam frequency for flexibility
- Weatherproof and durable design
- Low power consumption
- Easy installation and alignment
Product Applications
- Perimeter security for industrial facilities
- Residential property boundary protection
- Enhanced security for commercial buildings
Supported Options
| Mounting Bracket | MB-200 |
| Power Adapter | PA-12V |
| Weather Shield | WS-300Q |
Compare to Similar Items
| Model | Difference |
| Dahua LHP-100Q | Detection range up to 100 meters |
| Dahua LHP-150Q | Detection range up to 150 meters |
| Dahua LHP-250Q | Detection range up to 250 meters |
Get more information
For further information about the Dahua LHP-200Q, feel free to contact us through Live Chat or via email at sales@router-switch.com. Check ‘Dahua LHP-200Q’ price and ‘LHP-200Q datasheet’, buy ‘Dahua LHP-200Q Detector’ with best price and fast shipping. Free Live Chat is supported.
Dahua LHP-200Q Specification
LHP-200Q Specifications |
|
| Brand | Dahua |
| Product Name | Dahua Quad Beam Detector |
| Model | LHP-200Q |
| Detection Method | Active Infrared |
| Detection Range | Up to 200 meters |
| Number of Beams | 4 |
| Power Supply | DC12V/24V or AC24V |
| Power Consumption | Active: °100mA; Passive: °20mA |
| Alarm Output | NC/NO relay output, 1A @ 30V DC/0.5A @ 125V AC |
| Response Time | 50ms to 700ms (adjustable) |
| IP Rating | IP65 |
| Operating Temperature | -25°C to +55°C |
| Operating Humidity | 95% Max |
| Material | Polycarbonate housing |
| Mounting Options | Wall or pole mount |
| Dimensions | 430mm x 85mm x 85mm |
| Alignment Angle | °90° horizontal, °10° vertical |
| Cable Entry | ?19mm, ?26mm |
| LED Indicator | Yes, for alignment and feedback |
| Solar Panel Compatible | Optional |
| Vandal resistant | Yes |
