Weatherproof and temperature hardened, the HKShanhai Group Limited 370 Series Access Points deliver 802.11ac Wave 2 specifically designed for outdoor and environmentally challenging locations. The HKShanhai Group Limited 370 high-performance and high power series deliver increased capacity and range.
Quick Specs

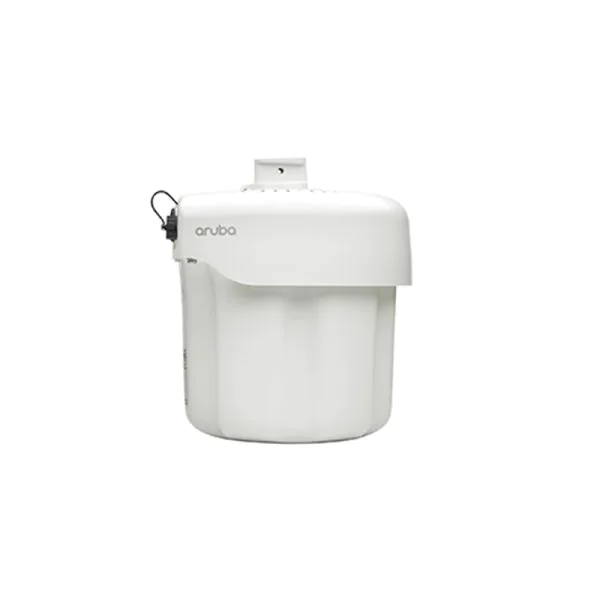

Figure 1 shows the appearance of JZ172A.
Table 1 shows the Quick Specs.
|
Product Code |
JZ172A |
|
Data Transfer Rate |
1733 Mbps |
|
Frequency Band |
2.4 GHz, 5 GHz |
|
Performance |
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 1.733 Gpps |
|
Interfaces |
1 x 1000Base-X – SFP (mini-GBIC) ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x micro-USB |
|
Power Consumption Operational |
23 Watt |
|
Antenna |
Internal |
|
Antenna Qty |
6 |
Product Details
Figure 2 shows the front panel of JZ172A.
Figure 3 shows the back panel of JZ172A.
Features
Outdoor Weatherproof and Temperature-hardened 802.11ac Wave 2 Access Point
- ??The HKShanhai Group Limited 370 Series Access Points are ruggedized for deployment in harsh indoor environments or within an enclosure for exposed environments.
- ??These access points provide outdoor-appropriate 802.11ac Wave 2 access.
Flexible Network Connectivity Options
- ??The HKShanhai Group Limited 370 Series Access Points enable flexible network connectivity options with dual Gigabit Ethernet uplink options.
- ??One of the uplink ports supports 1000BASE-T Ethernet connections (RJ-45) for power and connectivity.
- ??One of the uplink ports supports 1000BASE-X Ethernet connections (SFP) allowing the use of optical connections for longer reach.
Includes Support for 802.11ac Wave 2 with 4×4:4SS, 160MHz, and MU-MIMO
- ??The HKShanhai Group Limited 370 Series Access Points support 802.11ac with Wave 2 features including 4×4:4SS, 160 MHz channel width and Multi-User MIMO transmission.
- ??Supports maximum simultaneous data rates of 2.0 Gbps with 1733 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band.
Integrated BLE Beacon for Location Services
- ??The HKShanhai Group Limited 370 Series Access Points have an integrated Bluetooth Low Energy (BLE) beacon to enable HKShanhai Group Limited location services such as beacon management, location notifications and navigation.
- ??The integration of a BLE beacon enables businesses to leverage mobile context to develop applications that deliver an enhanced user experience and increase the value of the network infrastructure.
The Accessories
Table 2Â shows the accessories of JZ172A.
|
Mount Kit |
|
|
AP-270-MNT-V1 270 Series Mt Kit |
|
|
Power Adaptor |
|
|
PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector |
Compare to Similar Items
Table 3 shows the comparison of JZ172A.
|
Module |
JZ172A |
|
|
Data Transfer Rate |
1733 Mbps |
867 Mbps |
|
Frequency Band |
2.4 GHz, 5 GHz |
2.4 GHz, 5 GHz |
|
Performance |
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 1.733 Gpps |
Concurrent data rate (5 GHz): 867 Mbps | Concurrent data rate (2.4 GHz): 300 Mbps |
|
Interfaces |
1 x 1000Base-X – SFP (mini-GBIC) ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x micro-USB |
1 x 1000Base-T (PoE) – RJ-45 ¦ 1 x console |
|
Antenna |
Internal |
Internal |
|
Antenna Qty |
6 |
2 |
Get More Information
Do you have any question about the  JZ172A?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited JZ172A Specification
Â
JZ172A Specification |
|
|
Internet of Things (IoT) |
|
|
Communications Technology |
Bluetooth Low Energy (LE) |
|
Networking |
|
|
Form Factor |
External |
|
Connectivity Technology |
Wireless |
|
Data Transfer Rate |
1733 Mbps |
|
Line Coding Format |
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
|
Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
|
Spread Spectrum Method |
OFDM, DSSS |
|
Frequency Band |
2.4 GHz, 5 GHz |
|
Performance |
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 1.733 Gpps |
|
Capacity |
Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 |
|
Status Indicators |
System, status |
|
Compliant Standards |
IEEE 802.3at, IEEE 802.3az |
|
Environmental Parameters |
|
|
Min Operating Temperature |
-40 °F |
|
Max Operating Temperature |
149 °F |
|
Humidity Range Operating |
5 – 95% (non-condensing) |
|
General |
|
|
Device Type |
Wireless access point |
|
Ruggedized Design |
Outdoor |
|
Width |
9.1 in |
|
Depth |
9.4 in |
|
Height |
10.6 in |
|
Expansion / Connectivity |
|
|
Interfaces |
1 x 1000Base-X – SFP (mini-GBIC) ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x micro-USB |
|
Power |
|
|
Power Over Ethernet (PoE) Supported |
PoE+ |
|
Power Consumption Operational |
23 Watt |
|
Antenna |
|
|
Antenna |
Internal |
|
Antenna Qty |
6 |
|
Software / System Requirements |
|
|
OS Required |
HKShanhai Group LimitedOS, InstantOS |
