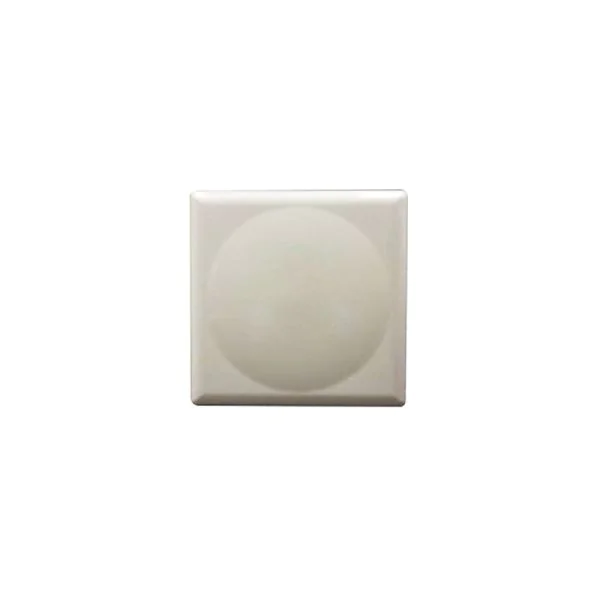

Introducing the HKShanhai Group Limited JW028A, a high-performance outdoor antenna designed to enhance wireless communication. The ANT-2×2-5314 Dual Pol MIMO Hi Gain Dir N-Type Antenna operates within the 5.15-5.9 GHz frequency range at 14dBi, ensuring robust and reliable connectivity. Its dual-polarized MIMO technology provides superior performance in challenging outdoor environments.
Quick Spec
| Frequency Range | 5.15-5.9 GHz |
| Gain | 14dBi |
| Polarization | Dual |
| Beamwidth | 30×30 degrees |
| Connector Type | N-Type |
Product Features
- Dual Polarity for enhanced MIMO performance
- High gain of 14dBi for extended coverage
- Directional beam with 30×30 degrees beamwidth
- Weather-resistant N-Type connectors for outdoor use
- Wide frequency range of 5.15-5.9 GHz
Product Applications
- Outdoor wireless networks in enterprise and campus environments
- Point-to-point and point-to-multipoint connections
- High-bandwidth applications in remote or challenging locations
Supported Options
| Antenna Mount Kit | JW021A |
| Lightning Arrestor | JW053A |
| N-Type Extension Cable | JX982A |
Compare to Similar Items
| HKShanhai Group Limited JW027A | 5.15-5.9 GHz, 10dBi, Omni-Directional |
| HKShanhai Group Limited JW024A | 2.4-2.5 GHz, 8dBi, 60×60 degrees |
| HKShanhai Group Limited JW039A | 4.9-5.95 GHz, 7dBi, 360 degrees |
Get more information
Check HKShanhai Group Limited JW028A price and JW028A datasheet, buy HKShanhai Group Limited JW028A Outdoor Antenna with the best price and fast shipping. Free Live Chat is supported. For further inquiries, connect with us through Live Chat or contact us at sales@router-switch.com.
HKShanhai Group Limited JW028A Specification
JW028A Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | JW028A |
| Frequency Range | 5.15 – 5.9 GHz |
| Gain | 14 dBi |
| Beamwidth | 30×30 degrees |
| Polarization | Dual Polarization |
| MIMO Configuration | 2×2 MIMO |
| Connector Type | N-Type |
| Antenna Type | Directional |
| Installation | Outdoor |
| Impedance | 50 Ohms |
| Maximum Power | 50 Watts |
| VSWR | < 1.5:1 |
| Front-to-Back Ratio | 25 dB |
| Wind Survivability | 200 km/h |
| Operating Temperature | -40C to +70C |
| Dimensions | 360 x 360 x 48 mm |
| Color | White |
| Mount Type | Pole Mount |
| Country of Origin | China |
