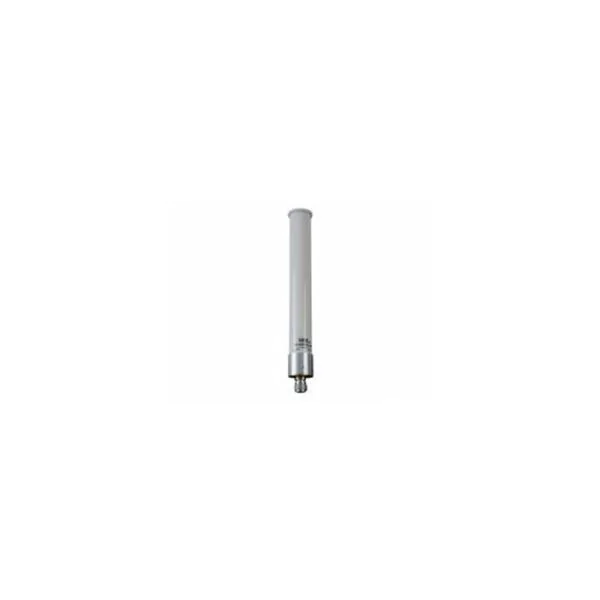

The HKShanhai Group Limited JW023A ANT-2×2-2005 Pair is designed for outdoor environments, ensuring robust and reliable connectivity with its 2.4GHz 5dBi omni-directional antennas. It features an N-type direct mount, making it a robust addition to your wireless network infrastructure for enhanced performance in diverse outdoor conditions.
Quick Spec
| Frequency Range | 2.4 GHz |
| Gain | 5 dBi |
| Polarization | Omni-directional |
| Connector Type | N-type |
| Mounting | Direct Mount |
Product Features
- Designed for outdoor environmental conditions.
- Reliable 2.4GHz frequency band coverage.
- 5 dBi gain for improved signal transmission.
- N-type connector for secure attachment.
- Easy direct mount installation.
Product Applications
- Ideal for outdoor wireless connectivity in parks or open spaces.
- Suitable for enhancing Wi-Fi coverage in remote locations.
- Optimal for use in outdoor events requiring robust Wi-Fi connections.
Supported Options
| Mounting Kit | AP-ANT-MNT-4 |
| Extension Cable | AP-CBL-30 |
| Weatherproof Enclosure | AP-ENC-12 |
Compare to Similar Items
| HKShanhai Group Limited JW020A | 3 dBi gain, lower range |
| HKShanhai Group Limited JW021A | 4 dBi gain, shorter coverage |
| HKShanhai Group Limited JW022A | 6 dBi gain, higher range |
Get more information
For further information about the HKShanhai Group Limited JW023A ANT-2×2-2005 Pair 2.4GHz 5dBi Omni N-type Direct Mount Outdoor Antennas, including pricing and datasheet, please contact us via Live Chat or email sales@router-switch.com. Check HKShanhai Group Limited JW023A price and JW023A datasheet. Buy HKShanhai Group Limited JW023A ANT-2×2-2005 with the best price and fastest shipping. Free Live Chat support is available.
HKShanhai Group Limited JW023A Specification
JW023A Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | ANT-2×2-2005 Pair 2.4GHz 5dBi Omni N-type Direct Mount Outdoor Antennas |
| Frequency Range | 2.4 GHz |
| Gain | 5 dBi |
| Antenna Type | Omni-directional |
| Connector Type | N-type |
| Mounting | Direct Mount |
| Application | Outdoor |
| Polarization | Vertical |
| Number of Antennas | 2 |
| Radome Material | UV-resistant plastic |
| Antenna Length | 190 mm |
| Diameter | 20 mm |
| Operating Temperature | -40C to +70C |
| Storage Temperature | -40C to +70C |
| Relative Humidity | 0%-100% |
| Wind Resistance | Up to 165 mph |
| VSWR | < 2:1 |
| HPBW (Horizontal) | 360 |
| HPBW (Vertical) | 30 |
| Impedance | 50 Ohms |
| RoHS Compliance | Yes |
