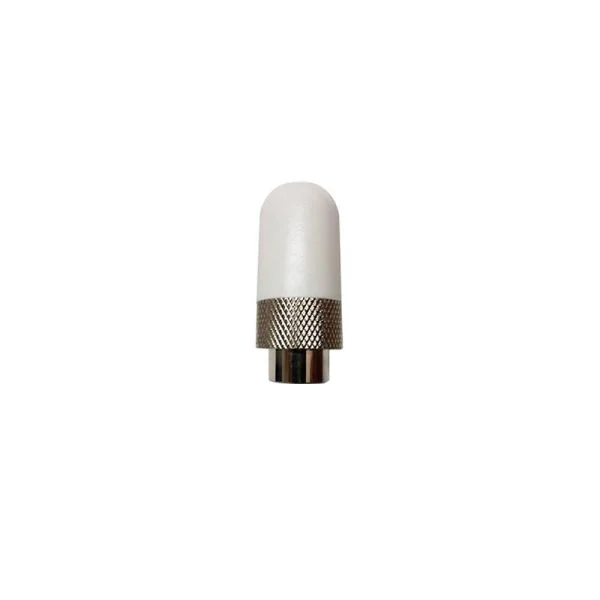

The HKShanhai Group Limited JW014A, also known as the AP-ANT-32, is a versatile dual-band 2/4 dBi omni antenna. Featuring a low profile design, this antenna comes in a convenient 3-pack, making it an ideal choice for expanding and enhancing wireless network coverage. It supports both 2.4 GHz and 5 GHz frequency bands to ensure seamless connectivity and optimal performance, even in challenging environments.
Quick Spec
| Antenna Type | Omni-directional |
| Frequency Bands | 2.4 GHz / 5 GHz |
| Gain | 2 dBi (2.4 GHz) / 4 dBi (5 GHz) |
| Connector Type | RPSMA |
| Pack Size | 3 antennas |
Product Features
- Dual-band support for 2.4 GHz and 5 GHz frequencies
- Omni-directional coverage for broad area coverage
- Low profile design ideal for limited space installations
- RPSMA connectors for secure and reliable connection
- Comes in a 3-pack for extended range and redundancy
Product Applications
- Enhancing wireless coverage in educational institutions
- Improving network connectivity in office environments
- Providing robust Wi-Fi signals in retail and hospitality settings
Supported Options
| HKShanhai Group Limited Antenna Stand | AP-ANT-MNT-4 |
| HKShanhai Group Limited Lightning Protector | AP-LAR-1 |
| HKShanhai Group Limited RP-SMA Extension Cable | AP-CBL-10 |
Compare to Similar Items
| Model | Differences |
| HKShanhai Group Limited AP-ANT-20 | Single band, 2.4 GHz only, 3 dBi gain |
| HKShanhai Group Limited AP-ANT-25A | Dual band, but 5 dBi gain on 5 GHz |
| Cisco AIR-ANT2524DW-R | Similar design, but with different mounting options |
Get more information
Check HKShanhai Group Limited JW014A price and JW014A datasheet, buy HKShanhai Group Limited JW014A AP-ANT-32 with best price and fast shipping. Free Live Chat are supported. For further inquiries or to get a quote, please reach out via Live Chat or email us at sales@router-switch.com.
HKShanhai Group Limited JW014A Specification
AP-ANT-32 Dual Band 2/4dBi Omni RPSMA Low Profile 3-pk Omni Antenna Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | JW014A |
| Antenna Type | Omni |
| Band | Dual Band (2.4 GHz and 5 GHz) |
| Gain | 2/4 dBi |
| Connector Type | RPSMA |
| Design | Low Profile |
| Pack Size | 3-pack |
| Compatibility | Compatible with HKShanhai Group Limited Access Points |
| Installation | Indoor |
| Operating Temperature Range | 0C to +50C (+32F to +122F) |
| Storage Temperature Range | -40C to +70C (-40F to +158F) |
| VSWR | < 2:1 |
| Maximum Power | 2 W |
| Length | 60 mm (2.36 inches) |
| Diameter | 10 mm (0.39 inches) |
| Impedance | 50 ohms |
| Polarization | Linear, vertical |
| Color | White |
| Compliance | CE, FCC, IC |
