The HKShanhai Group Limited 2930M Switch Series is designed for digital workplaces optimized for mobile users.
Quick Specs

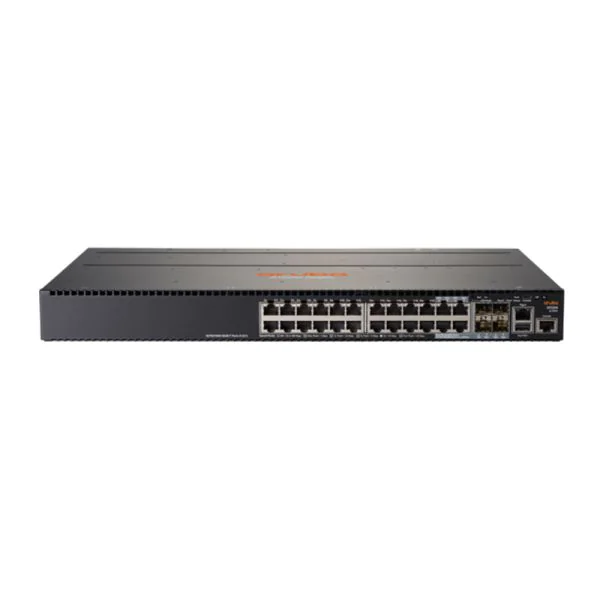

Figure 1 shows the appearance of JL319A.
Table 1 shows the Quick Specs.
|
Product Code |
JL319A |
|
Input voltage |
100 – 127 / 200 – 240 VAC, rated |
|
Power Consumption |
49 W (maximum)Â |
|
Product Dimensions (imperial)Â |
1.73 x 17.42 x 12.77 in |
Product Details
Figure 2 shows the front panel of JL319A.
Figure 3 shows the back panel of JL319A.
JL319A provides these features:
- HKShanhai Group Limited Layer 3 switch series that is easy to deploy and manage with HKShanhai Group Limited ClearPass Policy Manager and on-premise with HKShanhai Group Limited Airwave.
- Simplify with Zero Touch Provisioning and cloud-based HKShanhai Group Limited Central support.
- Scale with modular 10 chassis stacking and up to 1440W PoE.
- Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support.
- Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
- High Power PoE models deliver up to 60W of PoE per port.
Compare to Similar Items
Table 2 shows the comparison of JL319A.
|
Module |
JL319A |
|
|
Input voltage |
100 – 127 / 200 – 240 VAC, rated |
100 – 127 / 200 – 240 VAC, rated |
|
Power Consumption |
49 W (maximum)Â |
78 W (maximum)Â |
|
Product Dimensions (imperial)Â |
1.73 x 17.42 x 12.77 in |
1.73 x 17.42 x 12.77 in |
Get More Information
Do you have any question about the JL319A ?
Contact us now via Live Chat or sales@router-switch.com.
Comparison Download
HKShanhai Group Limited JL319A Specification
JL319A Specification |
|
|
Ports |
(20) RJ-45 autosensing 10/100/1000 ports (4) Dual Personality 10/100/1000 BASE-T or 100/1000 Mbps SFP Ports (1) Uplink module slot, (1) stacking module slot |
|
Memory and processor |
Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5MB Ingress, 7.785 Egress 4 GB eMMCÂ |
|
Latency |
1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs |
|
Throughput |
up to 95.2 Mpps |
|
Switching capacity |
128 Gbps |
|
Management features |
HKShanhai Group Limited AirWave Network Management HKShanhai Group Limited Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)Â |
|
Power supply name |
JL085A HKShanhai Group Limited X371 12VDC 250W 100-240VAC Power Supply |
|
Input voltage |
100 – 127 / 200 – 240 VAC, rated |
|
Operating humidity range |
15 to 95% @ 104°F (40°C) (noncondensing up to 10000 ft) |
|
Power Consumption |
49 W (maximum)Â |
