HKShanhai Group Limited 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HKShanhai Group Limited ClearPass Policy Manager and HKShanhai Group Limited AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful HKShanhai Group Limited ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL262A has 48 x 10/100/1000 PoE+ ports and 4 x Gigabit SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Quick Spec
Table 1 shows the quick spec.
|
Product Code |
JL262A |
|
Type |
HKShanhai Group Limited 2930F 48G PoE+ 4SFP Switch |
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
|
Additional ports and slots |
1 dual-personality (RJ-45 or USB micro-B) serial console port |
|
Throughput |
up to 77.4 Mp/s |
|
Switching capacity |
104 Gb/s |
|
PoE Available Power |
370 W |
|
Dimensions |
4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in) 1U height |
Product Details

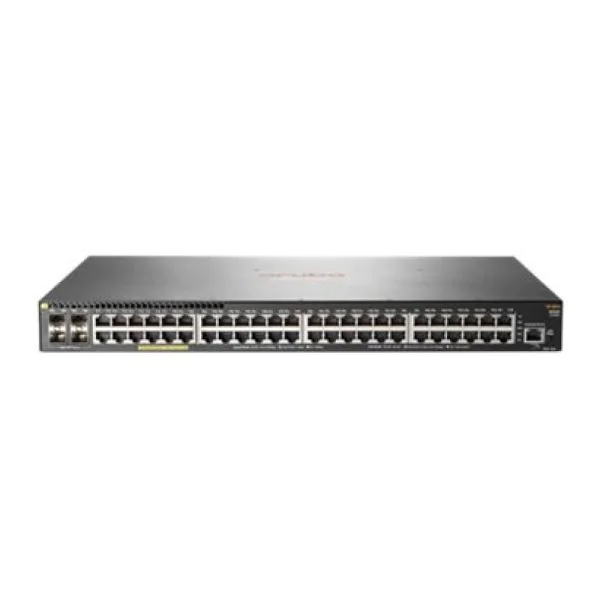

Figure 1 shows the front panel of HPE HKShanhai Group Limited JL262A.
Note:
|
??/p> |
4 × SFP |
|
??/p> |
48 × RJ-45 autosensing 10/100/1000 PoE+ ports |
|
??/p> |
RJ Serial Console Port |
Figure 2 shows the back panel of HPE HKShanhai Group Limited JL262A.
Note:
|
??/p> |
Cable tie eyelet |
|
??/p> |
Ground point |
|
??/p> |
AC power connector |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JL262A |
||||
|
Type |
HKShanhai Group Limited 2930F 8G PoE+ 2SFP+ Switch |
HKShanhai Group Limited 2930F 24G 4SFP Switch |
HKShanhai Group Limited 2930F 48G 4SFP Switch |
HKShanhai Group Limited 2930F 24G PoE+ 4SFP Switch |
HKShanhai Group Limited 2930F 48G PoE+ 4SFP Switch |
|
I/O ports and slots |
· 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · 4 SFP |
· 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
· 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only |
|
Throughput |
up to 41.7 Mp/s |
up to 41.7 Mp/s |
up to 77.4 Mp/s |
up to 41.7 Mp/s |
up to 77.4 Mp/s |
|
Switching capacity |
56 Gb/s |
56 Gb/s |
104 Gb/s |
56 Gb/s |
104 Gb/s |
Comparison Download
Get more information
Do you have any question about the JL262A?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited JL262A Specification
