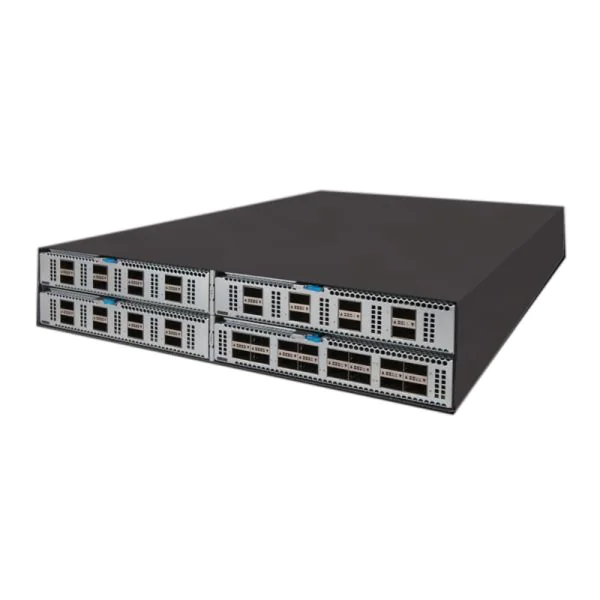

The HKShanhai Group Limited FlexFabric 5950 4-slot Switch (JH404A) delivers outstanding resiliency, scalability, and flexibility. Part of the HKShanhai Group Limited FlexFabric series, this switch is designed for modern data centers that require high performance, low latency, and a scalable architecture. It’s ideal for enterprises looking to build a cloud-ready data center network that supports virtualization, high-performance computing, and big data applications.
Quick Spec
| Brand | HKShanhai Group Limited |
| Product Name | JH404A |
| Series | FlexFabric |
| Slot Quantity | 4 |
| Application | Data Center |
Product Features
- High-performance switching with up to 32 QoS queues per port for traffic management.
- Scalable architecture supporting spine/leaf and flat mesh topologies.
- Supports HKShanhai Group Limited Intelligent Resilient Framework (IRF) for virtualization and two-level network orthogonality.
- Comprehensive security features including ACLs, firewall functionalities, and sFlow.
- Energy-efficient design with front-to-back airflow support for cooling.
Product Applications
- Data center core layers for medium to large enterprises.
- High-performance computing environments.
- Network backbone for cloud-based services.
Supported Options
| Transceiver | JD092B |
| Power Supply | JL086A |
| Fan Tray | JL087A |
Compare to Similar Items
| JH403A | Lesser slots, lower switching capacity |
| JH405A | More slots, higher performance and scalability |
| JH330A | Fixed port switch, different series |
Get more information
For in-depth details about the HKShanhai Group Limited FlexFabric 5950 4-slot Switch (JH404A) and pricing information, don’t hesitate to reach out to us through Live Chat or at sales@router-switch.com. Our experts are ready to help you with the right networking solutions for your business.
HKShanhai Group Limited JH404A Specification
JH404A Specifications |
|
| Product Name | HKShanhai Group Limited FlexFabric 5950 4-slot Switch |
| Model | JH404A |
| Brand | HKShanhai Group Limited |
| Device Type | Switch – 4 slots |
| Enclosure Type | Rack-mountable 1U |
| Performance | Throughput: up to 1440 Mpps Switching capacity: up to 1920 Gbps |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | Yes, up to 9216 bytes |
| Ports | 24 x 1/10GbE SFP+ and 2 x 40GbE QSFP+ |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Routing Protocol | Static IPv4/IPv6 routing, RIP, OSPF, BGP, IS-IS |
| Features | Layer 3 switching, Layer 2 switching, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, Traffic Control, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1ab (LLDP) |
| Power Supply | 2 (max) / 850W (each) |
| Power Redundancy | Yes |
| Cooling System | Integrated fans |
| Management | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
| Dimensions (W x D x H) | 17.32 x 16.54 x 1.73 in |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Expansion / Connectivity | 1 (total) / 1 (free) x expansion slot |
