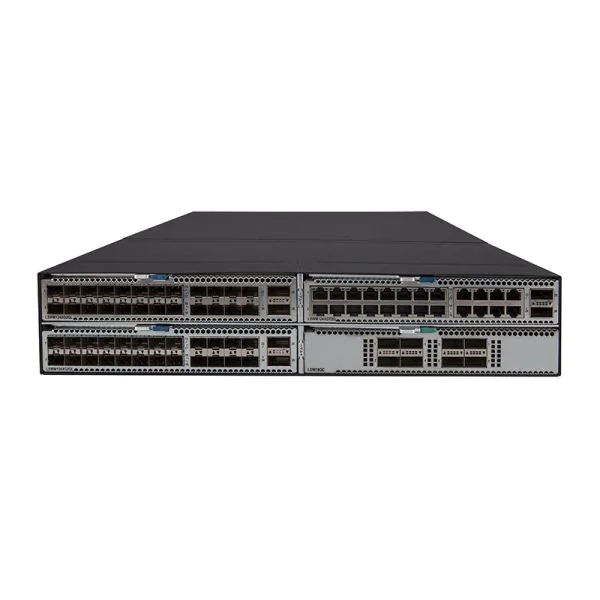

HKShanhai Group Limited FlexFabric 5940 4-slot Switch
HKShanhai Group Limited JH398A Specification
JH398A Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | HKShanhai Group Limited FlexFabric 5940 4-slot Switch |
| Model Number | JH398A |
| Device Type | Switch – 4 slots |
| Enclosure Type | Rack-mountable 1U |
| Ports | 0 |
| Performance | Up to 1.44 Tbps switching capacity |
| Throughput | Up to 1071 Mpps |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | up to 9216 bytes |
| Routing Protocol | Static, RIP, OSPF, BGP, IS-IS, MPLS |
| Features | flow control, layer 3 switching, VLAN support, IPv6 support |
| Compliant Standards | IEEE 802.1ag, IEEE 802.3az |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Firmware Type | Field upgradeable |
| Management Interface | CLI, SNMP, Web-based GUI |
| Power Supply | Dual redundant power supplies (optional) |
| Power Device | Internal power supply – hot-plug |
| Operational Humidity Range | 10 – 90% (non-condensing) |
| Operational Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Dimensions (WxDxH) | 17.32 x 18.98 x 1.73 in |
