JG654A is a HPE 425 series Access Point. The HPE 425 802.11n Dual Radio Access Point Series, designed to work in sync with HPE controllers, delivers high-performance networking solutions. The enhanced controller architecture scales to IEEE 802.11n—without requiring a controller replacement. The controllers provide advanced radio resource management (RRM), including client load balancing and interference mitigation. And the wireless controllers support a fast-roaming capability—an important feature, especially for VoIP communications.
Quick Spec

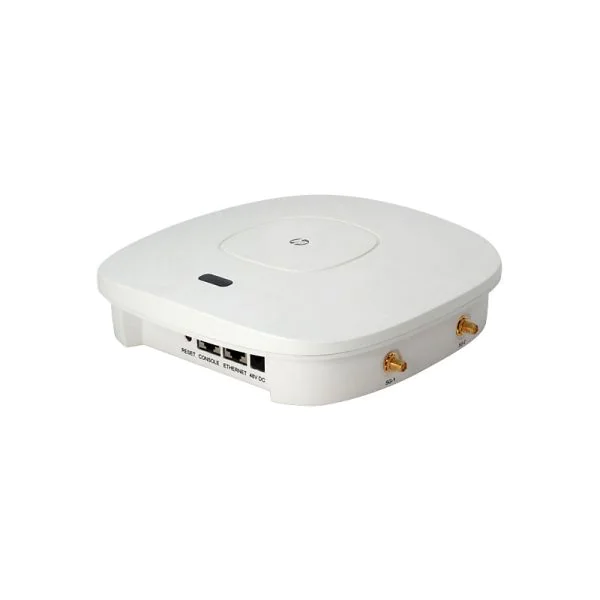

Figure 1 shows the appearance of JG654A.
Table 1 shows the quick specs.
|
Product Number |
JG654A |
|
Type |
HP 425 Wireless Dual Radio 802.11n (WW) Access Point |
|
Ports |
|
|
AP characteristics |
Radios (built-in): 802.11 a/n, b/g/n Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: Certification a/b/g/n Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
|
Dimensions |
7.43(w) x 7.43(d) x 2(h) in (18.86 x 18.86 x 5.08 cm) |
|
Weight |
1.65 lb (.75 kg) mounting bracket |
Product Detail
Figure 2 shows the front view of JG654A.
Note:
|
??/p> |
Status LED |
|
??/p> |
2.4 GHz antenna ports (2) |
|
??/p> |
Reset button |
|
??/p> |
Console port |
|
??/p> |
Ethernet port |
|
??/p> |
Power connector |
|
??/p> |
5 GHz antenna ports (2) |
Compare to Similar Item
Table 2 shows the comparison.
|
Model |
JG654A |
|
|
Type |
HP 425 Wireless Dual Radio 802.11n (WW) Access Point |
HP 425 Wireless Dual Radio 802.11n (WW) 8 unit Eco-pack Access Points |
|
Ports |
|
Â
|
|
AP characteristics |
Radios (built-in): 802.11 a/n, b/g/n Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: Certification a/b/g/n Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
Radios (built-in): 802.11 a/n, b/g/n Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: Certification a/b/g/n Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
Get more information
Do you have any question about the JG654A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited JG654A Specification
JG654A Specifications |
|
|
Type |
HP 425 Wireless Dual Radio 802.11n (WW) Access Point |
|
Ports |
|
|
AP characteristics |
Radios (built-in): 802.11 a/n, b/g/n Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: Certification a/b/g/n Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
|
Dimensions |
7.43(w) x 7.43(d) x 2(h) in (18.86 x 18.86 x 5.08 cm) |
|
Weight |
1.65 lb (.75 kg) mounting bracket |
|
Memory and processor |
Single core @ 560 MHz, 128 MB flash, 128 MB SDRAM |
|
Mounting and enclosure |
Indoor, plenum rated;Includes ceiling/wall mount kei as well as two ceiling mounting |
|
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
5% to 95%, |
|
noncondensing Non-operating/ Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
Non-operating/ Storage relative humidity |
5% to 95%, noncondensing |
|
Electrical characteristics |
Description: IEEE 802.3af PoE compliant for Gigabit Ethernet Maximum power rating: 12.9 W |
|
Frequency band |
World Wide |
|
Radio |
FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea) |
|
Safety |
UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1 |
|
Medical |
EN60601-1-2 |
|
RF Exposure |
FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std. |
|
Features |
Dual radio: IEEE 802.11a/n for high-throughput applications and IEEE 802.11b/g/n for legacy support applications – Integrated antennas for both IEEE radios, supporting two spatial streams and 2×2 MIMO – Four embedded antennas – Both radios operate at full power and full performance on IEEE 802.3af PoE/Gigabit Ethernet – External antenna, optional |
|
Emissions |
EN 55022 Class B; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B |
|
Mobility |
IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection IEEE 802.11d Global Harmonization IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band |
