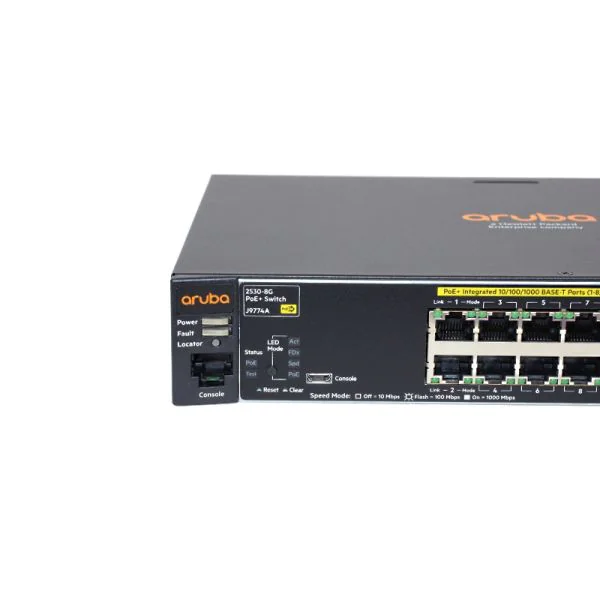

The HKShanhai Group Limited 2530 8G PoE+ Switch, a versatile and powerful networking solution for small to medium-sized businesses. With its compact design and advanced features, this switch provides reliable connectivity and exceptional performance.
Quick Spec
Table 1 shows the quick spec of J9774A.
| Model | J9774A |
| Throughput | up to 14.8 Mpps |
| Ports | 8 x 10/100/1000 (PoE+) |
| PoE capability | 67 W |
| Switching Capacity | 20 Gbps |
Product Features
- Advanced networking capabilities
- Supports Power over Ethernet for easy device connectivity
- Compact and space-saving design
- Simple and intuitive management interface
- Reliable and secure network performance
Product Applications
- Small office networks
- Wireless access point connectivity
- IP surveillance systems
Compare to Similar Items
Table 2 shows the comparison to similar items of J9774A.
| Model | Differences |
| J9773A | No Power over Ethernet support |
| J9775A | Includes rack mount kit |
| J9776A | 24 ports instead of 8 ports |
Get more information
Do you have any questions about the J9774A price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited J9774A Specification
J9774A Specifications |
|

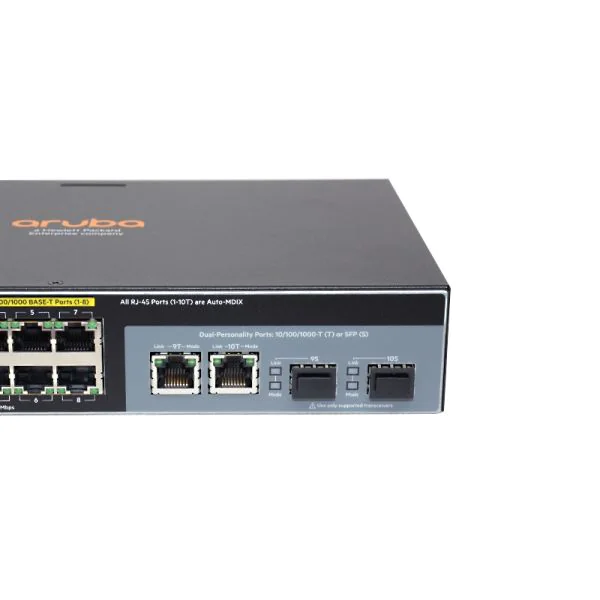

| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10E-T/100BASE-TX: half or full; 1000BASE-T: full only 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100BaseTX; IEEE 802.3ab1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Dimensions | 10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
| Weight | 2.2 lb (1 kg) |
| Processor |
ARM9E @ 800 MHz, 128 MB flash,256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting |
| 100 Mb Latency | < 7.4 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 2.6 µs (LIFO 64-byte packets) |
| Throughput | up to 14.8 Mpps (64-byte packets) |
| Switching capacity | 20 Gbps |
| MAC address table size | 16000 entries |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C),noncondensing |
| Frequency | 50/60 Hz |
| AC voltage | 100 – 127/200 – 240 VAC |
| Current | 1.4 A |
| Maximum power rating | 86 W |
