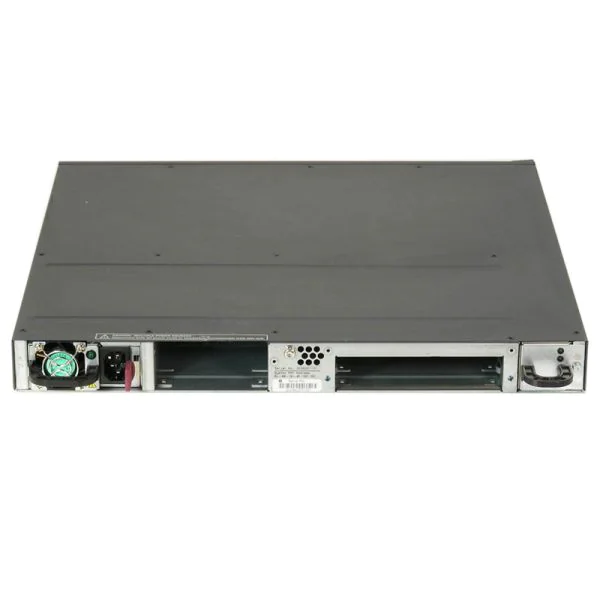

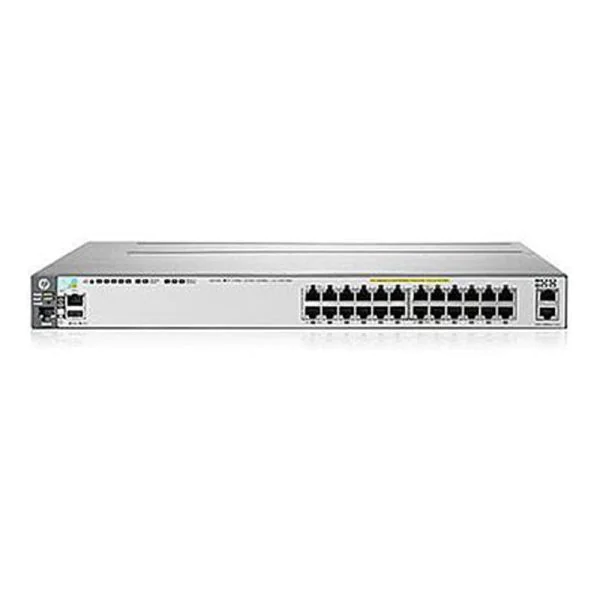

J9587A, HKShanhai Group Limited 3800 Series Switch, 24xGE PoE+/2x10GE SFP+

J9587A Specification

Type

HP E3800-24G-PoE+-2XG Switch

Physical specifications

Dimensions (D X W X H)

46.74 x 44.27 x 4.32 cm (18.4 x 17.43 x 1.7 in) (1U height)

Weight

7.46 kg (16.45 lb)

Technical specifications

Fan tray

1 x J9582A

1 fan tray slot

Memory and processor

HKShanhai Group Limited ProVision ASIC/ARM @ 350 MhzHP ProVision ASIC/ARM @ 350 Mhz

Freescale PowerPC @ 1200 MHz, 4 GB flash, 2 GB SDRAM

Packet buffer size: 18MB dynamic

Ports

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASE-TX: half or full

1000BASE-T: full only

2 RJ-45 10-GbE ports IEEE 802.3an-2006 Type 10GBASE-T

Duplex: full only

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

Electrical specifications

Power supplies (2 power supply slots 1 minimum power supply required includes)

1 x J9580A (HP X312 1000 W 100-240 V ac to 54 V dc power supply)

Maximum heat dissipation

434 BTU/hr (457.87 kJ/hr)

Voltage

100-120/200-240 V ac

Current

9.4/7.8 A

Idle power

71 W

Maximum power rating

127 W

PoE power

720 W

Frequency

50/60 Hz

Environmental specifications

Operating temperature

0° to 55°C (32° to 131°F)

Operating relative humidity

15% to 95% @ 40°C (104°F), noncondensing

Nonoperating/Storage temperature

-40° to 70°C (-40° to 158°F)

Nonoperating/Storage relative humidity

15% to 90% @ 65°C (149°F), noncondensing

Altitude

Up to 3 km (10,000 ft)

Acoustic

Power: 48 dB, Pressure: 32.6 dB

Performance specifications

1000Mb latency

<2.8 μs (LIFO 64-byte packets)

10 Gb/s latency

<1.9 μs (LIFO 64-byte packets)

Throughput (64-byte packets)

65.4 million packets per sec

Switching capacity

88 Gb/s

Routing table size

10000 entries

MAC address table size

65500 entries

Immunity specifications

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3; 3 V/m

EFT/Burst

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

Surge

IEC 61000-4-5; 1 or 2 kV ac

Conducted

IEC 61000-4-6; 3 V

Power frequency magnetic field

IEC 61000-4-8; 1 A/m, 50 or 60 Hz

Voltage dips and interruptions

IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Safety certifications

Safety

EN 60950/IEC 60950; UL 60950; CAN/CSA 22.2 No. 60950; EN 60825

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

Standards and protocols

Device management

RFC 1591 DNS (client)

RFC 2576 (Coexistence between SNMP V1, V2, V3)

RFC 2579 (SMIv2 Text Conventions)

RFC 2580 (SMIv2 Conformance)

RFC 3416 (SNMP Protocol Operations v2)

RFC 3417 (SNMP Transport Mappings)

HTML and telnet management

General protocols

IEEE 802.1ad Q-in-Q

IEEE 802.1AX-2008 Link Aggregation

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1v VLAN classification by Protocol and Port

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3af Power over Ethernet

IEEE 802.3x Flow Control

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 868 Time Protocol

RFC 951 BOOTP

RFC 1058 RIPv1

RFC 1350 TFTP Protocol (revision 2)

RFC 1519 CIDR

RFC 1542 BOOTP Extensions

RFC 2030 Simple Network Time Protocol (SNTP) v4

RFC 2131 DHCP

RFC 2453 RIPv2

RFC 2548 (MS-RAS-Vendor only)

RFC 3046 DHCP Relay Agent Information Option

RFC 3575 IANA Considerations for RADIUS

RFC 3576 Ext to RADIUS (CoA only)

RFC 3768 VRRP

RFC 4675 RADIUS VLAN & Priority

RFC 3768 VRRP

RFC 4675 RADIUS VLAN & Priority

RFC 5798 VRRP (exclude Accept Mode and sub-sec timer)

RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification

UDLD (Uni-directional Link Detection)

IP multicast

RFC 3376 IGMPv3 (host joins only)

RFC 3973 Draft 2 PIM Dense Mode

RFC 4601 Draft 10 PIM Sparse Mode

IPv6

RFC 1981 IPv6 Path MTU Discovery

RFC 2080 RIPng for IPv6

RFC 2081 RIPng Protocol Applicability Statement

RFC 2082 RIP-2 MD5

RFC 2375 IPv6 Multicast Address Assignments

RFC 2460 IPv6 Specification

RFC 2464 Transmission of IPv6 over Ethernet Networks

RFC 2710 Multicast Listener Discovery (MLD) for IPv6

RFC 2925 Remote Operations MIB (Ping only)

RFC 3019 MLDv1 MIB

RFC 3315 DHCPv6 (client only)

RFC 3484 Default Address Selection for IPv6

RFC 3587 IPv6 Global Unicast Address Format

RFC 3596 DNS Extension for IPv6

RFC 3810 MLDv2 (host joins only)

RFC 4022 MIB for TCP

RFC 4087 IP Tunnel MIB

RFC 4113 MIB for UDP

RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers

RFC 4251 SSHv6 Architecture

RFC 4252 SSHv6 Authentication

RFC 4253 SSHv6 Transport Layer

RFC 4254 SSHv6 Connection

RFC 4291 IP Version 6 Addressing Architecture

RFC 4293 MIB for IP

RFC 4294 IPv6 Node Requirements

RFC 4419 Key Exchange for SSH

RFC 4443 ICMPv6

RFC 4541 IGMP & MLD Snooping Switch

RFC 4861 IPv6 Neighbor Discovery

RFC 4862 IPv6 Stateless Address Auto-configuration

RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

RFC 5340 OSPFv3 for IPv6

RFC 5453 Reserved IPv6 Interface Identifiers

RFC 5519 Multicast Group Membership Discovery MIB (MLDv2 only)

RFC 5722 Handling of Overlapping IPv6 Fragments

RFC 6620 FCFS SAVI

draft-ietf-savi-mix

MIBs

IEEE 802.1ap (MSTP and STP MIB’s only)

IEEE 8021-Bridge-MIB (2008)

IEEE 8021-Q-Bridge-MIB (2008)

RFC 1155 Structure & ID of Mgmt Info for TCP/IP Internets

RFC 1213 MIB II

RFC 1493 Bridge MIB

RFC 1724 RIPv2 MIB

RFC 1850 OSPFv2 MIB

RFC 2021 RMONv2 MIB

RFC 2096 IP Forwarding Table MIB

RFC 2613 SMON MIB

RFC 2618 RADIUS Client MIB

RFC 2620 RADIUS Accounting MIB

RFC 2665 Ethernet-Like-MIB

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 2787 VRRP MIB

RFC 2863 The Interfaces Group MIB

RFC 2925 Ping MIB

RFC 2932 IP (Multicast Routing MIB)

RFC 2933 IGMP MIB

RFC 4836 Managed Objects for 802.3 Medium Attachment Units (MAU)

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

RFC 3176 sFlow

RFC 3411 SNMP Management Frameworks

RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP)

RFC 3413 Simple Network Management Protocol (SNMP) Applications

RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)

RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)

RFC 5424 Syslog Protocol

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

SNMPv1/v2c/v3

XRMON

OSPF

RFC 2328 OSPFv2

RFC 3101 OSPF NSSA

RFC 3623 Graceful OSPF Restart (Unplanned Outages only)

RFC 5340 OSPFv3 for IPv6

QoS/CoS

RFC 2474 DiffServ Precedence, including 8 queues/port

RFC 2475 DiffServ Architecture

RFC 2597 DiffServ Assured Forwarding (AF)

RFC 2598 DiffServ Expedited Forwarding (EF)

Security

IEEE 802.1X Port Based Network Access Control

RFC 1321 The MD5 Message-Digest Algorithm

RFC 1492 TACACS+

RFC 2818 HTTP Over TLS

RFC 2865 RADIUS (client only)

RFC 2866 RADIUS Accounting

RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP)

Access Control Lists (ACLs)

MAC Authentication

MAC Lockdown

MAC Lockout

Port Security

Secure Sockets Layer (SSL)

SSHv1/SSHv2 Secure Shell

SSHv2 Secure Shell

Web Authentication
