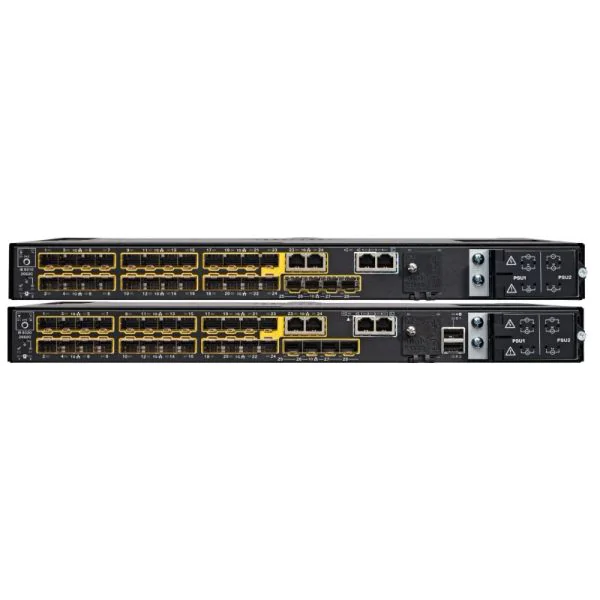

HKShanhai Group Limited IE-9310-26S2C-E is a versatile industrial switch designed to meet the rigorous demands of modern networks. This switch offers exceptional advantages such as robust performance, high scalability, and secure transmission. It is ideal for engineers and procurement professionals in industries like manufacturing, transportation, and energy, providing reliable connectivity for complex environments.
IE-9310-26S2C-E Product Highlights
- 24 GE SFP Downlinks
- 4 GE SFP Uplinks
- Industrial-grade durability
- Enhanced security features
- High network scalability
Product Features Comparison
| Model | Ports | Uplinks | Downlinks | Industrial Grade | Scalability | Security |
|---|---|---|---|---|---|---|
| IE-9310-26S2C-E | 24 GE | 4 GE SFP | 24 GE SFP | Yes | High | Enhanced |
| IE-2000-16PTC-G | 16 FastE | 2 GE SFP | 16 FastE | Yes | Moderate | Standard |
| IE-4000-8GT4G-E | 8 GE | 4 GE SFP | 8 GE | Yes | High | Enhanced |
| IE-4010-24S8P | 24 GE | 8 GE SFP | 24 GE SFP | Yes | Very High | Advanced |
| IE-3300-8T2S-E | 8 GE | 2 SFP | 8 GE | Yes | Moderate | Standard |
| IE-9300-16T4S | 16 GE | 4 SFP | 16 GE | Yes | High | Enhanced |
IE-9310-26S2C-E Product Application Scenarios
- Factory automation networks
- Transportation systems
- Energy grid management
Optional Add-ons
| Model | Description |
|---|---|
| SFP-10G-SR | 10GBASE-SR SFP+ Transceiver Module |
| PWR-IE50W-AC | 50W AC Power Supply |
| IE-SFP-1G-LX | 1000BASE-LX/LH SFP transceiver module |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited IE-9310-26S2C-E. Access the detailed IE-9310-26S2C-E datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited IE-9310-26S2C-E Specification
IE-9310-26S2C-E Specifications |
|
| Total ports | 28 |
| Downlinks | 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
|
Uplinks (SFP/SFP+) |
4 ports 1000M |
| Software license (default) | Network Essentials |
| Hardware |
4-GB DRAM 8-GB onboard flash memory |
| Removable storage | USB SD card |
| Alarms |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | Dual AC/DC power inputs |
| Dimensions (H x W x D) | 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-HÂ / PWR-RGD-LOW-DC-H |
| Weight |
12.2 lb (5.53 kg) |
| Mounting | Rack mount |
| Power consumption | 61W |
| Forwarding rate | 28 Gbps (line rate/nonblocking) |
| Switching bandwidth | 56 Gbps (switching bandwidth is full-duplex capacity) |
| Number of queues / port | 8 egress |
| Unicast MAC addresses | 16,000 |
| Internet Group Management Protocol (IGMP) multicast groups | 1000 |
| VLANs | 1024 |
| IPv4 indirect routes | 3044 |
| IPv6 indirect routes | 1522 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control List (ACL) entries (port ACL [PACL], VLAN ACL [VACL], router ACL [RACL]) | 1408 |
| DRAM | 4 GB |
| Flash (user accessible) | 2.5 GB |
| SD card capacity | 4 GB |
| SD Access Fabric Edge Support | Yes (32 VNs) |
| SGT/DGT policies | 2000 |
| IPv4 to SGT binding | 10000 |
| Maximum SVIs | 984 |
| SXP Sessions | 200 |
