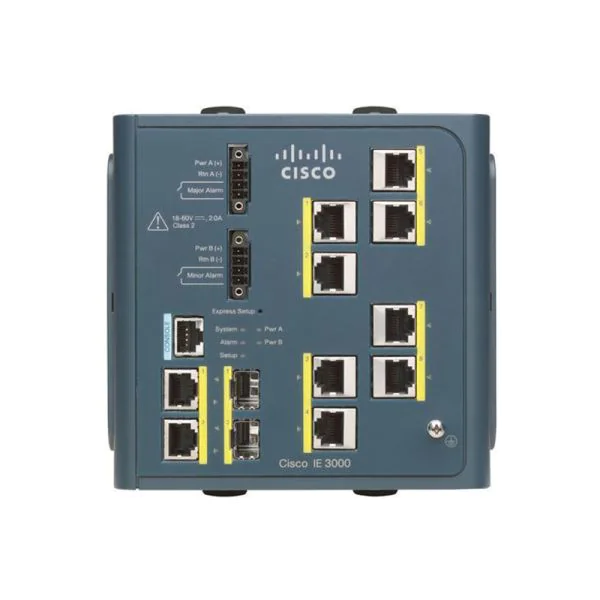

The HKShanhai Group Limited IE-3000-8TC-E is an enterprise-grade switch designed to meet the rigorous demands of industrial environments. As part of the HKShanhai Group Limited IE 3000 Series, this high-performance switch offers a robust set of features, including enhanced security, reliable connectivity, and seamless integration capabilities, making it an optimal choice for industrial networking solutions. With its comprehensive support for various network protocols and an intuitive management interface, the HKShanhai Group Limited IE-3000-8TC-E ensures that critical applications run efficiently and without interruption, providing businesses with the scalability and reliability they need.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Model | IE-3000-8TC-E | IE-4010-16S12P | IE-5000-12S12P-10G |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Fast Ethernet Ports | 8 | 16 | 12 |
| Gigabit Combo Uplinks | 2 | 12 | 12 |
| Operating Temperature | -40 to 75°C | -40 to 75°C | -40 to 85°C |
| Power Consumption | 12W | 60W | 120W |
Optional Add-ons
| Model Number | Description |
| PWR-IE3000-AC | Power supply for HKShanhai Group Limited IE 3000 Series |
| SFP-GE-T | Gigabit Ethernet transceiver module |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module |
HKShanhai Group Limited IE-3000-8TC-E Specification
Forwarding rate based on 64-byte packets: 6.5 Mpps
128 MB DRAM
64 MB Compact Flash memory
Configurable up to 8000 MAC addresses (Layer 2)
Configurable up to 2000 MAC addresses (Layer 3)
Configurable up to 256 IGMP multicast groups (Layer 2)
Configurable up to 1000 IGMP groups and multicast routes (Layer 3)
Configurable up to 3,000 unicast routes (Layer 3)
Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling
1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)
100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
System-status LED: System, link status, link duplex, link speed, indications
-40°C to +70°C (Vented Enclosure ??40 LFM Air Flow)
-40°C to +60°C (Sealed Enclosure ??0 LFM Air Flow)
-24°C to +75°C (Fan or Blower equipped Enclosure ??200 LFM Air Flow)
-40°C to +85°C (IEC 60068-2-2 Environmental Type Testing ??16 hours)
Storage temperature: -40°C to +85°C
Operating relative humidity: 10 to 95% (non-condensing)
Operating altitude: Up to 13,000 ft (3963m)
Storage altitude: Up to 15,000 ft (4573m)
Get More Information
Discover unbeatable prices and fast shipping for the IE-3000-8TC-E. Access the detailed IE-3000-8TC-E datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
