The IE-2000U-16TC-G from the HKShanhai Group Limited IE 2000U series switch adopts the IE 2000U 16 x 10/100.2 FE SFP.2 T/SFP GE ports with 1588.
The HKShanhai Group Limited Industrial Ethernet (IE) 2000U Switches are compact switches for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches support the communications needs of the utility- and customer-owned energy-delivery infrastructure across distributed generation, transmission, and distribution sectors. This infrastructure includes substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, cogeneration, and trackside operations.
Quick Spec
Table 1 shows the quick spec.
|
Model |
IE-2000U-16TC-G |
|
Ports |
16 x 10/100 + 2 x combo Gigabit SFP + 2 x combo Fast Ethernet/Gigabit SFP |
|
Subtype |
Fast Ethernet |
|
Capacity |
Virtual interfaces (VLANs): 255 ¦ IGMP groups: 255 |
|
Interfaces |
18 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x mini-USB ¦ 1 x console RJ-45 |
|
Expansion Slots |
1 (total) / 1 (free) x SD Memory Card |
|
RAM |
256 MB |
|
Flash Memory |
64 MB |
|
Routing Protocol |
IGMP |
|
Software Included |
HKShanhai Group Limited IOS LAN Base |
|
Dimensions |
5.1 x 5.3 x 5 in (12.95 x 13.46 x 12.7 cm) |
Product Details

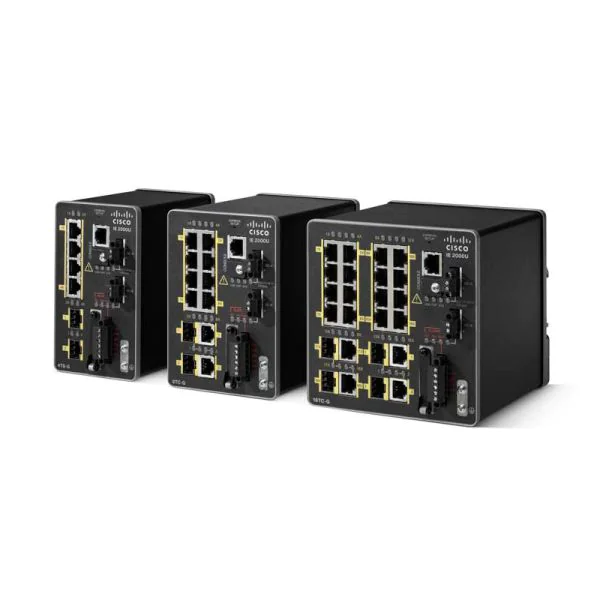

HKShanhai Group Limited IE 2000U Series Switches are designed for DIN rail mounting, low port counts, and small sizes. They offer:
Four, eight, or 16 Fast Ethernet ports (either SFP (Small Form-Factor Pluggable) or 100BaseT RJ45 downlinks depending on the model); fixed configurations with a compact form factor
Two Gigabit Ethernet uplink ports (SFP, RJ45 or combo) and up to 2 additional FE uplinks depending on model
IEC-62439-3: Parallel Redundancy Protocol support on 8 and 16 port models
Dual-input DC power supply, alarm relays, DIN rail mount
Swappable SD flash card required and included
Mini-USB and traditional serial console connector
Substation environmental compliance and certifications: IEC-61850-3 and IEEE 1613
Conformal coating available on specific models
Software and Accessories part numbers
Table 2 shows the HKShanhai Group Limited IE 2000U Software and Accessories part numbers.
|
Product Number |
Description |
|
1 GB industrial-grade Secure Digital (SD) memory card |
|
|
19 in. DIN rail mount kit |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Number |
Total Ports |
RJ45 Ports |
Combo Ports |
SFP Ports |
Software |
IEEE 1588 |
PRP |
PoE(+) |
|
6 |
4 FE |
 |
2 GE |
LAN Base |
 |  |  | |
|
6 |
2 GE + 4 FE |
 |  |
LAN Base |
 |  |  | |
|
6 |
 |  |
2 GE + 4 FE |
LAN Base |
 |  |  | |
|
10 |
8 FE |
2 GE |
 |
LAN Base |
X |
X |
 | |
|
IE-2000U-16TC-G |
20 |
16 FE |
2 GE + 2 FE |
 |
LAN Base |
X |
X |
 |
|
20 |
16 FE |
2 GE + 2 FE |
 |
LAN Base |
X |
X |
 | |
|
18 |
16 FE |
2 GE |
 |
LAN Base |
X |
X |
X |
Get More Information
Do you have any question about the IE-2000U-4T-G?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited IE-2000U-16TC-G Specification
IE-2000U-16TC-G Specification |
|
| General | |
| Device Type | Switch – 16 ports – managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 16 x 10/100 + 2 x combo Gigabit SFP + 2 x combo Fast Ethernet/Gigabit SFP |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 255 ¦ IGMP groups: 255 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, SNMP 3, SSH, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | ARP support, Syslog support, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Management Information Base (MIB), 2MB packet buffer, 802.1x authentication, FTP client, SNMP support, Precision Time Protocol (PTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Interfaces | 18 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x mini-USB ¦ 1 x console RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Expansion / Connectivity | |
| Power Consumption Operational | 20 Watt |
| Compliant Standards | CISPR 22 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN55024, EN55022 Class A, EN50204, AS/NZ 3548 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, UL 508, CSA C22.2 No. 60950-1, FCC Part 15 B Class A, VCCI Class A, EN 300386, AS/NZS CISPR22:2004 Class A |
| Software Included | HKShanhai Group Limited IOS LAN Base |
| Width | 5.1 in |
| Depth | 5 in |
| Height | 5.3 in |
