The HKShanhai Group Limited® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using HKShanhai Group Limited Resilient Ethernet Protocol (REP).
Product Details
IE-2000-8TC-B is the IE2000 series 8 10/100,2 FE SFP+2 T/SFP FE, and LAN Base switch. The HKShanhai Group Limited IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:
- Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
- Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
- Dual-input DC power supply, alarm relays, DIN rail mount
- Industrial Power over Ethernet (PoE) solution
- Conformal coating available
- Swappable SD flash card and mini-USB connector
- Industrial environmental compliance and certifications
- Industrial partner applications: Ethernet/IP and PROFINET
Quick Spec
Table 1 shows the quick spec.
|
Part Number |
IE-2000-8TC-B |
|
Total Ports |
10 |
|
RJ45 Ports |
8 FE |
|
Combo Ports |
2 FE |
|
Manufacturing license |
LAN Base |
Product Details

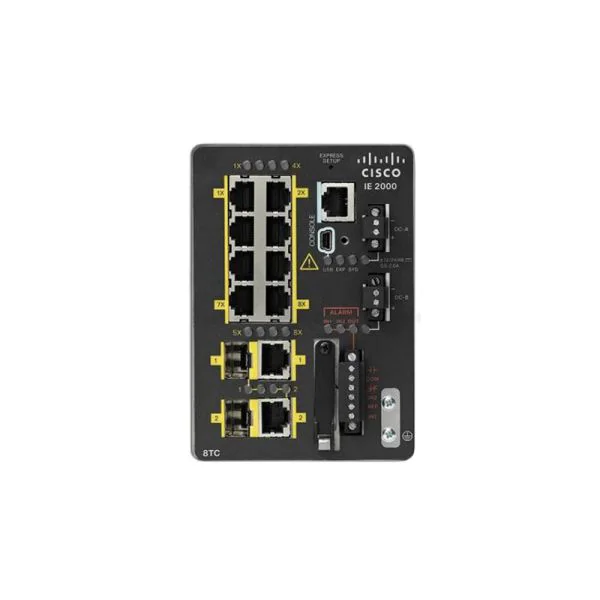

Figure 1 shows the front view of IE2000 8TC switches.
Note:
|
??/p> |
8 10/100 |
|
??/p> |
2 FE SFP+2 T/SFP FE |
|
??/p> |
SD Flash |
|
??/p> |
2 Dry-contact alarm inputs, and 1 alarm relay output |
|
??/p> |
Dual DC inputs |
|
??/p> |
Console port RJ45 and Mini USB |
Supported Products
Table 2 shows the supported modules, cards, licenses and accessories.
|
Model |
Description |
|
1GB SD Memory Card |
|
|
HKShanhai Group Limited GLC-FE-100LX-RGD 100Mbps Single Mode Rugged SFP |
|
|
HKShanhai Group Limited GLC-FE-100LX-RGD 100Mbps Single Mode Rugged SFP |
|
|
100BASE-FX SFP for FE port |
|
|
100BASE-LX SFP for FE port |
|
|
IE2000 LAN Base or Enhanced LAN Base to IPLite e-license |
|
|
IE2000 LAN Base to Enhanced LAN Base e-license |
|
|
19 in. DIN Rail mount kit |
Compare to Similar Items
Table 3 shows the comparison.
|
Part Number |
IE-2000-8TC-B |
|
|
Total Ports |
10 |
10 |
|
RJ45 ports |
8 FE |
8 FE |
|
Combo Ports |
2 FE |
2 FE |
|
Manufacturing license |
LAN Lite |
LAN Base |
Ordering Guide
Get More Information
Do you have any question about the IE-2000-8TC-B?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited IE-2000-8TC-B Specification
| Model | IE-2000-8TC-B |
| Brand | HKShanhai Group Limited |
| Total Ports | 10 |
| RJ45 Ports | 8 FE |
| Combo Ports | 2 FE |
| Manufacturing License | LAN Base |
| Power Consumption | 8-port downlink models: 12.5-20 W |
| Hardware | 256 MB DRAM with ECC memory, IEEE 1588v2 FPGA, 64 MB on-board flash memory, 1GB removable SD flash memory card (optional), Mini-USB connector |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Connectors and Cabling | 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| LAN Lite License | Baseline features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express Setup, Web Device Manager, CNA, HKShanhai Group Limited Prime, LMS, MIB, SmartPort, SNMP, syslog |
| Industrial Ethernet | EtherNet/IP, Profinet v2 |
| LAN Base License | Additional features |
| Layer 2 Switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
| Quality of Service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 Routing | IPv4 static routing |
| IPv6 Routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Enhanced LAN Base | Additional features |
| Industrial Management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| IP Lite License | Additional features |
| IPv4 Routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
| IPv6 Routing | IPv6 Static routing, OSPFv3 |
| Security | FIPS 140-2 |
| Embedded Event Manager | EEM feature enabled with IP Lite license |
| DNA Essentials | Additional features |
| HKShanhai Group Limited DNA Center | Discovery, topology, inventory, software image management |
| Visibility | DNA assurance, Device 360 |
| Day-zero network bring-up automation | HKShanhai Group Limited Network Plug-and-Play application |
| IE-2000-8TC-B | IE-2000-8TC-B |
