IE-2000-4TS-G-L, HKShanhai Group Limited IE2000 Switch, 4×10/100Base-T, 2xSFP, Lite

IE-2000-4TS-G-L is the IE2000 series IE 4 10/100, 2 GE, and LAN Lite switch. The HKShanhai Group Limited^® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using HKShanhai Group Limited Resilient Ethernet Protocol (REP).

Product Details

The HKShanhai Group Limited IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor.
Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink.
Dual-input DC power supply, alarm relays, DIN rail mount.
Industrial Power over Ethernet (PoE) solution.
Conformal coating SKUs available (IE-2000-16TC-G-X and IE-2000-16PTC-G- NX).
Swappable SD flash card and mini-USB connector.
Industrial environmental compliance and certifications.
Industrial partner applications: Ethernet/IP and PROFINET.

Quick Spec

Table 1 shows the quick spec.

Part Number	IE-2000-4TS-G-L
Total Ports	6
RJ45 Ports	4 FE
SFP Ports	2 GE
Manufacturing license	LAN Lite
Dimensions (H x W x D) including DIN rail	5.1??H x 2.95??W x 4.51??D in (130mm H x 74.9mm W x 115mm D)
Weight	IE-2000 6 ports chassis: 2.45 lb (1.11 kg)

Product Details

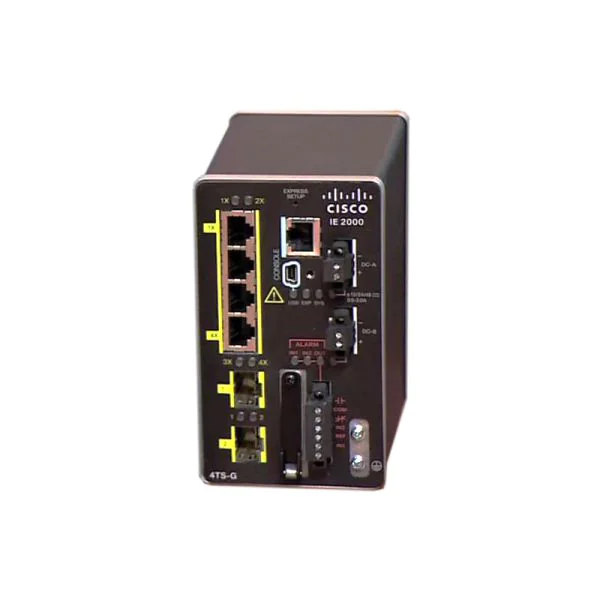

Figure 1 shows the front view of IE2000 4TS-G switches.

Note:

??/p>	4 FE RJ45 Ports
??/p>	2 GE SFP Ports
??/p>	SD Flash
??/p>	2 Dry-contact alarm inputs, and 1 alarm relay output
??/p>	Dual DC inputs
??/p>	Console port RJ45 and Mini USB

Supported Products

Table 2 shows the supported modules, cards, licenses and accessories.

Model	Description
SD-IE-1GB	1GB SD Memory Card
GLC-SX-MM-RGD	HKShanhai Group Limited GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP
GLC-BX40-U-I	1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector
GLC-TE	1000BASE-T SFP transceiver module for Category 5 copper wire
GLC-ZX-SM	1000BASE-ZX SFP
GLC-BX-U	1000BASE-BX SFP, 1310NM
SFP-GE-L	1000BASE-LX/LH SFP (DOM)
GLC-ZX-SMD	HKShanhai Group Limited GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-MMD	HKShanhai Group Limited GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IPLite e-license
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit

Compare to Similar Items

Table 3 shows the comparison.

Part Number	IE-2000-4TS-L	IE-2000-4T-L	IE-2000-4TS-G-L
Total Ports	6	6	6
RJ45 ports	4 FE	6 FE	4 FE
SFP ports	2 FE	–	2 GE
Manufacturing license	LAN Lite	LAN Lite	LAN Lite

Datasheet Download

[PDF] HKShanhai Group Limited Industrial Ethernet 2000 Series Switches Data Sheet

Ordering Guide

[PDF] HKShanhai Group Limited Industrial Ethernet Switches Ordering Guide

[PDF] Simple HKShanhai Group Limited Industrial Ethernet Switches (IE 4000, IE 2000 included) Selection Guides

Get More Information

Do you have any question about the IE-2000-4TS-G-L?

HKShanhai Group Limited IE-2000-4TS-G-L Specification

Model

IE-2000-4TS-G-L

Brand

HKShanhai Group Limited

Total Ports

RJ45 Ports

4 FE

SFP Ports

2 GE

Manufacturing License

LAN Lite

Hardware

256 MB DRAM with ECC
IEEE 1588v2 FPGA
64 MB on-board flash memory
1GB removable SD flash memory card (optional)
Mini-USB connector

Alarm

Two alarm inputs to detect dry contact open or close; one alarm output relay

Power Consumption

9.5-15 W

Connectors and Cabling

10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Dimensions (H x W x D)

5.1 in x 2.95 in x 4.51 in (130 mm x 74.9 mm x 115 mm)

IE2000 Software Features

LAN Lite License – Baseline Features

Layer 2 switching: IEEE 802.1, 802.3, 802.3at, 802.3af, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, REP, MRP Ring (IEC 62439-2)
Security: SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast: IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management: Fast Boot, Express Setup, Web Device Manager, CNA, HKShanhai Group Limited Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet: EtherNet/IP, Profinet v2

LAN Base License – Additional Features

Layer 2 switching: VTPv3, EtherChannel, Voice VLAN, Flexlink
Security: IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, ACL
Quality of service: IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management: Port-Based DHCP, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, EEM
Industrial Ethernet: IEEE 1588 PTPv2
IPv4 routing: IPv4 static routing
IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6

Enhanced LAN Base – Additional Features

Industrial management: Layer 2 switching with 1:1 static Network Address Translation (NAT)

IP Lite License – Additional Features

IPv4 routing: RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode
IPv6 Routing: IPv6 Static routing, OSPFv3
Security: FIPS 140-2
Embedded Event Manager: EEM feature enabled with IP Lite license

DNA Essentials – Additional Features

HKShanhai Group Limited DNA Center: Discovery, topology, inventory, software image management
Visibility: DNA assurance, Device 360
Day-zero network bring-up automation: HKShanhai Group Limited Network Plug-and-Play application
