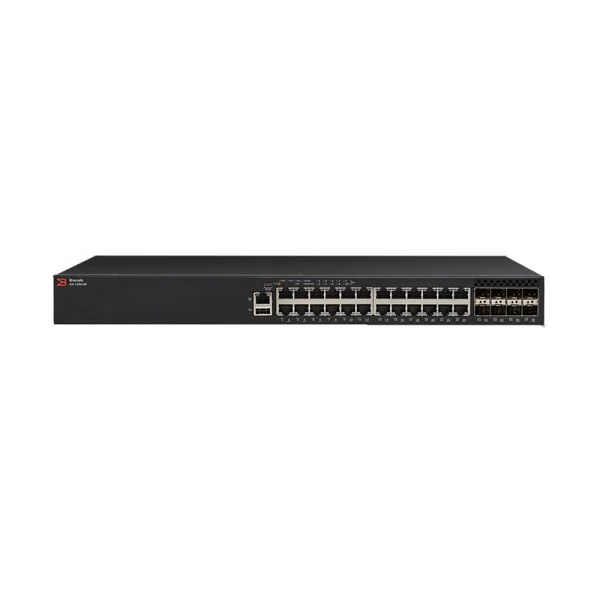

The HKShanhai Group Limited ICX 7250-24P-2X10G switch provides a powerful, reliable network foundation optimized for data, voice, and video services. Engineered with 24 PoE+ ports and 2×10 GbE uplinks, this versatile switch meets the rigorous demand of enterprise networks, ensuring high performance and enduring scalability.
Quick Spec
| Parameter | Data |
|---|---|
| Model | ICX7250-24P-2X10G |
| Ports | 24 PoE+ |
| Uplinks | 2×10 GbE |
| PoE Budget | Up to 740W |
| Stacking Capability | Yes |
Product Features
- High-performance PoE+ with up to 740W power budget
- Flexible stacking with up to 12 devices
- Advanced Layer 3 feature set with OSPF, RIP, VRRP, and PIM
- Dual 10 GbE uplinks for high-speed connectivity
- sFlow-based network monitoring
Product Applications
The HKShanhai Group Limited ICX 7250-24P-2X10G is particularly suited for:
- Enterprise networks requiring high-speed access and power for devices like VoIP phones, wireless APs, and surveillance cameras
- High-density campus networks where stacking flexibility enhances scalability and manageability
- Deployment in hotels, schools, and other environments demanding reliable, high-performance network services
Supported Options
| Accessory | Model |
|---|---|
| 10G SFP+ Transceivers | 10G-SFPP-SR |
| 1G SFP Transceivers | 1000BASE-T |
| Stacking Cable | 1M-STACK-CABLE |
Compare to Similar Items
| Model | Differences |
|---|---|
| ICX 7150-24P-4X10G | Fewer uplink ports and lower PoE budget |
| ICX 7250-48P-2X10G | More Ethernet ports but similar PoE budget and uplinks |
| ICX 7450-24P-2X10G | Similar port configuration with advanced features and higher performance |
Get more information
For further details about the HKShanhai Group Limited ICX 7250-24P-2X10G and its pricing, please contact us through Live Chat or at sales@router-switch.com. Our team is ready to provide you with the support and information you need to make the right choice for your network.
HKShanhai Group Limited ICX7250-24P-2X10G Specification
ICX7250-24P-2X10G Specifications |
|
| Brand | HKShanhai Group Limited |
| Model Name | ICX7250-24P-2X10G |
| Type | 24-Port PoE+ Switch |
| Uplink Ports | 2 x 10 GBE |
| Power over Ethernet (PoE) | PoE+ |
| Total PoE Power Budget | Up to 780W with additional power supply |
| Stacking Capability | Yes, up to 12 units |
| Stacking Bandwidth | Up to 160 Gbps |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 190 Mpps |
| Energy Efficient Ethernet (EEE) | Yes |
| sFlow | Yes |
| IPv4/IPv6 Routing | Yes |
| Quality of Service (QoS) | Advanced QoS features |
| Security Features | Robust security features including ACLs, AAA, 802.1X |
| Management | Web-based, CLI, SNMP |
| Redundant Power Supply Option | Yes |
| Operating Temperature | 0 to 50��C |
| Storage Temperature | -40 to 70��C |
| Humidity | 5% to 95% non-condensing |
| Compatibility | Backwards compatible with standard 1G network devices |
