The HKShanhai Group Limited HWIC-AP 802.11G and HWIC-AP 802.11A/B/G are Wireless LAN interface cards in the HWIC (High-Speed WAN Interface Card) form factor providing integrated Access Point functionality in the HKShanhai Group Limited 1800 (Modular), HKShanhai Group Limited 2800, and HKShanhai Group Limited 3800 Integrated Services Routers. Enterprise branch office and small-to-medium business customers can run concurrent services of Layer 3 routing, security, Layer 2 switching and now IEEE 802.11 wireless LAN functionality in a single platform. This combination offers ease of configuration, deployment, and management while delivering high performance, security and rich set of services.
Quick Spec

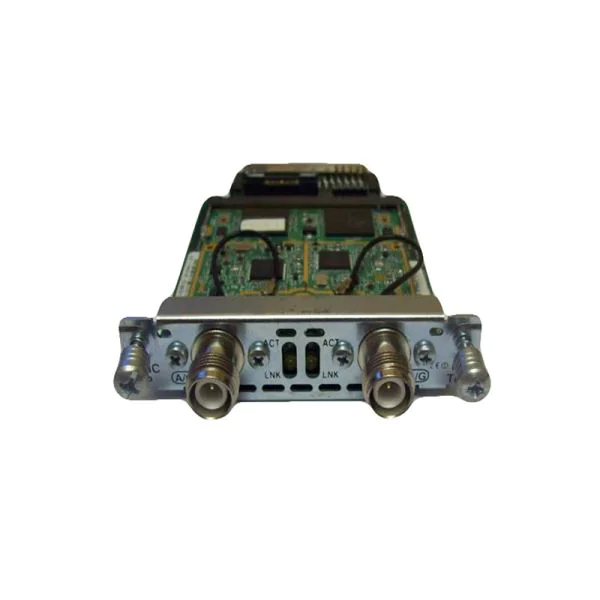

Figure 1 shows the appearance of HWIC-AP-AG-B.
Table 1 shows the quick spec.
|
Product Number |
HWIC-AP-AG-B |
|
Product Description |
HKShanhai Group Limited 802.11 A/B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration) |
|
Supported Router Platforms |
HKShanhai Group Limited 1800 (Modular), HKShanhai Group Limited 2800 and HKShanhai Group Limited 3800 Integrated Services Routers Series: ??HKShanhai Group Limited 1841 ??HKShanhai Group Limited 2801 ??HKShanhai Group Limited 2811 ??HKShanhai Group Limited 2821 ??HKShanhai Group Limited 2851 ??HKShanhai Group Limited 3825 ??HKShanhai Group Limited 3845 |
|
Form Factor |
Single Wide HWIC form factor |
|
Dimensions |
3.09″ x 4.90″ x .76″ |
|
Weight |
163.29 grams (0.36 lbs) (hwic module and swivel dipole antennas) |
Get more information
Do you have any question about the HWIC-AP-AG-B
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited HWIC-AP-AG-B Specification
HWIC-AP-AG-BÂ Specification |
||
|
Product Number |
HWIC-AP-AG-B |
|
|
Product Description |
HKShanhai Group Limited 802.11 A/B/G Access Point High Speed Wan Interface Card for the Americas (FCC configuration) |
|
|
Supported Router Platforms |
HKShanhai Group Limited 1800 (Modular), HKShanhai Group Limited 2800 and HKShanhai Group Limited 3800 Integrated Services Routers Series: ??HKShanhai Group Limited 1841 ??HKShanhai Group Limited 2801 ??HKShanhai Group Limited 2811 ??HKShanhai Group Limited 2821 ??HKShanhai Group Limited 2851 ??HKShanhai Group Limited 3825 ??HKShanhai Group Limited 3845 |
|
|
Form Factor |
Single Wide HWIC form factor |
|
|
Dimensions |
3.09″ x 4.90″ x .76″ |
|
|
Weight |
163.29 grams (0.36 lbs) (hwic module and swivel dipole antennas) |
|
|
IEEE Protocols |
??IEEE 802.11a (HWIC-AP-AG-x) ??IEEE 802.11b/g (HWIC-AP-AG-x), (HWIC-AP-AG-x) ??IEEE 802.11e QoS* ??IEEE 802.11i Wireless Security* ??IEEE 802.1x Security ??IEEE 802.1p CoS for Traffic Prioritization ??IEEE 802.1q VLAN *Â Available via future software upgrade |
|
|
Data Rates Supported |
??802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps ??802.11b: 1, 2, 5.5,11 Mbps ??802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
|
|
SSIDs |
6 |
|
|
Wireless VLANs |
6 |
|
|
Frequency Bands and Operating Channels |
Americas (FCC): ??2.412 to 2.462 GHz; 11 channels ??5.15 to 5.35, 5.725 to 5.825 GHz; 12 channels ETSI: ??2.412 to 2.472 GHz; 13 channels Japan (TELEC): ??2.412 to 2.472 GHz; 13 channels Orthogonal Frequency Division Multiplexing (OFDM) ??2.412 to 2.472; 13 channels Complementary Code Keying (CCK) ??5.15 to 5.25 GHz; 4 channels |
|
|
Non Overlapping Channels |
802.11a: Up to 12 |
802.11b/g: 3 |
|
Wireless Modulation |
802.11a ??DBPSK-1 Mbps ??DQPSK-2 Mbps ??CCK-5.5 & 11 Mbps ??BPSK-6 & 9 Mbps ??QPSK-12 &18 Mbps ??16-QAM-24 & 36 Mbps ??64-QAM-48 & 54 Mbps |
802.11b/g ??BPSK-6 & 9 Mbps ??QPSK-12 &18 Mbps ??16-QAM-24 & 36 Mbps ??64-QAM-48 & 54 Mbps |
|
Receive Sensitivity (Typical @FER <10%) |
802.11a 5150 to 5250 MHz ??-92 dBm @ 6 Mbps ??-90 dBm @ 9 Mbps ??-90 dBm @ 12 Mbps ??-89 dBm @ 18 Mbps ??-84 dBm @ 24 Mbps ??-80 dBm @ 36 Mbps ??-76 dBm @ 48 Mbps ??-73 dBm @ 54 Mbps 5250 to 5350 MHz ??-92 dBm @ 6 Mbps ??-91 dBm @ 9 Mbps ??-90 dBm @ 12 Mbps ??-89 dBm @ 18 Mbps ??-85 dBm @ 24 Mbps ??-81 dBm @ 36 Mbps ??-77 dBm @ 48 Mbps ??-74 dBm @ 54 Mbps 5725 to 5805 MHz ??-89 dBm @ 6 Mbps ??-88 dBm @ 9 Mbps ??-86 dBm @ 12 Mbps ??-85 dBm @ 18 Mbps ??-82 dBm @ 24 Mbps ??-79 dBm @ 36 Mbps ??-74 dBm @ 48 Mbps ??-71 dBm @ 54 Mbps |
802.11b ??-94 dBm @ 1 Mb/s ??-93 dBm @ 2 Mb/s ??-92 dBm @ 5.5 Mb/s ??-90 dBm @ 11 Mb/s 802.11g ??-92 dBm @ 6 Mb/s ??-90dBm @ 9Mb/s ??-89dBm @ 12Mb/s ??-87dBm @ 18Mb/s ??-85 dBm @ 24 Mb/s ??-81 dBm @ 36 Mb/s ??-76 dBm @ 48 Mb/s ??-73 dBm @ 54 Mb/s |
|
Maximum Average Conducted Power (Maximum power setting will vary by channel and according to individual country regulations) |
802.11a: 16 dBm (40 mW) |
??802.11b ??HWIC-AP-AG-x: 20 dBm (100mW) ??HWIC-AP-G-x: 19 dBm (80mW) ??Peak conducted power for all HWICs (FCC): Over 200mW ??802.11g: 17 dBm (50 mW) |
|
Range Individual observed performance may differ, since ranges and actual throughput may vary based on numerous environmental factors. |
Data Rate |
Measurements Based on 2.2 dBi Antennas |
|
Outdoor |
Indoor |
|
|
1 Mbps |
2000 ft (610m) |
300 ft (90m) |
|
11 Mbps |
700 ft (213m) |
150 ft (45m) |
|
54 Mbps |
300 ft (90m) |
80 ft (24m) |
