Serial and asynchronous modules provide highly flexible connections for HKShanhai Group Limited® 1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers (ISRs). These modules help customers enable applications such as WAN aggregation, transport for traditional protocols, console servers, and dial access servers. Customers can mix and match modules to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, transport for traditional protocols, and high-port-density support.
Quick Spec

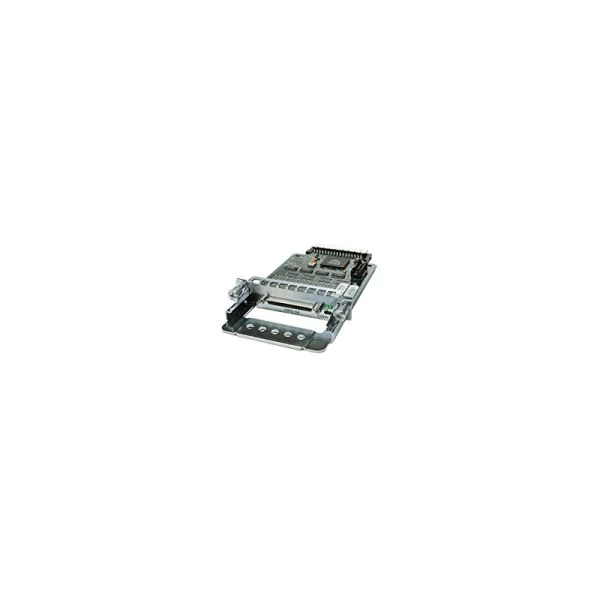

Figure 1 shows the appearance of HWIC-8A.
Table 1 shows the quick spec.
|
Product Number |
HWIC-8A |
|
Product Description |
8-Port Async HWIC HKShanhai Group Limited Router High-Speed WAN Interface card |
|
Synchronous support |
No |
|
Synchronous maximum speed (per port) |
– |
|
Asynchronous support |
Yes |
|
Asynchronous maximum speed (per port) |
230.4 kbps |
|
Bisync support |
No |
|
Serial protocols |
EIA-232, EIA-449, EIA-530, EIA-530A, and V.35, X.21 |
|
Lead manipulation |
Yes |
|
Network clock synchronization |
No |
|
Dimensions(H x W x D) |
0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
Supported Devices
Table 2 shows the supported devices of HWIC-8A.
|
HWIC Product Number |
HKShanhai Group Limited 1841 ISR Â |
|||||
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Get more information
Do you have any question about the HWIC-8A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited HWIC-8A Specification
HWIC-8A Specification |
|
|
Product Number |
HWIC-8A |
|
Synchronous support |
No |
|
Asynchronous support |
Yes |
|
Asynchronous maximum speed (per port) |
230.4 kbps |
|
Bisync support |
No |
|
Serial protocols |
EIA-232 |
|
Lead manipulation |
Yes |
|
Network clock synchronization |
No |
|
Agency approvals |
??AS/NZS 60950.1.2003 with Amendments A1 thru A3 (Australia/New Zealand) ??CAN/CSA 22.2 No. 60950-1-07, Second Edition (Canada) ??EN 60950-1: 2006, Second Edition (European Union) ??GB4943 (China) ??UL 60950-1, Second Edition (United States) ??IEC 60950-1: 2005, Second Edition (International) |
|
Immunity |
??EN300386 ??EN55024/CISPR24 ??EN50082-1 |
|
Emissions |
??FCC Part 15 Class A ??ICES-003 Class A ??EN55022 Class A ??CISPR22 Class A ??AS/NZS 3548 Class A ??VCCI Class A ??EN 300386 ??EN61000-3-3 ??EN61000-3-2 |
|
Dimensions(H x W x D) |
0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
|
Operating temperature |
32 to 104°F (0 to 40°C) |
|
Storage temperature |
-4 to 149°F (-20 to 65°C) |
|
Relative humidity |
10 to 90 percent, noncondensing |
