Serial and asynchronous high-speed WAN interface cards (HWICs) provide highly flexible connections for HKShanhai Group Limited1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. These HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.
HKShanhai Group Limited offers four new serial and asynchronous HWICs:
- ??HKShanhai Group Limited 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card (HWIC-1DSU-T1)
- ??HKShanhai Group Limited 1-Port Serial WAN Interface Card (HWIC-1T)
- ??HKShanhai Group Limited 2-Port Serial WAN Interface Card (HWIC-2T)
- ??HKShanhai Group Limited 2-Port Asynchronous/Synchronous Serial WAN Interface Card (HWIC-2A/S)
Product Applications
These highly flexible interface cards facilitate several important applications:
- ??WAN access and aggregation
- ??Legacy protocol transport
- ??Dial access server
Quick Specs

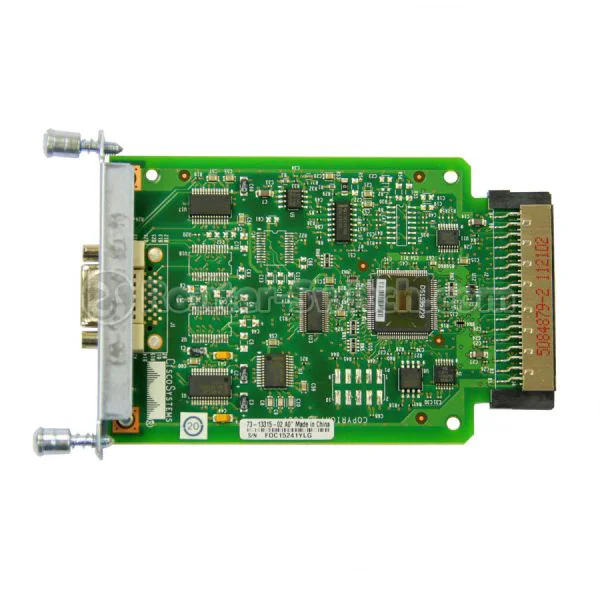

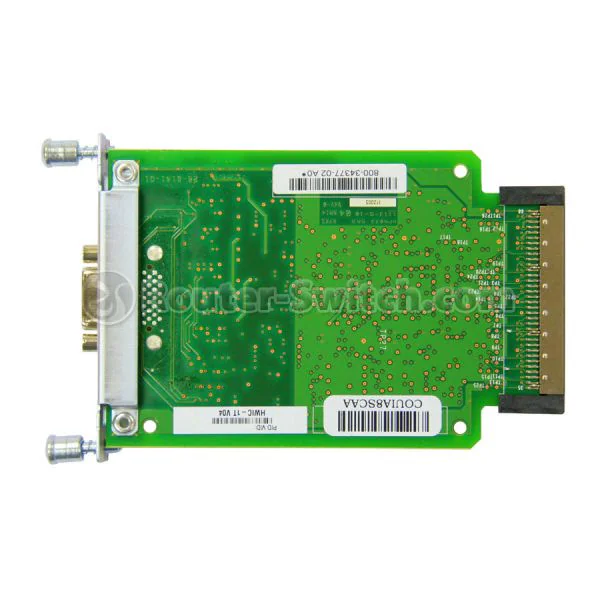

Figure 1 shows the appearance of HWIC-1T
Â
Table 1 shows the Quick Specs.
|
Model |
HWIC-1T |
|
Synchronous Support |
Yes |
|
Synchronous Maximum Speed (Per Port) |
8 Mbps |
|
Asynchronous Support |
Yes |
|
Asynchronous Maximum Speed (Per Port) |
115.2 kbps |
|
Bisync Support |
Yes |
|
Serial Protocols |
EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
|
Network Clock Synchronization |
Yes |
|
NEBS |
Type 2/4 |
|
TelecommPTT |
??TBR1 and 2 ??JATE Digital ??NEBS |
|
Safety Approvals |
??UL 60950 (United States) ??CAN/CSA 22.2, CSA60950 (Canada) ??GB 4943 (China) ??AS/NZS 60950 (Australia/New Zealand) ??EN60950 (Europe) ??IEC 60950 (International) |
|
Immunity |
??EN300386 ??CISPR24 ??EN55024 ??EN50082-1 ??61000-4-2/3/4/5/6/8/11 |
|
Emissions |
??FCC Part 15 Class A ??ICES-003 Class A ??EN55022 Class A ??CISPR22 Class A ??AS/NZSCISPR22 Class A ??VCCI Class A ??EN 300386 ??EN61000-3-2/3 ??CNS13438 |
|
Physical Specifications |
??Singlewide HWIC, no slot restrictions ??Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
|
Environmental Specifications |
??Operating temperature: 32 to 104°F (0 to 40°C) ??NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) ??Storage temperature: -4 to 149°F (-20 to 65°C) ??Relative humidity: 10 to 90%, noncondensing |
Datasheet Download
Get More Information
Do you have any question about the HWIC-1T?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited HWIC-1T Specification
HWIC-1T Specifications |
|
|
Manufacturer |
HKShanhai Group Limited |
|
Part Number |
HWIC-1T |
|
Device Type |
Expansion module |
|
Form factor |
Plug-in module |
|
Specifications |
|
|
Synchronous Support |
Yes |
|
Synchronous Maximum Speed (Per Port) |
8 Mbps |
|
Asynchronous Support |
Yes |
|
Asynchronous Maximum Speed (Per Port) |
115.2 kbps |
|
Bisync Support |
Yes |
|
Serial Protocols |
EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
|
Network Clock Synchronization |
Yes |
|
NEBS |
Type 2/4 |
|
TelecommPTT |
TBR1 and 2 JATE Digital NEBS |
|
Safety Approvals |
UL 60950, CAN/CSA 22.2, CSA60950, GB 4943, AS/NZS 60950, EN60950, IEC 60950 |
|
Immunity |
EN300386, CISPR24, EN55024, EN50082-1, 61000-4-2/3/4/5/6/8/11 |
|
Emissions |
FCC Part 15 Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZSCISPR22 Class A, VCCI Class A, EN 300386, EN61000-3-2/3, CNS13438 |
|
Physical Specifications |
Singlewide HWIC, no slot restrictions Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
|
Environmental Specifications |
Operating temperature: 32 to 104°F (0 to 40°C)  NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) Storage temperature: -4 to 149°F (-20 to 65°C) Relative humidity: 10 to 90%, noncondensing |
