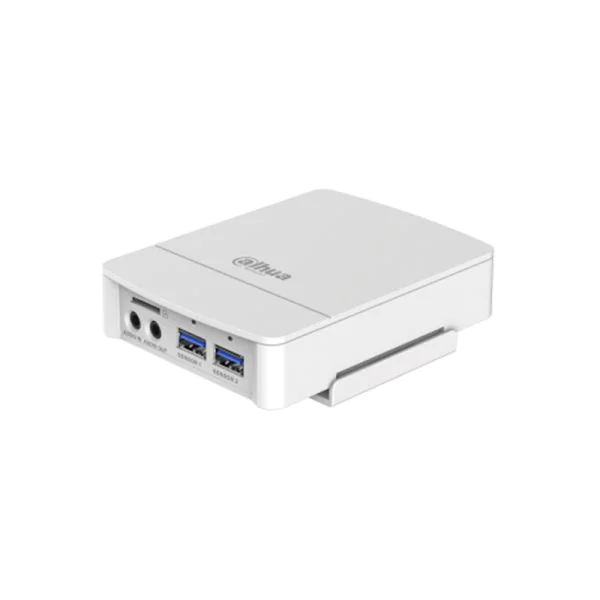

2MP Covert Pinhole Network Camera-Main Box.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HUM8231-E1 |
|
RAM/ROM |
512MB/32MB |
|
S/N Ratio |
More than 50dB |
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Advanced Intelligent Functions |
Face Detection |
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
3 Streams |
|
Resolution |
1080P(1920��1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704��576/704×480)/ VGA(640×480)/ CIF(352��288/342×240) |
Product Details
IPC-HUM8231-E1 provides these features and benefits:
> H.265&H.264 triple-stream encoding
> Support Smart H.265+/H.264+
> 50/60fps@1080P(1920��1080)
> Day/Night(Electronic), WDR, 3DNR, AWB, AGC, BLC
> Smart detection
> Micro SD memory, PoE
> Multiple Lens Unit optional
> Require a Lens Unit to work together
Get More Information
Do you have any question about the IPC-HUM8231-E1
Contact us now via Live Chat or sales@router-switch.com.
Dahua HUM8231-E1 Specification
IPC-HUM8231-E1 Specification |
|
|
Camera |
|
|
RAM/ROM |
512MB/32MB |
|
S/N Ratio |
More than 50dB |
|
Intelligence |
|
|
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
|
Advanced Intelligent Functions |
Face Detection |
|
Video (working together with lens unit) |
|
|
Compression |
H.265+/H.265/H.264+/H.264 |
|
Streaming Capability |
3 Streams |
|
Resolution |
1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/342×240) |
|
Frame Rate |
Main Stream: 1080P(1~50/60fps) |
|
Sub Stream: D1 (1 ~ 25/30fps) |
|
|
Third Stream: 1080P(1~25/30fps) |
|
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.264: 24Kbps~ 9472Kbps H.265: 14Kbps~ 5632Kbps |
|
Day/Night |
Electronic |
|
BLC Mode |
BLC / HLC / WDR(120dB) |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
Off / On (4 Zones, Rectangle) |
|
Region of Interest |
Off / On (4 Zones) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
N/A |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Areas, Rectangle) |
|
Audio |
|
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users/20 Users |
|
Edge Storage |
NAS Local PC for instant recording Micro SD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000) UL: UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
1/1 channel In/Out |
|
RS232 |
1 port |
|
Alarm |
2 channel In: 5mA 5VDC |
|
Electrical |
|
|
Power Supply |
DC12V, PoE(802.3af)(Class 0) |
|
Power Consumption |
<6W (working together with lens unit) |
|
Environmental |
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Storage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
N/A |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal |
|
Dimensions |
110.0mm×82.7mm×24.0mm (4.33”??.26”??.95?? |
