FG-600E is the HKShanhai Group Limited NGFW Middle-range Series FortiGate 601E firewall. The FortiGate 600E /601E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.
Quick Spec
Table 1 shows the quick spec.
|
Sku |
FG-600E |
|
Firewall |
36 Gbps |
|
IPS |
10 Gbps |
|
NGFW |
9.5 Gbps |
|
Threat Protection |
7 Gbps |
|
Interfaces |
2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |
Product Details

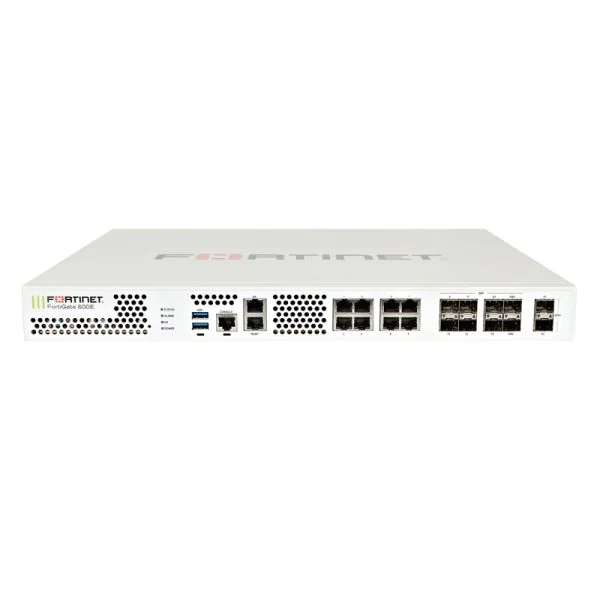

Figure 1 shows the front view of FG-601E. FG-600E is similar with it.
Note:
|
â‘ |
2 USB Ports |
|
â‘¡ |
1 Console Port |
|
â‘¢ |
2x GE RJ45 MGMT/HA Ports |
|
â‘£ |
8x GE SFP Slots |
|
⑤ |
8x GE RJ45 Ports |
|
â‘¥ |
2x 10 GE SFP+ Slots |
Figure 2 shows the rear view of FG-601E. FG-600E is similar with it.
The Optional Accessories & Spares
Table 2 shows the optional accessories or spares of FG-600E.
|
Optional Accessories & Spares |
SKU |
Description |
|
1 GE SFP LX Transceiver Module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 Transceiver Module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
|
|
1 GE SFP SX Transceiver Module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Short Range |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE SFP+ Transceiver Module, Long Range |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
|
|
Optional Power Supply |
AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F |
Related Products
Table 3 shows the bundle models and licenses of FG-600E.
| Types | Model | Description |
| Basic Firewall | FG-600E | 22x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated |
| 1 year bundle | FG-600E-BDL-950-12 | FG-600E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-600E & FC-10-F6H0E-950-02-12) |
| 1 year License | FC-10-F6H0E-950-02-12 | 1 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-600E |
| 3 year bundle | FG-600E-BDL-950-36 | FG-600E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-600E & FC-10-F6H0E-950-02-36) |
| 3 year License | FC-10-F6H0E-950-02-36 | 3 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-600E |
| 5 year bundle | FG-600E-BDL-950-60 | FG-600E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-600E & FC-10-F6H0E-950-02-60) |
| 5 year License | FC-10-F6H0E-950-02-60 | 5 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-600E |
Compare to Similar Items
Table 4 shows the comparison of FG-601E and FG-600E.
|
Sku |
FG-600E |
|
|
Firewall |
36 Gbps |
36 Gbps |
|
IPS |
10 Gbps |
10 Gbps |
|
NGFW |
9.5 Gbps |
9.5 Gbps |
|
Threat Protection |
7 Gbps |
7 Gbps |
|
Interfaces |
2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |
2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |
|
Local Storage |
2x 240 GB SSD |
NIL |
Get More Information
Do you have any question about the FG-600E?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited FG-600E Specification
FG-600E Specification |
|
|
Type |
FORTIGATE 600E |
|
Interfaces and Modules |
|
|
10 GE SFP+ Slots |
2 |
|
GE SFP Slots |
8 |
|
GE RJ45 Interfaces |
8 |
|
GE RJ45 Management Ports |
2 |
|
USB Ports |
2 |
|
RJ45 Console Port |
1 |
|
Local Storage |
NIL |
|
Included Transceivers |
2x SFP (SX 1 GE) |
|
System Performance and Capacity |
|
|
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
36 / 36 / 27 Gbps |
|
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
36 / 36 / 27 Gbps |
|
Firewall Latency (64 byte, UDP) |
2 μs |
|
Firewall Throughput (Packet per Second) |
40.5 Mpps |
|
Concurrent Sessions (TCP) |
8 Million |
|
New Sessions/Second (TCP) |
450,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
20 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2,000 |
|
Client-to-Gateway IPsec VPN Tunnels |
50,000 |
|
SSL-VPN Throughput |
7 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10,000 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) Â |
8 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
5,500 |
|
Application Control Throughput (HTTP 64K) |
15 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
64 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
1024 / 512 |
|
Maximum Number of FortiTokens |
5,000 |
|
Maximum Number of Registered FortiClients |
2,000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput |
10 Gbps |
|
NGFW Throughput |
9.5 Gbps |
|
Threat Protection Throughput |
7 Gbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.75 x 17.0 x 15.0 inches 44.45 x 432 x 380 mm |
|
Form Factor |
1 RU |
|
AC Power Supply |
100–240V AC, 60–50 Hz |
|
Power Consumption (Average / Maximum) |
129 W / 244 W |
|
Current (Maximum) |
6A @ 100V |
|
Heat Dissipation |
832 BTU/h |
|
Redundant Power Supplies |
optional |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
10–90% non-condensing |
|
Noise Level |
59 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
