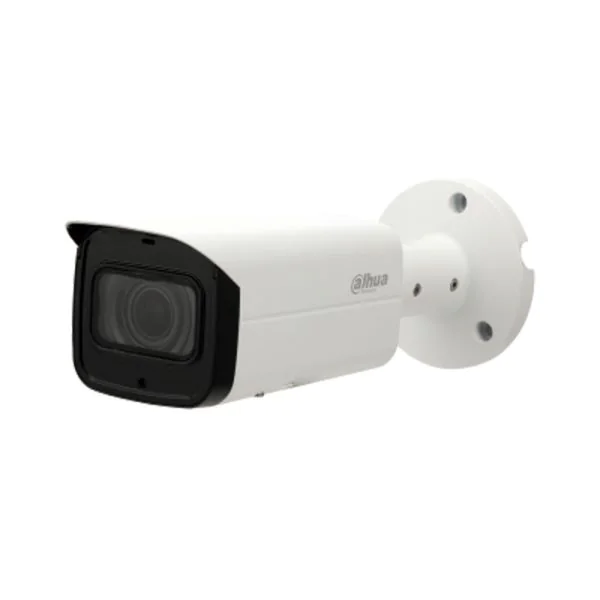

The Dahua IPC-HFW4631T-ASE-M is a high-performance 6MP WDR IR Mini Bullet Network Camera designed to deliver superior image quality and advanced features for enhanced security monitoring. This compact and robust device is ideal for various challenging environments, providing clear and detailed visuals even in low light conditions.
Quick Spec
| Resolution | 6MP |
| Lens | 3.6mm Fixed Lens |
| IR Distance | Up to 50 meters |
| WDR | 120dB |
| Power Supply | 12V DC/PoE |
Product Features
- 6MP Resolution for high-definition image quality.
- Wide Dynamic Range (WDR) of 120dB for better visibility in bright and dark areas.
- IR LEDs with a range of up to 50 meters for night vision support.
- IP67 weatherproof rating for outdoor use in various weather conditions.
- Motion detection and intelligent video system for advanced security monitoring.
Product Applications
- Residential security: Ideal for monitoring homes and residential areas with clear visuals.
- Retail surveillance: Use in retail stores to monitor customer activity and prevent theft.
- Parking lots: Effective for monitoring large open spaces like parking areas, even at night.
Supported Options
| Wall Mount | PFB203W |
| Junction Box | PFA130-E |
| Ceiling Mount | PFA152-E |
Compare to Similar Items
| Model | Differences |
| IPC-HFW4431R-Z | 4MP resolution, 30m IR distance |
| IPC-HFW5231E-Z | 2MP resolution, motorized zoom lens |
| IPC-HFW1831E | 8MP resolution, 40m IR distance |
Get more information
For further details and pricing on the Dahua IPC-HFW4631T-ASE-M, contact us via Live Chat or email at sales@router-switch.com. Check ‘Dahua IPC-HFW4631T-ASE-M’ price and ‘IPC-HFW4631T-ASE-M’ datasheet, buy ‘Dahua IPC-HFW4631T-ASE series’ with the best price and fast shipping. Free Live Chat is supported.
Dahua HFW4631T-ASE-M Specification
IPC-HFW4631T-ASE-M Specifications |
|
| Resolution | 6MP (3072 x 2048) |
| Image Sensor | 1/2.9° 6 Megapixel progressive scan CMOS |
| Minimum Illumination | 0.03Lux/F2.0 (Color), 0Lux/F2.0 (Infrared on) |
| Lens Type | 2.8 mm fixed lens |
| Day/Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Digital Noise Reduction | 3D DNR |
| Infrared Distance | Up to 50m (164ft) |
| IR LEDs | 2 LEDs |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | Main stream: 6MP/5MP (1~20fps), 4MP/3MP/1080P/1.3MP/720P (1~25/30fps) |
| Audio | 1 input, 1 output |
| Alarm | 1 input, 1 output |
| Network | RJ-45 (10/100Base-T) |
| Smart Detection | Tripwire, Intrusion, Object Abandoned/Missing |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | <2.5W (12V DC, IR off), <6W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Dimensions | 164.7mm x 70mm x 71.6mm (6.5″ x 2.8″ x 2.8″) |
| Material | Metal |
