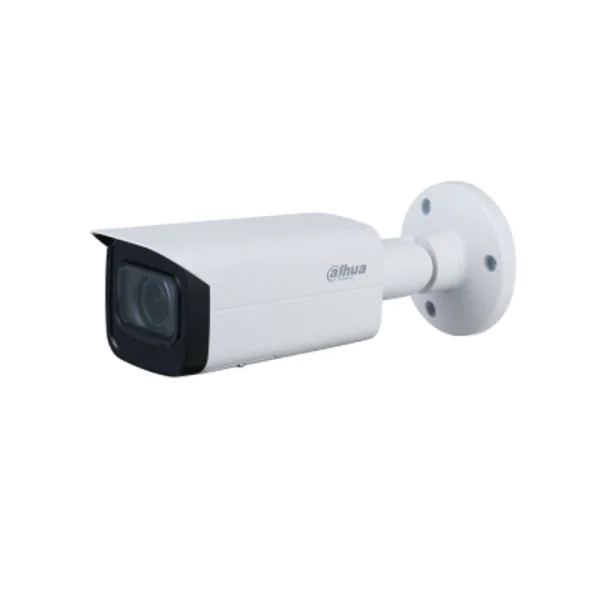

Introducing the Dahua IPC-HFW3541T-ZAS, a powerful 5MP Lite AI IR Vari-focal Bullet Network Camera designed to provide high-quality surveillance for a variety of environments. With advanced AI capabilities, enhanced clarity, and robust functionality, this network camera is an ideal choice for both indoor and outdoor security solutions. Optimize your security infrastructure with its superior performance and versatile features.
Quick Spec
| Resolution | 5 Megapixels |
| Lens Type | Vari-focal (2.7-13.5mm) |
| IR Distance | Up to 60 meters |
| Image Sensor | 1/2.7″ CMOS |
| AI Features | Perimeter Protection, Smart Motion Detection, Face Detection |
Product Features
- 5 Megapixel resolution for detailed image quality
- Vari-focal lens offering flexible focus settings (2.7-13.5mm)
- Integrated AI technology for enhanced analytics
- IR illumination enabling visibility up to 60 meters in dark conditions
- Weather-resistant design for reliable outdoor use
Product Applications
- Commercial properties: Monitor entrances, exits, and critical areas to enhance security and deter unauthorized access.
- Public spaces: Utilize the advanced AI features for crowd monitoring and suspicious activity detection in parks, streets, and squares.
- Residential security: Keep homes secure by monitoring driveways, gardens, and perimeters with high-resolution clarity even at night.
Supported Options
| Mounting Bracket | PFA130-E |
| Junction Box | PFA139 |
| Pole Mount | DM35E |
Compare to Similar Items
| Model | Comparison |
| Dahua IPC-HFW2431T-ZS | 4MP resolution, shorter IR distance (up to 30 meters), lacks advanced AI features. |
| Dahua IPC-HFW3841T-ZAS | 8MP resolution, greater detail, and clarity, similar AI features. |
| Hikvision DS-2CD2T45FWD-I5 | 4MP resolution, similar IR distance, different AI technology |
Get more information
Check Dahua IPC-HFW3541T-ZAS price and IPC-HFW3541T-ZAS datasheet, buy Dahua IPC-HFW3541T-ZAS with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or email us at sales@router-switch.com.
Dahua HFW3541T-ZAS Specification
| Model | DS-PWA64-Kit-WB |
| Brand | Hikvision |
| Type | Alarm Panel |
| Panel Capacity | 64 Zones |
| Communication Type | Wi-Fi, Ethernet |
| Wireless Range | 800 meters (open area) |
| Power Supply | 12V DC |
| Backup Battery | Li-ion battery (4.2V, 3,000mAh) |
| Working Temperature | -10°C to 55°C |
| Dimensions | 155mm x 155mm x 35mm |
| Humidity | 10% to 90% (no condensing) |
| Alarm Technology | Two-way wireless technology |
| Supported Sensors | Motion Sensors, Door/Window Sensors |
| Mobile App | Hik-Connect |
|
Camera |
|||||
|
Image Sensor |
1/2.7??Megapixel progressive CMOS |
||||
|
Effective Pixels |
2592 (H) Ă—1944 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
512 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/100000 s |
||||
|
Min. Illumination |
0.005 Lux@F1.5 |
||||
|
IR Distance |
60 m (197 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR LEDs Number |
4 (IR LEDs) |
||||
|
Pan/Tilt/Rotation Range |
Horizontal: 0°??60°; vertical: 0°??0°; rotation: 0°??60° |
||||
|
Lens |
|||||
|
Lens Type |
Motorized vari-focal |
||||
|
Mount Type |
φ14 |
||||
|
Focal Length |
2.7 mm??3.5 mm |
||||
|
Max. Aperture |
F1.5 |
||||
|
Field of View |
Horizontal: 99°??6° |
||||
|
Iris Type |
Fixed aperture |
||||
|
Close Focus Distance |
0.8 m (2.6 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
64.0 m (210.0ft) |
25.6 m (84.0 ft) |
12.8 m (42.0 ft) |
6.4 m (21.0 ft) |
|
|
T |
222.0 m (728.3 ft) |
88.8m (291.3 ft) |
44.4 m (145.7 ft) |
22.2 m (72.8 ft) |
|
|
Professional, Intelligent |
|||||
|
Perimeter Protection |
Tripwire; intrusion (Recognition of human and vehicle) |
||||
|
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream (2592 Ă— 1944@1??0 fps) (2688 Ă— 1520@1??5/30 fps) sub stream(704 Ă— 576@1??5 fps/704 Ă— 480@1??0 fps) third stream(1280 Ă— 720@1??5/30 fps) |
||||
|
Stream Capability |
3 streams |
||||
|
Resolution |
5M (2592 Ă— 1944); 4M (2688 Ă— 1520); 3M (2304 Ă— 1296); 1080p (1920 Ă— 1080); 1.3M (1280 Ă— 960); 720p (1280 Ă— 720); D1 (704 Ă— 576/704 Ă— 480); VGA (640 Ă— 480); CIF (352 Ă— 288/352 Ă— 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 3 Kbps??192 Kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||
|
Smart IR |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Audio Compression |
G.711a; G.711Mu; G726; AAC |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; |
||||
|
Interoperability |
ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
||||
|
Scene Self-adaptation |
Yes |
||||
|
User/Host |
20 (Total bandwidth: 64 M) |
||||
|
Edge Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS |
||||
|
Browser |
IE: IE8, IE9, IE11 Chrome Firefox |
||||
|
Management Software |
Smart PSS, DSS, DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN60950-1 |
||||
|
Port |
|||||
|
Audio Input |
1-channel (RCA port) |
||||
|
Audio Output |
1-channel (RCA port) |
||||
|
Alarm Input |
1 channel in: 5mA 3V??V DC |
||||
|
Alarm Output |
1 channel out: 300mA 12V DC |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
< 9.8W |
||||
|
Environment |
|||||
|
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than??5% |
||||
|
Strorage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Ingress Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
244.1 mm Ă— 79.0 mm Ă— 75.9 mm (9.6″ Ă— 3.1″ Ă— 3.0″)(L Ă— W Ă— H) |
||||
|
Net Weight |
820 g (1.8lb) |
||||
|
Gross Weight |
1090 g (2.4lb) |
