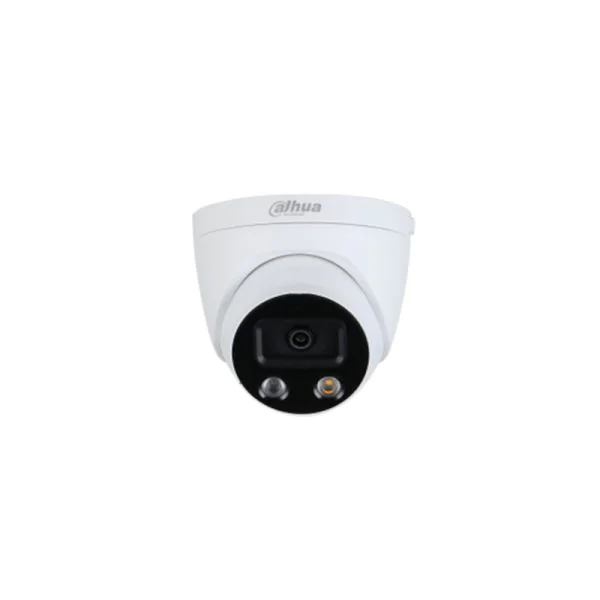

The Dahua IPC-HDW5541H-AS-PV is a high-performance 5MP WDR IR Eyeball AI Network Camera designed for advanced security surveillance. Equipped with a 2.8 mm fixed lens (3.6 mm and 6 mm options available), this camera offers superior image quality and enhanced AI capabilities. It features a built-in microphone and speaker, and supports alarm and audio I/O interfaces, making it an excellent choice for various monitoring needs.
Quick Spec
| Resolution | 5MP |
| Lens Options | 2.8 mm (fixed), 3.6 mm, 6 mm |
| WDR | Yes |
| IR Distance | Up to 50 meters |
| Audio In/Out | 1/1 (Built-in MIC and Speaker) |
Product Features
- 5MP high-resolution imaging for clear and detailed video
- Wide Dynamic Range (WDR) technology for excellent performance in varying lighting conditions
- Built-in microphone and speaker for two-way audio communication
- Intelligent AI features for enhanced security monitoring
- Flexible lens options to suit different coverage needs
Product Applications
- Retail Stores: Enhanced security and monitoring capabilities for preventing theft and ensuring customer safety.
- Office Buildings: Secure and monitor entry points and common areas for unauthorized access prevention and employee safety.
- Public Spaces: High-definition surveillance of public areas like parks and plazas to deter criminal activities and provide evidence when needed.
Supported Options
| Wall Mount Bracket | PFA139 |
| Junction Box | PFA130-E |
| Ceiling Mount Bracket | PFB203W |
Compare to Similar Items
| Model | Comparison |
| Dahua IPC-HDW5431R-Z | 4MP resolution, varifocal lens, no AI features |
| Dahua IPC-HDW2431T-AS-S2 | 4MP resolution, fixed lens, basic AI features |
| Hikvision DS-2CD2347G1-L | 4MP resolution, fixed lens, ColorVu technology |
Get more information
Check Dahua IPC-HDW5541H-AS-PV price and IPC-HDW5541H-AS-PV datasheet, buy Dahua IPC-HDW5541H-AS-PV with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
Dahua HDW5541H-AS-PV Specification
IPC-HDW5541H-AS-PV Specifications |
|
| Brand | Dahua |
| Model | IPC-HDW5541H-AS-PV |
| Image Sensor | 5MP Progressive CMOS |
| Effective Pixels | 2592 x 1944 |
| Minimum Illumination | 0.005 Lux @ F1.6 |
| WDR | 120 dB |
| Lens Type | Fixed |
| Lens Mount | M12 |
| Focal Length | 2.8 mm (3.6 mm, 6 mm optional) |
| Field of View | Horizontal: 97, Vertical: 71, Diagonal: 128(2.8 mm) |
| IR Distance | Up to 50 meters |
| Day/Night | Auto (ICR) / Color / B/W |
| Audio In/Out | 1/1 (Built-in MIC, Built-in Speaker) |
| Alarm In/Out | 1/1 |
| Video Compression | H.265, H.264, H.264B, H.264H, MJPEG |
| Resolution | 5MP (2592 x 1944) |
| Frame Rate | 25/30 fps for 5MP |
| Bit Rate | Main Stream: 24 kbps?C8192 kbps, Sub Stream: 24 kbps?C6144 kbps |
| Ethernet | RJ-45 (10/100 Base-T) |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 8.9W |
| Operating Temperature | -30C to +60C (-22F to +140F) |
