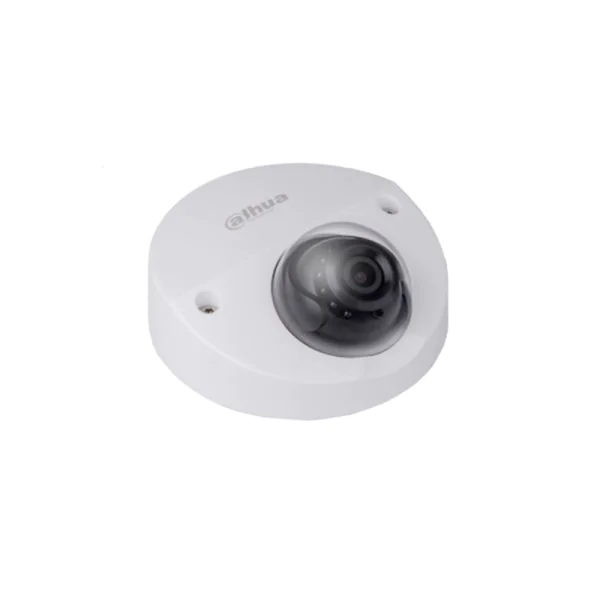

The Dahua IPC-HDBW4431F-M12 is a 4MP IR Mini Dome Network Camera designed to deliver high-quality surveillance in a compact form factor. It features a 2.8mm fixed lens, with optional 3.6mm or 6mm lenses available. Ideal for various security applications, this camera ensures clear and reliable video monitoring with advanced IR capabilities.
Quick Spec
| Resolution | 4MP |
| Lens | 2.8mm fixed (3.6mm, 6mm optional) |
| IR Distance | Up to 30 meters |
| Power Supply | DC 12V, POE (802.3af) |
| Operating Temperature | -30C ~ +60C |
Product Features
- 4 Megapixel high-resolution imaging
- Compact mini dome design for discreet installation
- Infrared night vision up to 30 meters
- Supports Power over Ethernet (PoE) and DC 12V
- Weather-resistant design suitable for indoor and outdoor use
Product Applications
- Retail stores for monitoring customer activity and preventing theft
- Office buildings to enhance security during non-working hours
- Residential areas for 24/7 surveillance of entrances and perimeters
Supported Options
| Wall Mount Bracket | PFA134 |
| Junction Box | PFA130-E |
| PoE Injector | DH-PFM320D |
Compare to Similar Items
| IPC-HDBW4431E-AS | Additional audio support, same resolution |
| IPC-HDBW4421F-AS | Lower 2MP resolution, audio support |
| IPC-HDBW4433R-ZS | Motorized zoom lens, same resolution |
Get more information
Check Dahua IPC-HDBW4431F-M12 price and IPC-HDBW4431F-M12 datasheet, buy Dahua IPC-HDBW4431F-M12 with best price and fast shipping. Free Live Chat is supported. Contact us through Live Chat or sales@router-switch.com for further information about this product and its price.
Dahua HDBW4431F-M12 Specification
IPC-HDBW4431F-M12 Specifications |
|
| Brand | Dahua |
| Model | IPC-HDBW4431F-M12 |
| Camera Type | IR Mini Dome Network Camera |
| Image Sensor | 1/34Megapixel progressive CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| Lens | 2.8mm fixed lens (3.6mm, 6mm optional) |
| Day/Night | ICR |
| IR Distance | Up to 30m |
| Max. Resolution | 4 Megapixels |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | 15 fps @ 4MP, 25/30 fps @ 1080P |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 7.5W (12V DC, IR on) |
| Operating Conditions | -30C ~ +60C, Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | 109.9mm 81mm |
| Network Interface | RJ-45 (10/100Base-T) |
| Audio Interface | 1/1 channel In/Out |
| Alarm | 2 channel In: 1 channel Out |
| Bit Rate | H.264: 24 ~ 10240 Kbps; H.265: 14 ~ 6144 Kbps |
