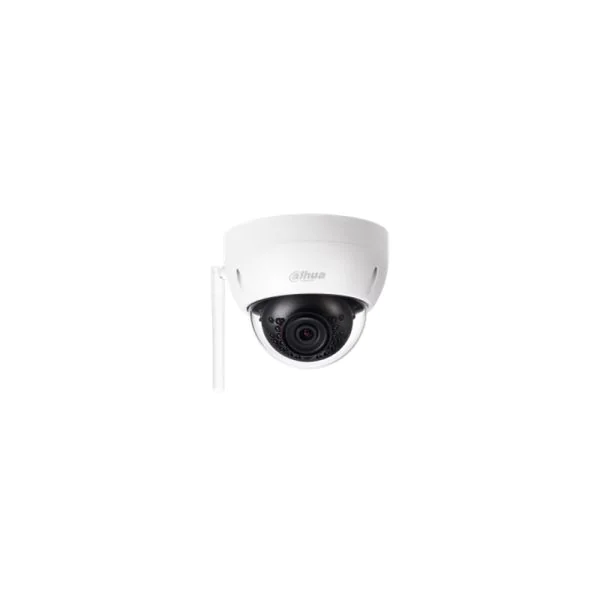

IPC-HDBW1320E-W,the IR Megapixel Fixed MiniDome camera delivers 3MP resolution with a choice of 2.8mm wide angle lens options. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
IPC-HDBW1320E-W |
|
Image Sensor |
1/3″3Megapixel progresive CMOS |
|
Effective Pixels |
2304(H)x1536(V) |
|
RAM/ROM |
256MB/16MB |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
|
IR Distance |
Distance up to 30m(98ft) |
|
IR On/Off Control |
Control Auto/ Manual |
|
IR LEDs |
24 |
|
Casing |
Metal |
|
Dimensions |
��109.9mm x81mm (4.33″ x 3.19″) |
Product Details
TheIPC-HDBW1320E-W provides these features:
* 1/3″3Megapixel progressive CMOS
* H.264 & MJPEG dual-stream encoding
* 20fps@(2304×1296)&25/30fps@2M(1920×1080)
* DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
* Wi-Fi support
* Max IR LEDs Length 30m
* IP67, IK10
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
IPC-HDBW1320E-W |
|
|
Image Sensor |
1/3″3Megapixel progresive CMOS |
1/2.8″2Megapixel progressive CMOS |
|
Effective Pixels |
2304(H)x1536(V) |
1920(H) x1080(V) |
|
RAM/ROM |
256MB/16MB |
512MB/32MB |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
0.006Lux/F1.4( Color,1/3s,30IRE) 0.05Lux/F1.4( Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
|
IR LEDs |
24 |
2 |
|
Focal Length |
2.8mm or 3.6mm |
2.7mm~13.5mm |
|
Max Aperture |
F2.5 |
F1.4 |
|
Angle of View |
H:100��, V:55�� |
H:106��~29��, V:57��~17�� |
|
Power Supply |
DC12V |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
||
|
Casing |
Metal |
Metal |
|
Dimensions |
��109.9mmx81mm (4.33″ x 3.19″) |
��122mmx88.9mm(4.80”x3.50”) |
GetMoreInformation
Do you have anyquestionabouttheIPC-HDBW1320E-W
Contact us now via Live Chat or sales@router-switch.com.
Dahua HDBW1320E-W Specification
IPC-HDBW1320E-W Specification |
|
|
Camera |
|
|
Image Sensor |
1/3″Â 3Megapixel progresive CMOS |
|
Effective Pixels |
2304(H)x1536(V) |
|
RAM/ROM |
256MB/16MB |
|
Scanning System |
Progressive |
|
Minimum Illumination |
0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 30m(98ft) |
|
IR On/Off Control |
Control Auto/ Manual |
|
IR LEDs |
24 |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
Board-in |
|
Focal Length |
2.8mm |
|
Max Aperture |
F2.5 |
|
Angle of View |
H:100°, V:55° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
N/A |
|
PTZ |
|
|
Pan/Tilt Range |
Pan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355° |
|
Video |
|
|
Compression |
H.264/H.264B/H.264H/MJPEG |
|
Streaming Capability |
Capability 2 Streams |
|
Resolution |
3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/720P(1280×720)/VGA(640×480)/QVGA(320×240) |
|
Frame Rate  |
3M(1 ~ 20fps)/2M (1 ~ 25/30fps) |
|
VGA(1 ~ 25/30fps) |
|
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H264:32K ~ 10240Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / DWDR |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image |
Support |
|
Smart IR |
Support |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
N/A |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP; |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS(Network Attached Storage),Local PC for instant recording, 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS,Easy4ip |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Certifications |
|
|
Certifications  |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V |
|
Power Consumption |
<5.5W |
|
Environmental |
|
|
Operating Conditions |
-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH |
|
Strorage Conditions |
-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
Construction |
|
|
Casing |
Metal |
|
Dimensions |
Φ109.9mm x 81mm (4.33″ x 3.19″) |
