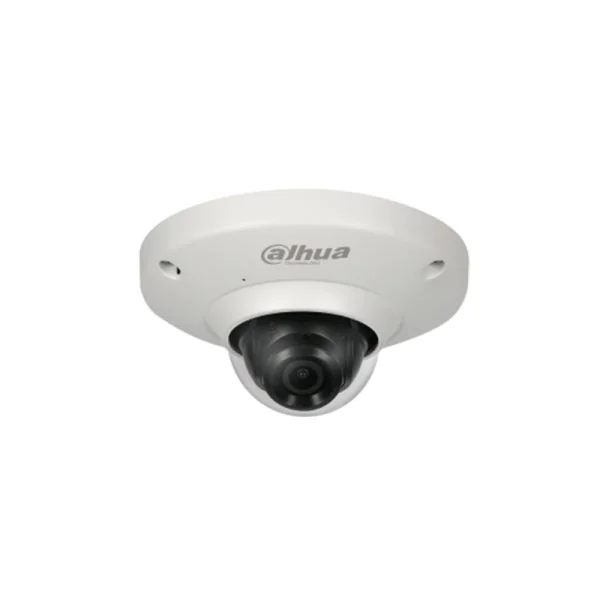

The Dahua IPC-HDB4231C-M is a 2MP Mini-Dome Network Camera designed to deliver high-quality surveillance footage with a 3.6mm fixed lens, with an optional 2.8mm lens available. This compact and versatile camera is ideal for various monitoring applications, ensuring clear and detailed imaging.
Quick Spec
| Image Sensor | 1/2.8 2 Megapixel progressive scan CMOS |
| Resolution | 2MP (1920 x 1080) |
| Lens | 3.6mm fixed (2.8mm optional) |
| Day/Night | ICR |
| IR Distance | Up to 30 meters |
Product Features
- 1/2.8 2 Megapixel progressive scan CMOS
- Max 30fps@1080P
- Supports H.265&H.264 dual codec
- Built-in IR LEDs, effective range up to 30 meters
- Weatherproof design, IP67 rated
Product Applications
- Retail and shopfronts surveillance
- Office building ingress and egress monitoring
- Residential estates and apartment corridors security
Supported Options
| Mount Bracket | PFA137 |
| Junction Box | PFA130-E |
| Pole Mount | PFB203W |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-HDBW4231F-AS | Equipped with a built-in microphone |
| Dahua IPC-HDW4231EM-AS-LED | Higher IR distance up to 50 meters |
| Dahua IPC-HDBW5431R-ZE | 4MP resolution with motorized zoom |
Get more information
Contact us through Live Chat or at sales@router-switch.com for further information about the Dahua IPC-HDB4231C-M and its price. Check Dahua IPC-HDB4231C-M price and IPC-HDB4231C-M datasheet, buy Dahua IPC-HDB4231C-M with best price and fast shipping. Free Live Chat is supported.
Dahua HDB4231C-M Specification
IPC-HDB4231C-M Specifications |
|
| Brand | Dahua |
| Model | IPC-HDB4231C-M |
| Camera Type | Network Camera |
| Resolution | 2MP (1920 x 1080) |
| Lens Type | Fixed Lens |
| Lens Options | 3.6mm (default), 2.8mm (optional) |
| Min. Illumination | 0.01 Lux@F2.0 (Color), 0.005 Lux@F2.0(B/W) |
| Day/Night | ICR (Infrared Cut filter Removal) |
| Video Compression | H.264/MJPEG |
| Frame Rate | Up to 30fps @ 1080P |
| Audio Compression | G.711a / G.711Mu / AAC / PCM |
| Storage | MicroSD card, up to 128GB |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | <5W |
| Operating Temperature | -30��C to +60��C (-22��F to +140��F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | ��110mm �� 81mm (4.33″ �� 3.19″) |
| IR Distance | Up to 30m (98ft) |
| Audio Input | 1 channel. |
