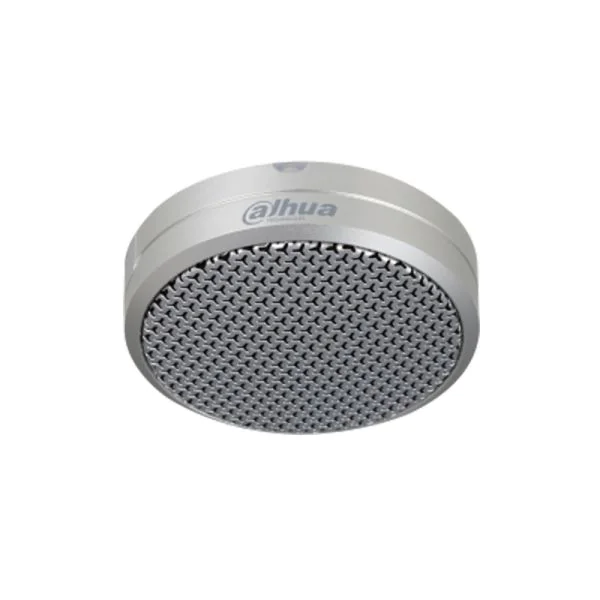

The Dahua HAP300 is a premium Hi-fidelity Pickup designed with advanced audio technology to capture clear and precise sound. Perfect for various surveillance and audio recording applications, the HAP300 is built to deliver high-quality audio performance in diverse environments, ensuring reliability and excellence.
Quick Spec
| Brand | Dahua |
| Model | HAP300 |
| Audio Input | Unbalanced |
| Frequency Response | 20Hz – 20kHz |
| Signal-to-Noise Ratio | 70dB |
Product Features
- High-fidelity audio pickup with wide frequency response
- Excellent signal-to-noise ratio of 70dB
- Unbalanced audio input for easy integration
- Durable and robust construction
- Designed for optimal performance in various environments
Product Applications
- Security surveillance systems for enhancing audio clarity
- Professional audio recording setups requiring high fidelity
- Public address systems for clear sound transmission
Supported Options
| Accessory | Model |
| Audio Cable | DAC100 |
| Microphone Stand | DMS100 |
| Power Supply | DPS200 |
Compare to Similar Items
| Model | Difference |
| Dahua HAP200 | Narrower frequency response |
| Dahua HAP400 | Higher signal-to-noise ratio |
| Dahua HAP500 | Balanced audio input |
Get more information
Contact us through Live Chat or sales@router-switch.com for further information about the Dahua HAP300 and its price. Check ‘Dahua HAP300’ price and ‘HAP300 datasheet’, buy ‘Dahua HAP300 Hi-fidelity Pickup’ with best price and fast shipping. Free Live Chat is supported.
Dahua HAP300 Specification
| Model | DSS Express |
| Brand | Dahua |
| Type | Software |
| Operating System Compatibility | Windows 7/8/10, Windows Server 2012/2016 |
| Max Channels | 512 |
| Main Processor | Intel Core i3, 3.50GHz or above |
| Memory | 8GB or above |
| Storage | 1TB HDD or above |
| Network Protocol Support | TCP/IP, HTTP, TCP, ARP, RARP, DHCP, ICMP, DNS, NTP, SMTP, RTSP, SNMP, RTP, RTCP |
| Bandwidth Support | 1000 Mbps or above |
| Client Access | Web, Windows, Mobile (iOS, Android) |
| Video Compression | H.265, H.264 |
| Security | Multi-level user rights management |
| Integration | ONVIF, P2P, SDK |
| Event Management | Event linkage with alarm outputs, Email, FTP |
| Alarm Inputs | 16 |
| Alarm Outputs | 4 |
| Model | DH-HAP300 |
| General | |
| Scope | 5~150 m2 |
| Sensitivity | -30dB |
| Frequency response | 20Hz??0kHz |
| Directional characteristic | Omni-directional |
| SNR | 82dB(1m 40dB sound source SPL) 52dB(10m 45dB sound source SPL) 1kHz at 1Pa |
| Dynamic range | 106dB(1KHz at Max dB SPL) |
| Max. sustainable sound pressure | 120dB SPL(1KHz, THD 1%) |
| Output impedance | 600?(non-equilibrium) |
| Output signal amplitude | 2.5Vpp/-25dB |
| Microphone | Electret condenser microphone |
| Working voltage | DC 12V(9~18V) |
| Working current | 50mA |
| Working temperature | -25?C~+70?C(-13℉~+158?? |
| Material | Aluminum |
| Color | silver |
| Dimension | φ70mmx20.6mm (2.76”x3.13??x0.81?? |
| Weight | 0.11kg(0.24lb) |
| Certification | CE/FCC |
