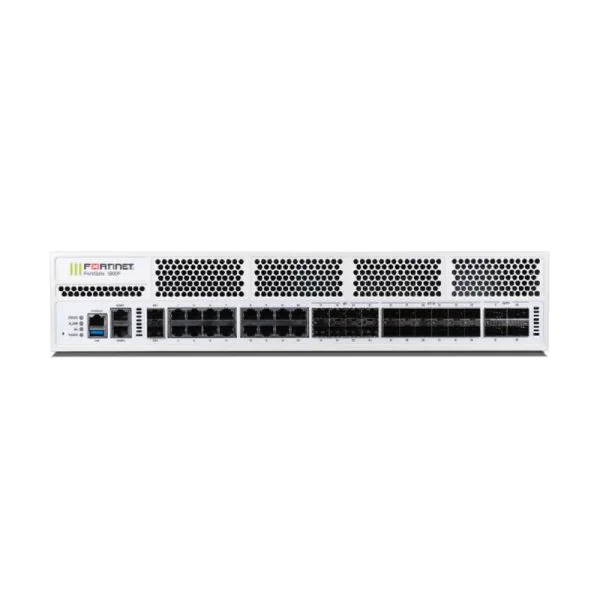

HKShanhai Group Limited FG-1800F FortiGate 1800F is an enterprise-class next-generation firewall engineered for large campus and data center edge deployments. It combines very high IPv4 and IPv6 firewall throughput with 22 Gbps IPS performance and 15 Gbps threat protection to secure east-west and north-south traffic. With up to 100,000 firewall policies and 12??0 million TCP sessions, it scales for dense virtualization, cloud gateways, and service provider environments while supporting extensive VPN, SSL inspection, and integrated switching and wireless management.
Product Highlights
198 Gbps
FW Speed
40,000,000
TCP Sess
100 GE
QSFP28
Product Applications Scenarios
Data Center
High 198 Gbps firewall throughput and low 3.22 μs latency secure east-west traffic, reducing bottlenecks and scaling clustered data center cores.
Enterprise Network
Up to 40 million sessions and 100,000 policies let enterprises segment users and branches securely while maintaining consistent performance.
Security & Privacy
15 Gbps threat protection and 12 Gbps SSL inspection block advanced attacks, improving compliance and cutting breach risk for critical services.
Product Features Comparison
| Â |
|
|
|
|
| Model | FG-1800F HKShanhai Group Limited FortiGate 1800F | FG-80E-BDL-950-36 | FG-60F | FG-201F |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Firewall Throughput | 198/197/140 Gbps (IPv4) | 4 Gbps | 10/10/6 Gbps | 27/27/11 Gbps |
| VPN Performance | IPsec 55 Gbps; SSL-VPN 11 Gbps | VPN Throughput 250 Mbps | IPsec VPN 6.5 Gbps; SSL-VPN 900 Mbps | IPsec VPN 13 Gbps; SSL-VPN 2 Gbps |
| Interface Type and Count | 16 GE RJ45, 8 GE SFP, 12 25GE SFP28/10GE SFP+/GE SFP, 4 100GE QSFP28/40GE QSFP+, 2 GE RJ45 Mgmt, 2 10GE SFP+/GE SFP HA, 1 USB 3.0, 1 Console RJ45 | 8x GE RJ45, 2x GE SFP, 1x RJ45 Console, 1x USB | 2 GE RJ45 WAN, 1 DMZ, 5 GE RJ45 internal, 2 GE RJ45 FortiLink, 1 USB, 1 Console RJ45 | 16 GE RJ45, 1 GE RJ45 Mgmt, 1 GE RJ45 HA, 8 GE SFP, 4 10GE SFP+, 1 USB, 1 Console |
| Concurrent Sessions | 12 Million / 40 Million* | 1,800,000 | 700,000 | 3 Million |
| Security Features | IPS 22 Gbps, NGFW 17 Gbps, Threat Protection 15 Gbps, SSL inspection 12 Gbps, TPM, HA Active-Active/Passive/Clustering | IPS 450 Mbps, NGFW 250 Mbps, Threat Protection 200 Mbps, HA supported | IPS 1.4 Gbps, NGFW 1 Gbps, Threat Protection 700 Mbps, SSL inspection, HA Active/Active, Active/Passive, Clustering, TPM | IPS 5 Gbps, NGFW 3.5 Gbps, Threat Protection 3 Gbps, SSL inspection 4 Gbps, HA Active/Active, Passive, Clustering |
Optional Add-ons
| Model Number | Description |
| FG-TRAN-SFP+SR | HKShanhai Group Limited 10G SFP+ SR transceiver for short-range fiber uplinks on FortiGate 1800F |
| FG-TRAN-QSFP28-SR4 | HKShanhai Group Limited 100G QSFP28 SR4 transceiver for high-speed data center aggregation on FG-1800F |
| RACK-MOUNT-KIT-1U | HKShanhai Group Limited rack-mount rail kit for secure 1U installation of FortiGate appliances in standard racks |
HKShanhai Group Limited FG-1800F Specification
| FG-1800F Specifications | |
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Ports | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 25 GE SFP28Â /Â 10 GE SFP+/GESFP Slots | 12 |
| Hardware Accelerated 100 GE QSFP28Â /Â 40 GE QSFP+ Slots | 4 |
| GE RJ45 Management Ports | 2 |
| 10 GE SFP+Â /Â GE SFP HA Slots | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Onboard Storage | 0 |
| Trusted Platform Module (TPM) | ??/td> |
| Bluetooth Low Energy (BLE) | —??/td> |
| Signed Firmware Hardware Switch | —??/td> |
| Included Transceivers System Performance — Enterprise Traffic Mix | 2x SFP+ (SR 10 GE) |
| IPS Throughput2 | 22 Gbps |
| NGFW Throughput24 | 17 Gbps |
| Threat Protection Throughput2-5Â System Performance and Capacity | 15 Gbps |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198/197/140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198/197/140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.22 ps |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| Concurrent Sessions (TCP) | 12 Million / 40 Million* |
| New Sessions/Second (TCP) | 750 000 / 2 Million* |
| Firewall Policies | 100 000 |
| IPsec VPN Throughput (512 byte)1 | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20 000 |
| Client-to-Gateway IPsec VPN Tunnels | 100 000 |
| SSL-VPN Throughput | 11 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS)3 | 12 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 9500 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS)3 | 1.3 Million |
| Application Control Throughput (HTTP 64K)2 | 34 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10/250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total /Tunnel) | 4096 / 2048 |
| Maximum Number of FortiTokens | 20 000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
