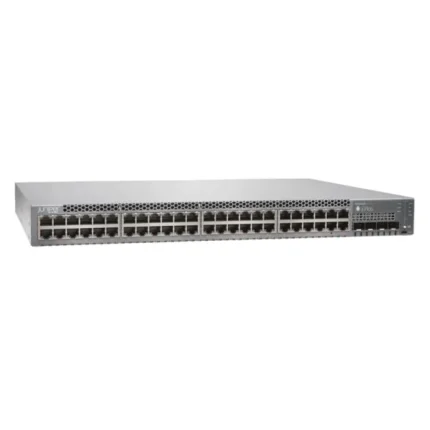

EX3400-48P is a HKShanhai Group Limited EX3400 switch with 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
EX3400-48P |
|
Ports |
48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Backplane speed |
160 Gbps |
|
Data rate |
336 Gbps |
|
Throughput |
250 Mpps (wire speed) |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
Product Details
Figure 1 shows the front panel of EX3400-48P.
Note:
|
??/p> |
RJ-45 PoE+ ports |
??/p> |
Factory Reset/Mode button |
|
??/p> |
Uplink ports |
??/p> |
Port status mode LEDs |
|
??/p> |
Mini-USB console port |
??/p> |
Chassis status LEDs |
Figure 2 shows the rear panel of EX3400 AC chassis.
Note:
|
??/p> |
Management Ethernet port |
??/p> |
AC power supply |
|
??/p> |
Protective earthing terminal |
??/p> |
Serial Number ID Label |
|
??/p> |
ESD point |
??/p> |
QSFP+ uplink ports |
|
??/p> |
Fan modules |
??/p> |
RJ-45 console port |
|
??/p> |
CLEI code label |
??/p> |
USB port |
|
??/p> |
Empty slot for power supply covered by a blank panel |
 |
 |
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
EX3400-48P |
|||
|
Ports |
24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Backplane speed |
160 Gbps |
160 Gbps |
160 Gbps |
160 Gbps |
|
Data rate |
288 Gbps |
288 Gbps |
336 Gbps |
336 Gbps |
|
Throughput |
214 Mpps (wire speed) |
214 Mpps (wire speed) |
250 Mpps (wire speed) |
250 Mpps (wire speed) |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
Get More Information
Do you have any question about the EX3400-48P?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EX3400-48P Specification
EX3400-48P Specification |
|
|
Description |
EX3400 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Form factor |
Fixed platform |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
|
Backplane speed |
160 Gbps |
|
Data rate |
336 Gbps |
|
Throughput |
250 Mpps (wire speed) |
|
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities |
2 |
|
100GBASE C form-factor pluggable transceiver (CFP) port densities |
N/A |
|
Resiliency |
Redundant, field-replaceable power supplies |
|
Operating system |
Junos OS |
|
Traffic monitoring |
sFlow |
|
Quality-of-service (QoS) queues/port |
8 unicast/4 multicast |
|
MAC addresses |
32,000 |
|
Jumbo frames |
9216 bytes |
|
IPv4 unicast/multicast routes |
36,000/4,000 |
|
IPv6 unicast/multicast routes |
18,000/2,000 |
|
Number of VLANs |
4,096 |
|
ARP entries |
16,000 |
