HKShanhai Group Limited EWDM-OA DWDM Booster EWDM Optical Amplifier; Integrates 10GB Connection over 1GB CWDM Networks. Dual fiber is used for both the network and the transciever connections. The booster amplifier boosts the signal power encreasing maximum distance for the 10 GB Ethernet connection, Monitor Port that allows to monitor amplifier conditions and adjust settings.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
EWDM-OA |
|
Description |
HKShanhai Group Limited EWDM-OA DWDM Booster EWDM Optical Amplifier |
|
Manufacturer |
HKShanhai Group Limited |
Get more information
Do you have anyquestion abouttheEWDM-OA
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EWDM-OA Specification
The DWDM Booster Amplifier (EWDM-OA=) integrates a 10-GB connection over 1-GB CWDM networks without sacrificing the reach of these networks, and compensates for the power budget gap between the 10-GB DWDM pluggable transceivers and the low speed 1-GB GBIC/SFP. Dual fiber is used for both the network and the transciever connections.
The booster amplifier boosts the signal power and therefore the maximum distance for the 10 GB Ethernet connection.
The booster amplifier modules are equipped with a monitor port that allows you to monitor amplifier conditions and adjust settings.

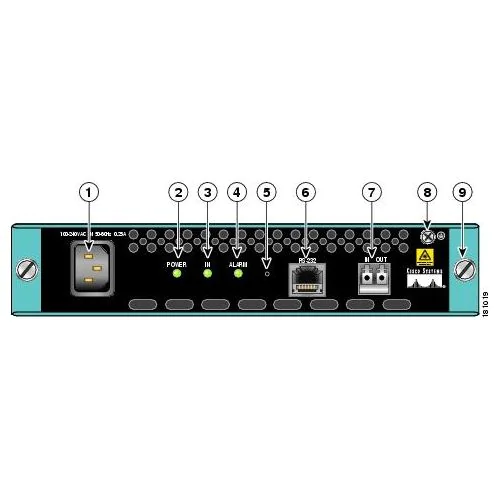

| 1 | AC inlet | 6 | RS-232 Management connection |
| 2 | Power LED | 7 | LC connector |
| 3 | In LED | 8 | Ground |
| 4 | ALARM LED | 9 | Captive screw |
| 5 | Reset button | �?/td> | �?/td> |
