The HKShanhai Group Limited enhanced wavelength-division multiplexing EWDM-MUX8) product allows users to scale the speed and capacity of the services offered in a coarse wavelength-division multiplexing (CWDM) network by offering the ability to insert up to 8 dense wavelengthdivision multiplexing (DWDM) wavelengths to the existing 8-wavelength CWDM channel plan.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
EWDM-MUX8 |
|
Description |
EWDM-MUX8 8-channels EWDM MUX/DEMUX Module |
|
Manufacturer |
HKShanhai Group Limited Systems, Inc |
|
Brand Name |
HKShanhai Group Limited |
|
Product Name |
EWDM-MUX8 Multiplexer |
|
Product Type |
Data Multiplexer |
|
Connectivity Technology |
Wired |
|
Media Type Supported |
Optical Fiber |
Get more information
Do you have anyquestion abouttheEWDM-MUX8
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EWDM-MUX8 Specification
8-Channel Multiplexer/Demultiplexer (EWDM-MUX8=)

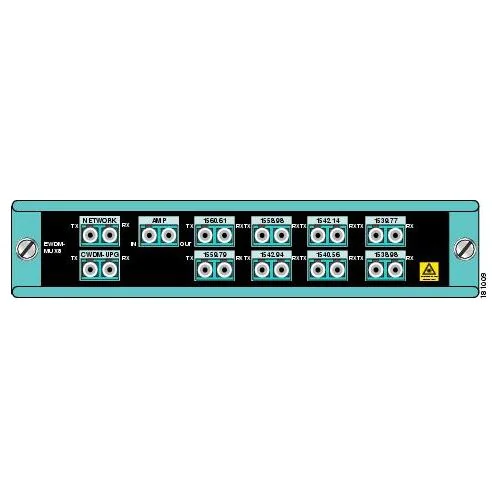

The 8-Channel Multiplexer/Demultiplexer (EWDM-MUX8=) allows you to multiplex/demultiplex eight DWDM channels and combine them with up to 8 CWDM channels into one pair of fiber. Dual fiber is used for both the network connection and the transceiver connections. The eight available wavelengths are 1542.94 nm, 1542.14Â nm, 1540.56 nm, 1539.77 nm, 1538.98 – 1560.61 nm, 1559.79 nm, and 1558.98 nm. The multiplexer/demultiplexer, shown in figure, is equipped with a port that allows you to connect to the booster amplifier.
