ES0B017712P0, HKShanhai Group Limited S7700 Switch, 12 slots/POE chassis/No PSU

SKU: 517DFBOJXRU1IF1V6EVRB45JRF2QPZH7AAJZ Category: Huawei S7700 Switches

ES0B017712P0 is the HKShanhai Group Limited S7712 POE Assembly Chassis. The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on HKShanhai Group Limited’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability.

Quick Specs

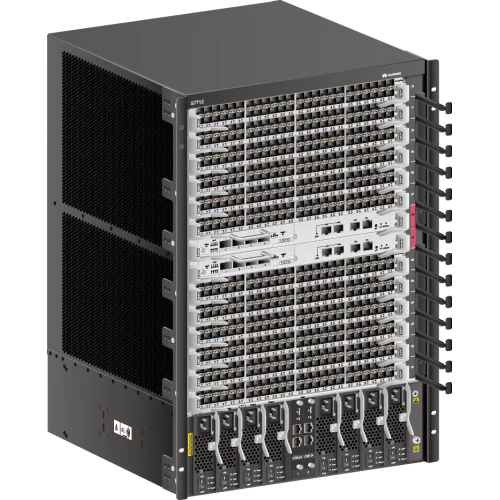

Figure 1 shows the S7712 chassis appearance. ES0B017712P0 is one of the S7712 chassis, including no cards, modules or units.

Table 1 shows the Quick Specs.

Product Code	ES0B017712P0
Forwarding Performance	2,880 Mpps
Switching Capacity	3.84 Tbit/s
Service Slots	12
Redundancy Design	Supervisors, Power modules, CMUs, Fans trays
MPU Slots	2
LPU slots	12
System power supply slots	4
Fan slots	4
PoE power supply slots	4
Maximum PoE Power	8,800W
Maximum power consumption (fully loaded)	4200 W
Working Voltage	DC: ??8.4V to ??2V AC: 90V to 290V
Dimensions (W x D x H, excluding rack-mounting brackets)	With cable management frames: 442 mm x 585 mm x 663.95 mm (17.4 in. x 23.0 in. x 26.1 in. (15 U)) Without cable management frames: 442 mm x 489 mm x 663.95 mm (17.4 in. x 19.3 in. x 26.1 in. (15 U))
Weight (empty/fully loaded)	25 kg/70 kg (55.1 lb/154.3 lb)

Product Details

Figure 2 shows the S7712 chassis structure (front view).

Note:

??/p>	Twelve service cards, including: Open Service Platform Unit 100M Interface Card 1000M Interface Card GE/10GE Interface Card 10GE Interface Card 40GE Interface Card 100GE Interface Card
??/p>	Two MPUs
??/p>	?A pair of mounting brackets
??/p>	Four power modules
??/p>	Two EH1D200CMU00-Centralized Monitoring Unit
??/p>	Four PoE power modules
??/p>	Ground screw
??/p>	Front ESD jack
??/p>	Cable management frames

Figure 3 shows the S7712 chassis structure (rear view).

Note:

??/p>	Four Fan module
??/p>	Rear ESD jack
??/p>	JG ground terminal
??/p>	Air filter
??/p>	A pair of removable handles

The Modules, Cards

Table 2 shows the recommended elements for the

Model	Description
FE-SFP optical transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP optical transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
40GE CFP optical transceiver
CFP-40G-SR4	High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO)
CFP-40G-LR4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)
CFP-40G-ER4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)
40GE QSFP+ optical transceiver
QSFP-40G-eSR4	40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-ER4	40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
100GE CFP optical transceiver
CFP-100G-SR10 ?	High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
CFP-100G-LR4	CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)
CFP-100G-ER4 ?	High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
100GE interface card
ET1D2C02FEE0	2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series)
10GE interface card
ET1D2X32SSC0	32-Port 10GBASE-X Interface Card(SC,SFP+)
ET1D2X12SSA0	12-Port 10GBASE-X Interface Card(SA,SFP+)
40GE interface card
ET1D2L08QSC0 ?	8-Port 40GBASE-X Interface Card(SC,QSFP+)
ET1D2L02QSC0	2-Port 40GBASE-X Interface Card(SC,QSFP+)
Centralized monitoring unit
EH1D200CMU00	Centralized Monitoring Board
Cluster switching system unit
EH1D2VS08000	8-Port 10G Cluster Switching System Service Unit (SFP+)
Firewall module
ET1D2FW00S02	NGFW Module C,with HW General Security Platform Software
ET1D2FW00S01	NGFW Module B,with HW General Security Platform Software
GE/10GE interface card
ET1D2S08SX1E	8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
ET1D2S04SX1E	4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
Intrusion prevention system module
ET1D2IPS0S00	IPS Module A,with HW General Security Platform Software
Main processing unit
ET1D2MPUA000	S12708/S12712,Main Processing Unit A(Optional clock)
Switch fabric unit
ET1D2SFUD000	S12708/S12712,Switch Fabric Unit D
ET1D2SFUA000	S12708/S12712,Switch Fabric Unit A
Wireless access controller unit
ACU2	WLAN?ACU2?Access Controller Unit(128 AP Control Resource Included)
GE interface card
ET1D2T36SEA0	36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP)
ET1D2G48SX1E	48-Port 100/1000BASE-X Interface Card(X1E,SFP)

Compare to Similar Items

Table 3 shows the comparison of ES0B017712P0 and ES0B00770300.

Product Code	ES0B017712P0	ES0B00770300
Forwarding Performance	2,880 Mpps	1,440 Mpps
Switching Capacity	3.84 Tbit/s	1.92 Tbit/s
Service Slots	12	3
Redundancy Design	Supervisors, Power modules, CMUs, Fans trays	Supervisors, Power modules, CMUs, Fans trays
MPU Slots	2	2
LPU slots	12	3
System power supply slots	4	2
Fan slots	4	1
PoE power supply slots	4	1
Maximum PoE Power	8,800W	2,200W
Maximum power consumption (fully loaded)	4200 W	1000 W

Get more information

Do you have any?question about?the?ES0B017712P0

HKShanhai Group Limited ES0B017712P0 Specification

ES0B017712P0 Specifications
Switching Capacity	3.84 Tbit/s
Forwarding Performance	2,880 Mpps
Service Slots	12
Redundancy Design	Supervisors, power modules, CMUs, fans trays
Wireless Network Management	Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic management
Basic WLAN services, QoS, security, and user management
Deployment of ACs on different network layers
User Management	Unified user management
802.1x, MAC address, and Portal authentication
Traffic- and time-based accounting
User authorization based on user groups, domains, and time ranges
VLAN	Three types of interfaces: access, trunk, and hybrid
Default VLAN
VLAN switching
QinQ and selective QinQ
MAC address-based VLAN assignment
ARP	256K ARP entries
MAC Address	1M MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Limit on the number of MAC addresses learned on ports and VLANs
Ring Protection	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
SEP
BPDU protection, root protection, and loop protection
BPDU tunnel
ERPS (G.8032)
IP Routing	1M IPv4 routing entries
IPv4 routing protocols, such as RIP v1/v2, OSPF, BGP, and IS-IS
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast	128,000 multicast routing entries
IGMP v1/v2/v3 and IGMP v1/v2/v3 snooping
PIM-DM, PIM-SM, and PIM-SSM
MSDP and MBGP
Fast leave
Multicast traffic control
Multicast querier
Multicast packet suppression
Multicast CAC
Multicast ACL
MPLS	Basic MPLS functions
MPLS OAM
MPLS-TE
MPLS VPN/VLL/VPLS
CSS Switch Fabric Clustering	CSS Switch Fabric Clustering (S7706 and S7712)
Service Port Clustering	Service Port Clustering (S7706 and S7712)
Reliability	LACP and E-Trunk between devices
VRRP and BFD for VRRP
BFD for BGP/IS-IS/OSPF/static route
NSF and GR for BGP/IS-IS/OSPF/LDP
TE FRR and IP FRR
HSR
Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731
DLDP
QoS	256K ACLs
Traffic classification based on Layer 2 protocol packet header, Layer 3 protocol information, Layer 4 protocol information, and 802.1p priority
ACL, CAR, re-marking, and scheduling
Queue scheduling algorithms including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
Congestion avoidance mechanisms, such as WRED and tail drop
HQoS
Traffic shaping
Configuration and Maintenance	Zero-Touch Provisioning
Console and SSH terminals
Network management protocols, such as SNMP v1/v2c/v3
File uploading and downloading using FTP and TFTP
BootROM upgrade and remote upgrade
Hot patches
User operation logs
Security and Management	802.1x authentication and portal authentication
MACSec
NAC
RADIUS and HWTACACS authentication
Different user levels for commands, preventing unauthorized users from using certain commands
Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
Ping and traceroute
RMON
Service Chain
Time synchronization	IEEE 1588v2
SyncE
Value-added Service*	Firewall
NAT
NetStream
IPSec
Load balancing
IPS
Interoperability	Supports VBST (compatible with PVST/PVST+/RPVST)
Supports LNP (similar to DTP)
Supports VCMP (similar to VTP)
Energy Conservation	IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions (W x D x H)	442 mm x 489 mm x 664 mm
Chassis Weight (empty)	37 kg
Working Voltage	DC: ??8.4V to ??2V AC: 90V to 290V
Maximum Power Consumption of the Entire Equipment	4,200W
Maximum PoE Power	8,800W
