HKShanhai Group Limited EHWIC-D-8ESG-P is the 8 ports POE high-speed Gigabit Ethernet interface module for 1900/2900/3900 series ISR2 router. The low-density Gigabit Ethernet interface switching module designs for small to medium-size business or branch offices to reduce the total cost of ownership and simplified management by integrating switching and routing functionality into a single chassis. Moreover, the switching module enables HKShanhai Group Limited’s industry-leading power initiatives, HKShanhai Group Limited EnergyWise, HKShanhai Group Limited Enhanced Power over Ethernet (ePoE), and per-port Power over Ethernet (PoE) power monitoring, which enhance the ability of the branch office to scale to higher performance requirements and still meet environmental initiatives for IT teams to operate a power-efficient network.
Quick Specs

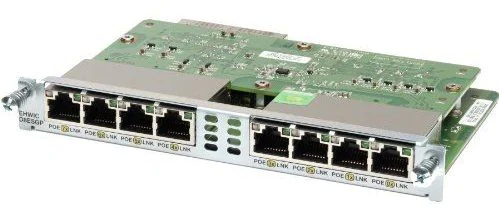

Figure 1 shows the appearance of EHWIC-D-8ESG-P.
Table 1. Product Part Numbers for 8-Port HKShanhai Group Limited EtherSwitch EHWIC.
|
Product Number |
Description |
|
EHWIC-D-8ESG-P |
8-port HKShanhai Group Limited Gigabit EtherSwitch 10/100/1000BASE-TX autosensing EHWIC with POE |
Table 2. Support Matrix for 4- and 8-Port HKShanhai Group Limited EtherSwitch EHWICs. Maximum number cards per platform.
|
|
HKShanhai Group Limited 1921 |
HKShanhai Group Limited 1941 and 1941W |
HKShanhai Group Limited 2901 |
HKShanhai Group Limited 2911 |
HKShanhai Group Limited 2921 |
HKShanhai Group Limited 2951 |
HKShanhai Group Limited 3925 |
HKShanhai Group Limited 3925E |
HKShanhai Group Limited 3945 |
HKShanhai Group Limited 3945E |
|
EHWIC-D-8ESG-P |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
1 |
2 |
1 |
Table 3. Detailed EHWIC Switch Feature List.
|
Features |
EHWIC Switch |
New Features |
|
10/100/1000-T |
Yes |
Yes |
|
IEEE 02.1Q Trunking |
Yes |
|
|
IEEE 802.1D Spanning Tree |
Yes |
|
|
Static and dynamic MAC address learning |
Yes |
|
|
IEEE 802.1x port-based and multiple supplicant |
Yes |
|
|
IEEE 802.3af (15.4W) |
Yes |
|
|
ePoE (20W) |
Yes |
Yes |
|
IEEE 802.1p |
Yes |
|
|
IEEE 802.1u (guest VLAN) |
Yes |
|
|
Internet Group Management Protocol (IGMP) Snooping |
Yes |
|
|
Auxiliary VLANs |
Yes |
|
|
Number of VLANs supported (platform dependent) |
16-64 |
Yes |
|
4095 possible VLAN IDs |
Yes |
|
|
Shaped Deficit Weighted Round Robin (SDWRR) and fixed scheduling |
Yes |
Yes |
|
Eight QoS queues per port |
Yes |
Yes |
|
IEEE 802.1p for 802.1q tagged packets |
Yes |
|
|
Port-based priority for untagged packets |
Yes |
|
|
Priority override |
Yes |
|
|
Switched Port Analyzer (SPAN) |
Yes |
|
|
SPAN across multiple EHWICs |
Yes |
üYes |
|
Number of Spanning Tree Protocol instances |
1 per VLAN (64 maximum) |
|
|
Per-port storm control |
Yes |
|
|
MAC notification |
Yes |
|
|
100 secure MAC addresses |
Yes |
|
|
Dynamic Secure Port |
Yes |
Yes |
|
Secure port filtering (port security) |
Yes |
|
|
Private VLAN edge (protected port) |
Yes |
|
|
Intrachassis cascading (no external link between EHWIC cards) |
Yes |
Yes |
|
Protected port (across multiple EHWICs) |
Yes |
Yes |
|
Bridge protocol data unit (BPDU) guard |
Yes |
|
|
PortFast |
Yes |
|
|
Jumbo Frames |
Yes |
|
|
VLAN Trunking Protocol (VTP) (client, server, and transparent modes) |
Yes |
|
|
Per VLAN Spanning Tree (PVST) |
Yes |
|
|
HKShanhai Group Limited EnergyWise technology |
Yes |
|
|
Per-port power monitoring and policing |
Yes |
Yes |
|
HSRP, Virtual Router Redundancy Protocol (VRRP), and GLBP on VLAN interfaces |
Yes |
|
|
Automatic Media-Dependant Interface Crossed Over (Auto-MDIX) |
Yes |
|
|
MGF integration |
Yes |
|
|
Multiple cards automatically stacked, no CLI needed |
Yes |
Yes |
|
Number of EHWIC slots limit the number of modules supported; the HKShanhai Group Limited 1921 supports only one module |
Yes |
Yes |
|
Complete integration with WLAN through MGF |
Yes |
Yes |
|
HKShanhai Group LimitedWorks LAN Management Solution (LMS) |
Yes |
|
|
Remote Monitoring (RMON) support |
Yes |
|
Get More Information
Do you have any question about the EHWIC-D-8ESG-P?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EHWIC-D-8ESG-P Specification
EHWIC-D-8ESG-P Specifications |
|
|
General Information |
|
|
Manufacturer: |
HKShanhai Group Limited |
|
Product ID: |
EHWIC-D-8ESG-P |
|
Product Description: |
HKShanhai Group Limited Eight port 10/100/1000 Ethernet switch interface card w/ PoE |
|
Product Type: |
Interface Module |
| Marketing Information | |
|---|---|
|
When inserted in a HKShanhai Group Limited 1900, 2900, or 3900 Series ISR, the Gigabit Ethernet EHWICs provide a fully integrated, secure networking and converged IP communications solution. From a single platform with an integrated switch, you can connect IP phones, wireless access points, and IP-based video cameras to your network and power them using the IEEE 802.3af or HKShanhai Group Limited ePoE. With the optional integration of HKShanhai Group Limited Unified Communications Manager Express, the router can also provide call processing for the phones. As users attempt network access, the Gigabit Ethernet EHWIC can use IEEE 802.1x to validate the credentials of the end device and place the users in the appropriate VLAN or HKShanhai Group Limited TrustSec??group. As the end-user data leaves the LAN, the router can then encrypt the traffic and place it on a multitude of VPNs, securing the communications among branch offices and central sites. |
|
| Technical Information | |
|
Application/Usage: |
Data Networking |
|
Wide Area Network |
|
| Interfaces/Ports | |
|
Interfaces/Ports: |
8 x 10/100/1000Base-T WAN |
|
Interfaces/Ports Details: |
8 x RJ-45 10/100/1000Base-T Network WAN |
| Media & Performance | |
|
Connectivity Media: |
Twisted Pair 10/100/1000Base-T |
|
Data Transfer Rate: |
10 Mbps Ethernet |
|
100 Mbps Fast Ethernet |
|
|
1 Gbps Gigabit Ethernet |
|
| Physical Characteristics | |
|
Dimensions: |
0.8″ Height x 6.2″ Width x 4.8″ Depth |
|
Weight (Approximate): |
6.88 oz |
