The single-port HKShanhai Group Limited Multimode Four-Pair G.SHDSL Double Wide Enhanced High-Speed WAN Interface Card (EHWIC-4SHDSL-EA) offers G.SHDSL-based WAN connectivity using both 802.3ah Ethernet in the First Mile (EFM) and ATM modes on a single enhanced high-speed WAN interface card (EHWIC). Both modes are not supported simultaneously. This EHWIC will be used in modular routers that are deployed in small to medium-sized businesses (SMBs) and enterprise branch offices.
Quick Specs

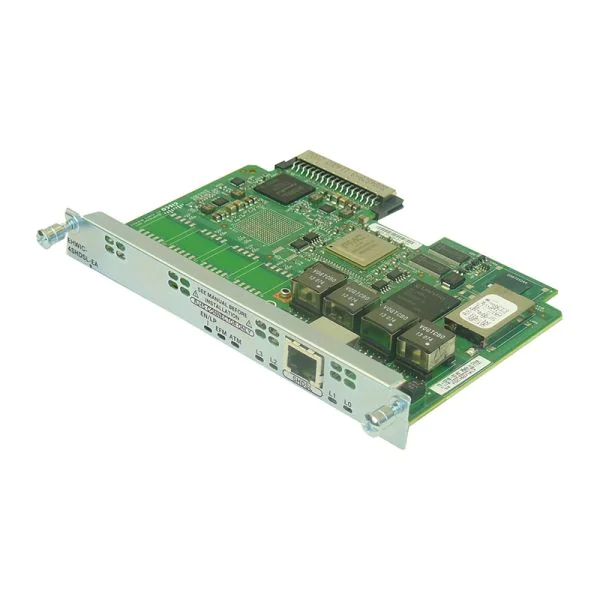

Figure 1 shows the appearance of EHWIC-4SHDSL-EA.
Table 1 shows the quick specs of EHWIC-4SHDSL-EA.
|
Part Number |
EHWIC-4SHDSL-EA |
|
Type |
HKShanhai Group Limited Multimode Four-Pair G.SHDSL EHWIC |
|
Chipset |
Socrates-4e from Lantiq |
|
Dimensions (H x W x D) |
6.25 x 5.63 x 1.75 in. (15.88 x 14,30 x 4.45 cm) |
|
Firmware version |
IDC Firmware version: V1.7.2.0 DFE Firmware version: V-1.1.7.10_2 10 |
|
Weight |
3 Lbs |
|
System Requirements |
HKShanhai Group Limited, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router |
Router Platforms
Table 2 shows the router platforms which support EHWIC-4SHDSL-EA.
|
Model |
Description |
|
HKShanhai Group Limited 1921 Modular Router, 2 GE, 2 EHWIC slots, 512DRAM, IP Base |
|
|
HKShanhai Group Limited 1941 Router w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base |
|
|
HKShanhai Group Limited 2901 router w/2 GE,4 EHWIC,2 DSP,256MB CF,512MB DRAM,IP Base |
|
|
HKShanhai Group Limited 2921 Router w/3 GE,4 EHWIC,3 DSP,1 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 2911 router w/3 GE,4 EHWIC,2 DSP,1 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 2951 Router w/3 GE,4 EHWIC,3 DSP,2 SM,256MB CF,512MB DRAM,IPB |
|
|
HKShanhai Group Limited 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB) |
|
|
HKShanhai Group Limited 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB) |
|
|
HKShanhai Group Limited 3925E router w/SPE200,4GE,3EHWIC,3DSP,2SM,256MBCF,1GBDRAM,IPB |
|
|
HKShanhai Group Limited 3945 router w/SPE250, 4GE, 3EHWIC, 3DSP, 4SM, 256MBCF, 1GB DRAM, IPB |
Compare to Similar Item
Table 3 shows the comparison between EHWIC-4SHDSL-EA and EHWIC-1GE-SFP-CU.
|
Product part number |
EHWIC-4SHDSL-EA |
|
|
Type |
HKShanhai Group Limited Multimode Four-Pair G.SHDSL EHWIC |
HKShanhai Group Limited Enhanced HWIC Interface Card |
|
Ports |
RJ-45 connector |
1 dual mode SFP port 1 10/100/1000 Base-T port |
|
System Requirements |
HKShanhai Group Limited, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router |
HKShanhai Group Limited, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router |
Get more information
Do you have any question about the EHWIC-4SHDSL-EA
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EHWIC-4SHDSL-EA Specification
EHWIC-4SHDSL-EA Specifications |
||
|
Type |
HKShanhai Group Limited Multimode Four-Pair G.SHDSL EHWIC |
|
|
Chipset |
Socrates-4e from Lantiq |
|
|
Dimensions (H x W x D) |
6.25 x 5.63 x 1.75 in. (15.88 x 14,30 x 4.45 cm) |
|
|
Firmware version |
IDC Firmware version: V1.7.2.0 DFE Firmware version: V-1.1.7.10_2 10 |
|
|
Weight |
3 Lbs |
|
|
System Requirements |
HKShanhai Group Limited, 1921, 1941, 2901, 2911, 2921, 2951, 3925, 3945, 3925e, and 3945e Router |
|
|
LEDs |
EN/LP |
Status of the system: Green: Operating system is running Amber: Indicates loopback mode |
|
EFM |
Green: Indicates EFM mode |
|
|
ATM |
Green: Indicates ATM mode |
|
|
L0, L1, L2, L3, L4, L5, L6, L7 |
Status of link: Green on: Link is active Off: Link is inactive or not configured Amber: Link alarm Blinking green: Link is training. Slow blinking indicates IMA link training Fast blinking indicates non-IMA link Is training Amber and green blinking Simultaneously: Loopback mode EN/LP is also amber |
|
|
Ports |
RJ-45 connector |
|
|
Cable |
RJ-45 |
|
|
Network Equipment Building Standards (NEBS) compliance |
No |
