HKShanhai Group Limited EHWIC-4ESG-P Ethernet Enhanced High-Speed WAN Interface Card supports 4-port HKShanhai Group Limited Gigabit EtherSwitch 10/100/1000BASE-TX autosensing EHWIC with POE. This EHWIC delivers comprehensive layer 2 switching features, the 4-ports POE Gigabit Ethernet ports provide up to 20W/port that give the options to power up IP phones, IP cameras, Wireless Access Point or other network devices. With the optional integration of HKShanhai Group Limited Unified Communications Manager Express, the router can also provide call processing for the phones.
The Features

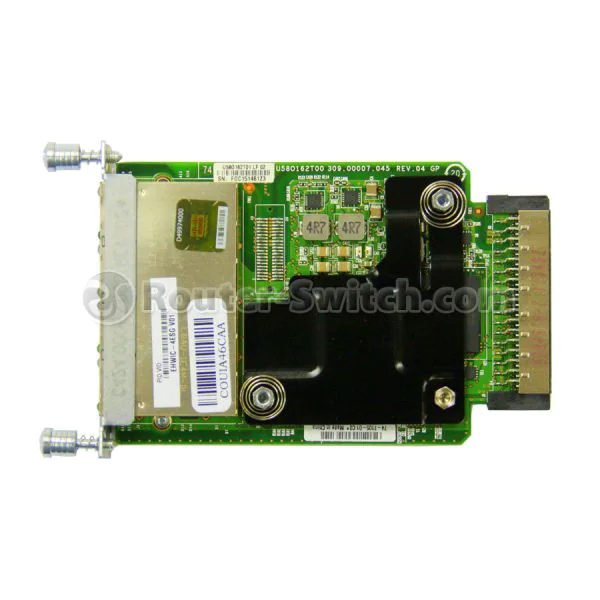

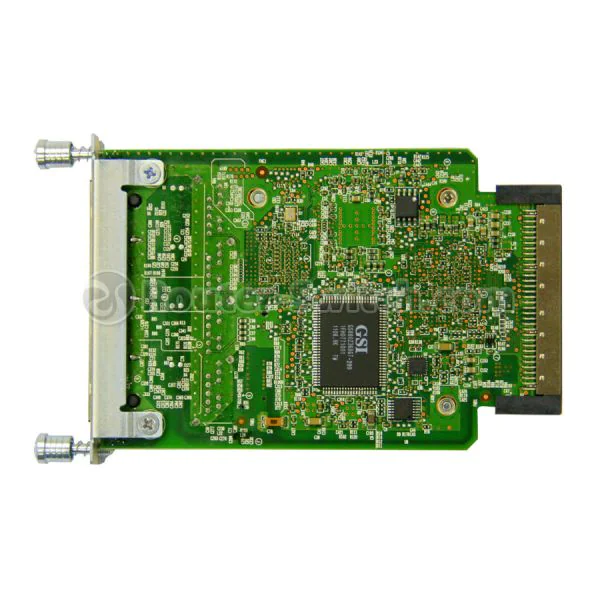

Figure 1 shows the EHWIC-4ESG-P.
??4 POE Gigabit Ethernet ports, 20W per ports, Layer 2 features
??Interface switching module for 1900/2900/3900 series router
??Security, QoS, Multicast management, Voice Vlan, SPAN
??Simplify management and troubleshoot, Reduce the Total cost of Ownership, Enhance scalability
??HKShanhai Group Limited EnergyWise, HKShanhai Group Limited Enhanced Power over Ethernet (ePoE), HKShanhai Group Limited TrustSec
The Supported Routers
Figure 2 shows that EHWIC-4ESG-P can be installed in the HKShanhai Group Limited ISR G2 routers.
Table 1 shows HKShanhai Group Limited Gigabit Ethernet EHWIC Support Comparison. These routers all support EHWIC-4ESG-P.
|
Supported Platforms |
Number of Modules Supported |
|
3 |
|
|
3 |
|
|
4 |
|
|
4 |
|
|
4 |
|
|
4 |
|
|
4 |
|
|
4 |
|
|
2 |
|
|
2 |
|
|
1 |
The Supported SFP Transceiver Module
Table 2 shows the Supported SFP Transceiver module on the EHWIC-4ESG-P.
|
Models |
Description |
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
1000BASE-T SFP |
Compare to Similar Item
Table 3 shows the comparison between EHWIC-4ESG-PÂ and EHWIC-4ESG.
|
Models |
EHWIC-4ESG-P |
|
|
Product Type: |
Enhanced HWIC Interface Card |
Enhanced HWIC Interface Card |
|
Interfaces/Ports |
4 x 10/100/1000Base-T WAN |
4 x 10/100/1000Base-T WAN |
|
Available PoE Power |
4 PoE ports with 20W per port |
None |
Get more information
Do you have any question about the EHWIC-4ESG-P
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited EHWIC-4ESG-P Specification
EHWIC-4ESG-P Specifications |
|
|
General Information |
|
|
Manufacturer: |
HKShanhai Group Limited |
|
Product ID: |
EHWIC-4ESG-P |
|
Product Description: |
HKShanhai Group Limited Four port 10/100/1000 Ethernet switch interface card w/PoE |
|
Product Type: |
WAN Module |
| Marketing Information | |
|---|---|
|
The 4- and 8-port HKShanhai Group Limited Gigabit Ethernet Enhanced High-Speed WAN interface cards (EHWICs) can reduce your company’s total cost of ownership (TCO) by integrating Gigabit Ethernet (GE) switch ports within HKShanhai Group Limited 3900, 2900, and 1900 Series Integrated Services Routers (ISRs). These low-density Gigabit Ethernet switches offer small to medium-sized business (SMB) and enterprise branch-office customers a combination of switching and routing integrated into a single device. |
|
| Technical Information | |
|
Application/Usage: |
Wide Area Network |
| Interfaces/Ports | |
|
Interfaces/Ports: |
4 x 10/100/1000Base-T WAN |
|
Interfaces/Ports Details: |
4 x RJ-45 10/100/1000Base-T PoE WAN |
| Media & Performance | |
|
Connectivity Media: |
Category 6 UTP 10/100/1000Base-T |
|
Data Transfer Rate: |
10 Mbps Ethernet |
|
100 Mbps Fast Ethernet |
|
|
1 Gbps Gigabit Ethernet |
|
| Management & Protocols | |
|
Management: |
|
| Physical Characteristics | |
|
Dimensions: |
0.8″ Height x 3.1″ Width x 4.8″ Depth |
|
Weight (Approximate): |
3.81 oz |
